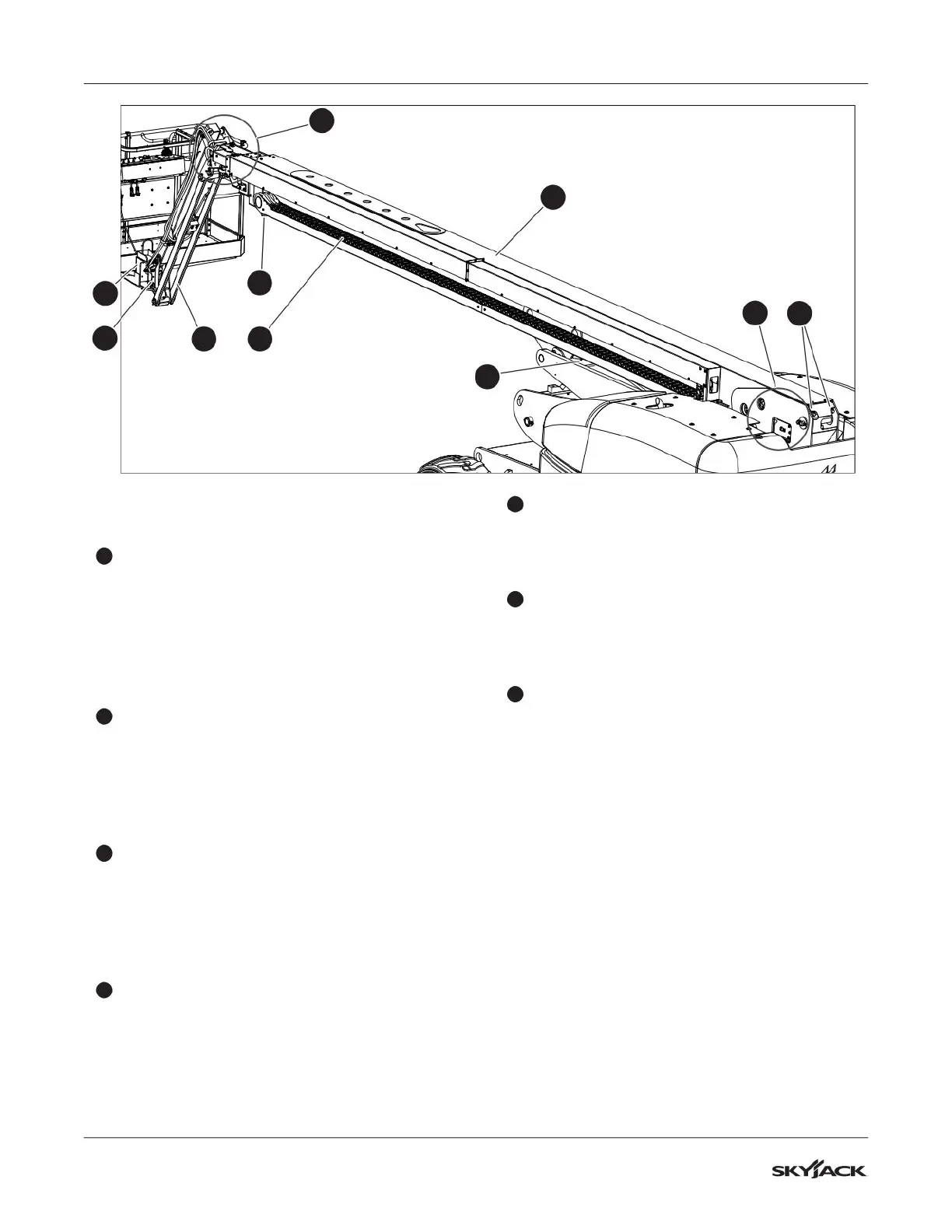

Section 4 – Inspections Before Operation Visual and daily maintenance inspections
4.2-9 Boom assembly
Do the inspection that follows, and make sure:
1
Load cell
▪
There are no loose or missing parts, and there
is no visible damage.
▪
All fasteners are correctly tightened.
▪
All cables are in good condition and not loose.
▪
There is no debris between the platform and
the boom adaptor.
2
Rotary actuator
▪
There are no loose or missing parts, and there
is no visible damage.
▪
All fasteners are correctly tightened.
▪
All hoses are correctly tightened and there is
no sign of hydraulic leakage.
3
Jib (optional equipment)
▪
There are no loose or missing parts, and there
is no visible damage.
▪
All fasteners are correctly tightened.
▪
All hoses are correctly tightened and there is
no sign of hydraulic leakage.
4
Cable Track
▪
There are no loose or missing parts, and there
is no visible damage.
5
Cylinders
▪
Make sure the cylinders are correctly installed.
▪
Make sure there is no indication of leaks or
damage.
6
Wear pads
▪
All fasteners are correctly tightened.
▪
There are no loose or missing parts, and there
is no visible damage to the wear pads.
7
Boom
▪
There are no loose or missing parts, and there
is no visible damage.
▪
All fasteners are correctly tightened.
▪
All hoses are correctly tightened and there is
no sign of hydraulic leakage.
Hoses
▪
All hoses are correctly tightened and there is
no sign of hydraulic leakage.
