213205AAA SJ82 T, SJ86 T
26
Section 3 – Familiarization Control functions

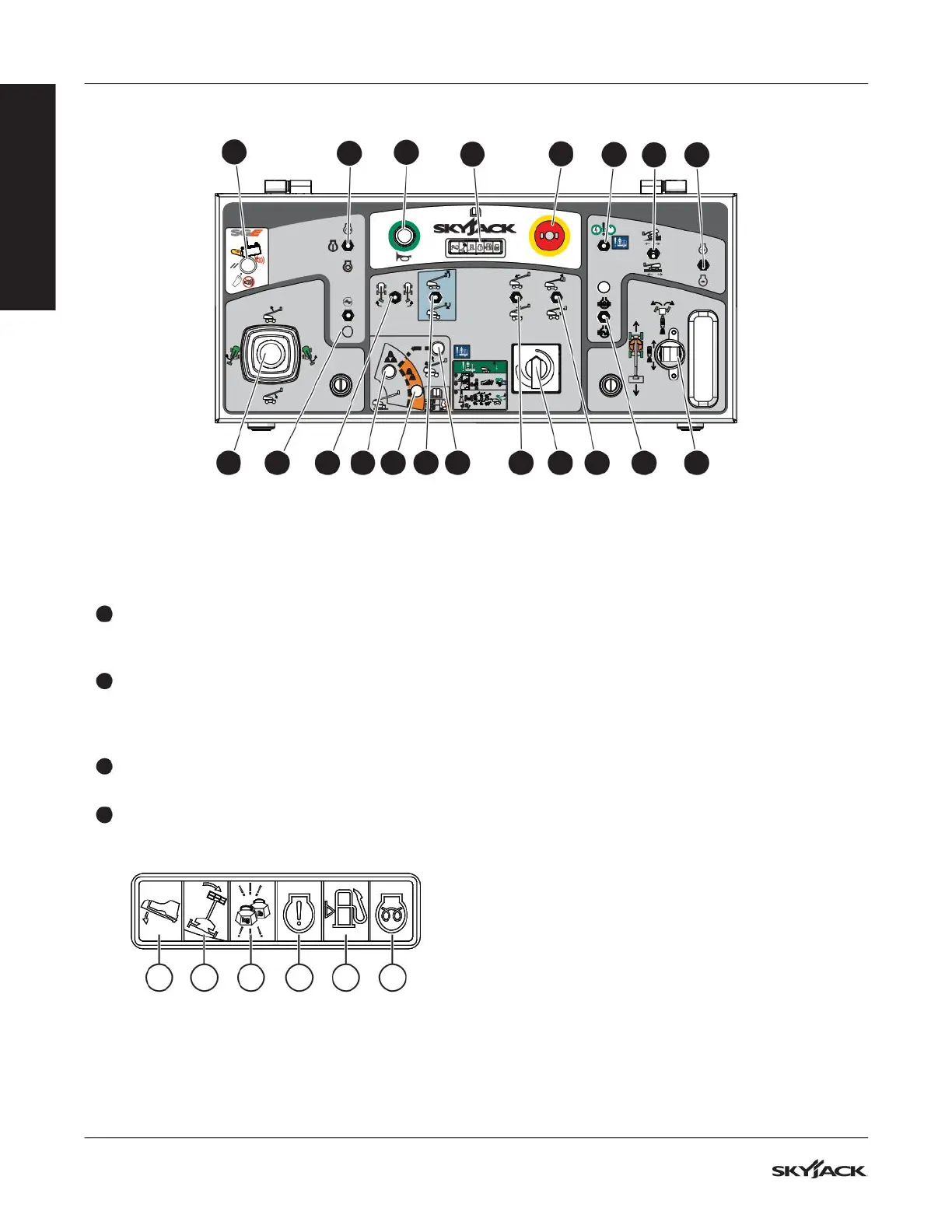

3.3-4 Platform control console
Refer to Section 3.1 for the location of the platform
control console.
1
Secondary guarding electrical (SGE) reset
(optional equipment): This button, when
pressed, stops the SGE audible/visual alarm.
2
Engine start/on/off: In the start position, this
switch starts the engine. When the engine starts,
this switch goes back to the on position. In the
off position, this switch stops the engine.
3
Horn: This push-button makes a sound like a car
horn.
4
Status indicator pilot lights: These lights show
the operation condition and errors in the control
or engine functions.
A B C D E F
A. Footswitch: This light illuminates when the
footswitch is pressed. A 15-second anti-
tiedown feature prevents the footswitch
operation when the operator presses it
for 15 seconds without the activation of a
function.
B. Chassis tilt: This light illuminates when
the MEWP chassis is at an inclination that
activates the tilt switch. At this inclination,
an alarm will make a sound at the platform.
Refer to Section 6.2 for instructions on
recovery from an inclined position.
C. Overload: This red light shows an overload
status. Refer to Section 3.4-5.
D. Engine: This light shows a failure in the
engine control system.
E. Fuel: This light shows a low fuel level.
F. Glow plug: This light illuminates until the
glow plugs complete their timed-cycle. When
the light goes off, you can start the engine.
FAMILIARIZATION
TM
1
3
4
+
STOP
=
2
+
1
2
3
4
5
6
7 8
91011131214151617181920
