SJ82 T, SJ86 T 213205AAA
75
Move the MEWP for transport Section 6 – Additional Procedures
6.6-2 Hoist the MEWP
WARNING
Only qualied riggers must operate the machinery
during a lift.
1. Rotate the boom and position the MEWP as
shown in Figure 05.
2. Turn the main power disconnect switch to the
off position.
3. Remove all personnel, tools, and materials from
the platform.
WARNING
When you hoist the MEWP, the lifting devices must
be attached to the designated lift points only.
WARNING
Use chains with a load capacity sufcient to
withstand the MEWP weight. Refer to the serial
plate of the MEWP for the specied weight.
4. Attach the rigging to all four lift points as shown
in Figure 05.
5. Adjust the rigging to make sure the MEWP stays
level when you hoist it. Refer to Figure 05 for the
center of gravity location.
NOTE
Horizontally, the center of gravity is approximately in the middle of the MEWP, front to rear and side to side.
Vertically, the center of gravity is approximately a small distance above the chassis.

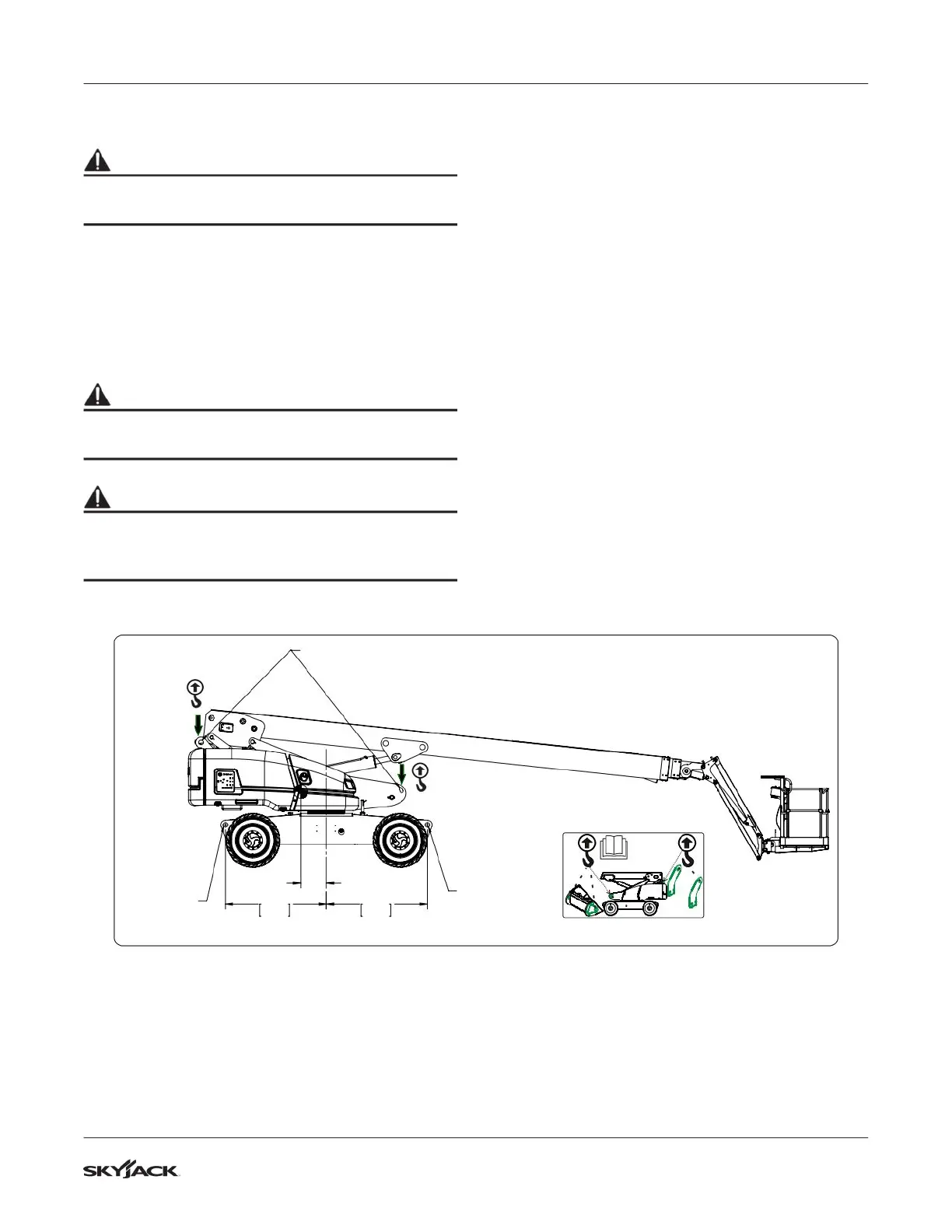

Figure 05 Lift points and approximate center of gravity
77in
1.95m
77in
1.95m
X
C
L
LIFTING POINTS
TRANSPORT
TIE-DOWN POINTS
TRANSPORT
TIE-DOWN POINTS
X (81/86T) = 20 " (508mm)
LIFTING POINTS
