9.2 Pneumatic Module

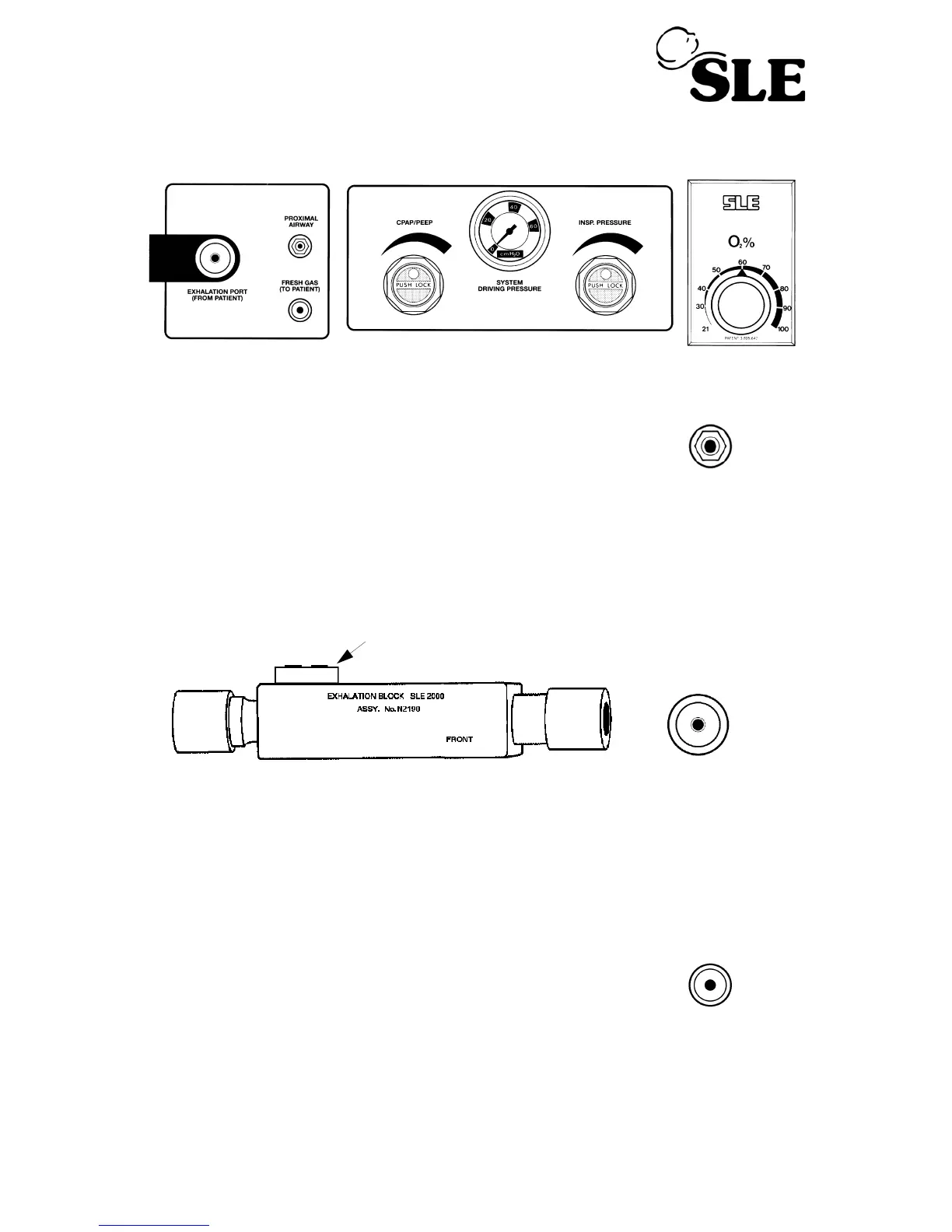

9.2.1 Proximal Airway
Input from patient ET connector to pressure display and internal
pressure transducers.
9.2.2 Removable Exhalation Block N2190
Can be removed easily for cleaning by lowering side panel.
9.2.3 Fresh Gas Port
The Fresh Gas port supplies 5 LPM of the blended gas via the
humidifier to the patient inspiratory port on the ET connector
when the ventilator is switched on.
