9.2.4 Regulator and Pressure Gauges.

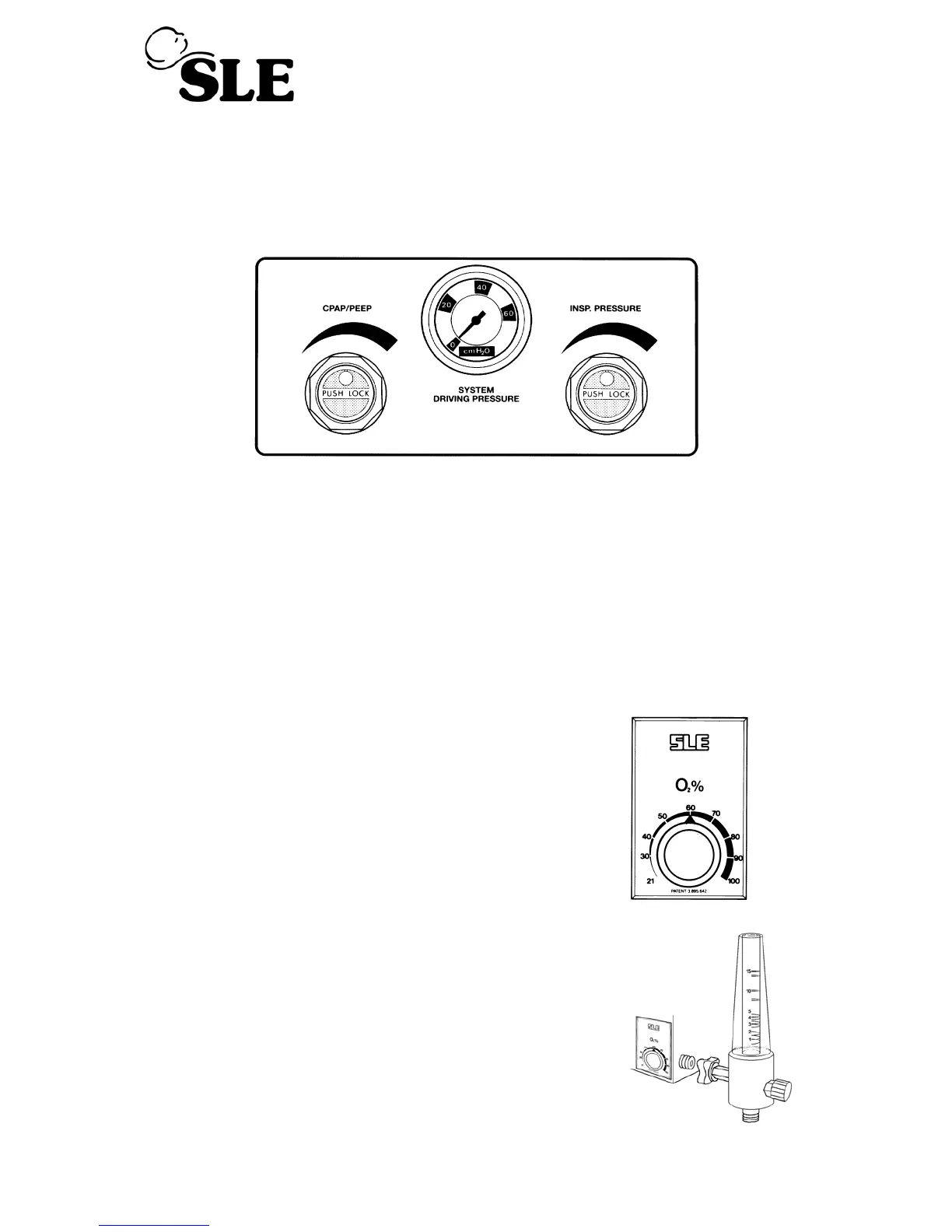

• These 2 pressure regulator controls have push/pull locking caps.
CPAP/PEEP
This regulator controls the base pressure in the circuit.
INSP. PRESSURE
This regulator controls the peak inspiratory pressure (PIP).
SYSTEM DRIVING PRESSURE
This guage shows the pressure above CPAP/PEEP.
9.2.5 O
2
Blender (% FlO
2
)
The oxygen blender controls the amount of oxygen available
in the fresh gas supply. The blender is monitored separately
by an internal analyser and displayed on the FlO
2
digital
display.
There is an option (Option 3) for a blended gas output
connected on the side of the unit.
Note: This output provides up to 15 LPM Blended gas
controlled by the O
2
% control
