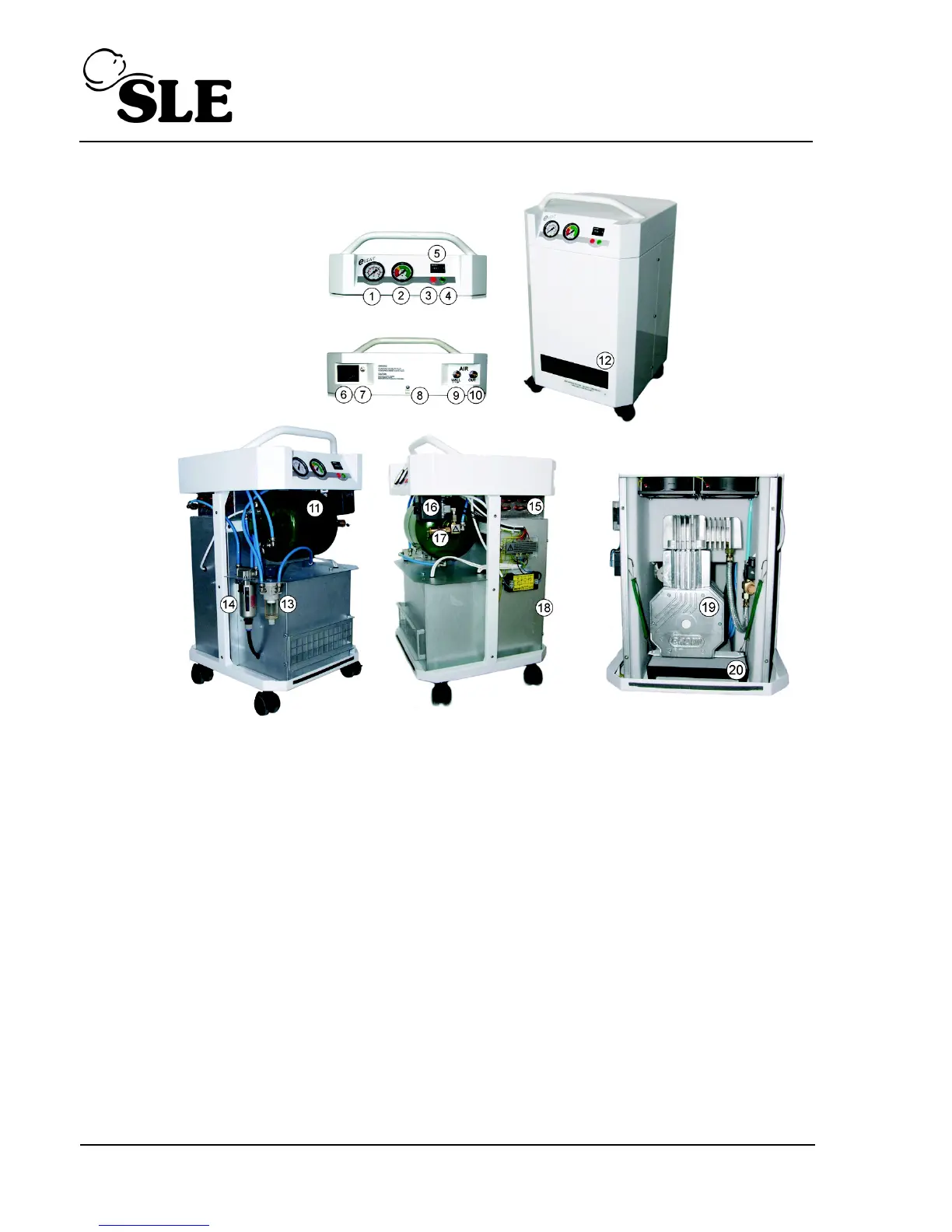

3. Description of compressor
(1) PRESSURE - the output air (16) Pressure switch
pressure manometer (17) Safety valve
(2) HUMIDITY - the humidity (18) Internal back cover
indicator (performance) (19) Air pump
(3) Cooling failure indicator (20) Evaporative tray
(4) Power indicator
(5) Hour meter
(6) Main input, power switch, primary fuses
(7) Equipotential pin
(8) Socket for the supply lead
(9) WALL - input air coming from another
pressure air source (for example central distribution)
(10) OUT - output air from compressor
(11) Pressure tank
(12) Air intake filter
(13) Pressure regulator with microfilter
(14) Filter and water trap
(15) Cooler
