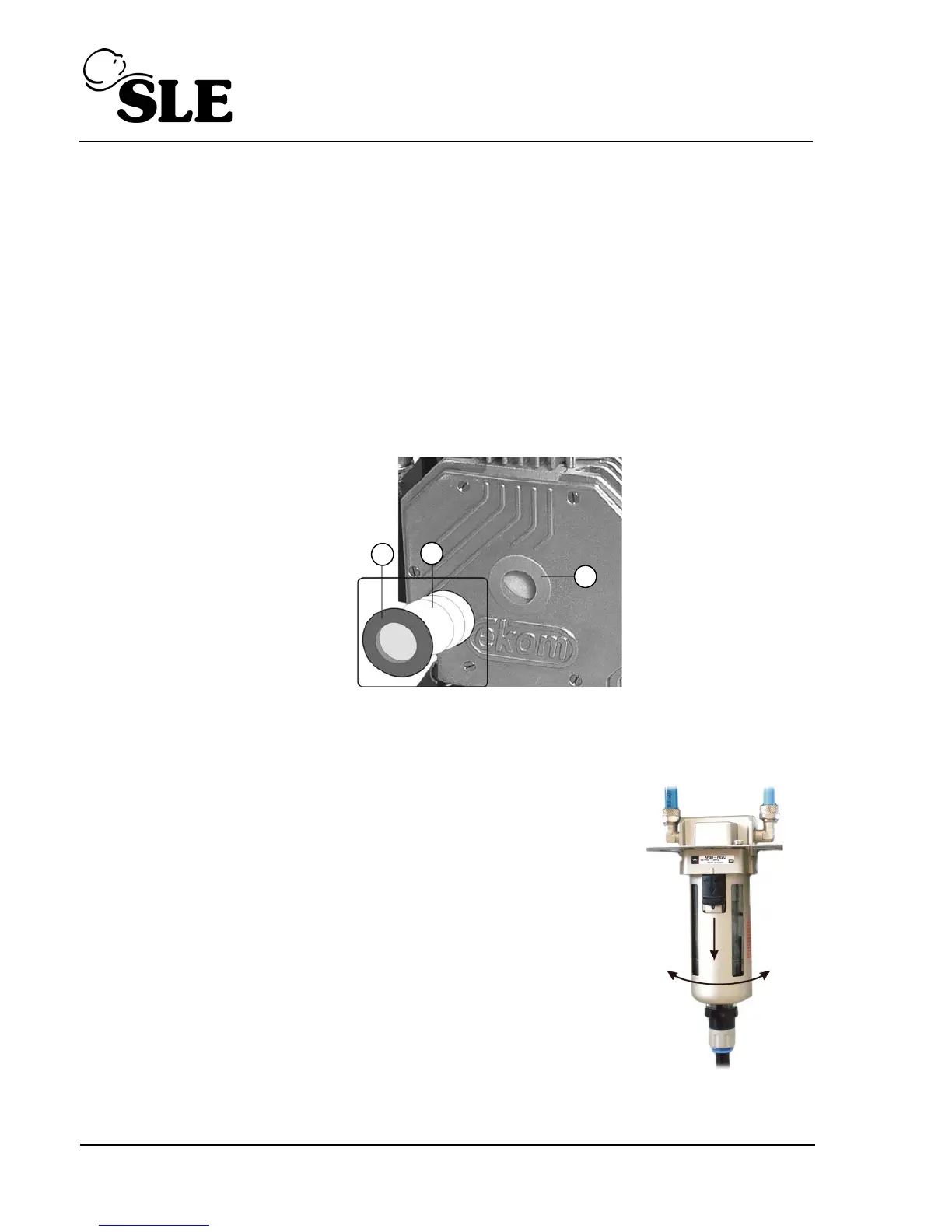

8.6 Replacement of filter inserts
These filter inserts are in the top – cover of crank case of the compressor.
In normal operation of the compressor, it is necessary to replace the set of inlet
filtration beds once a year.
• Using screwdriver, remove the flexible guard (1).
• Remove the used and contaminated filters (2) with the use of a screwdriver.
• Insert a new set of filtration pads.
• Replace the flexible guard in the opening.
8.7 Replacement of filter in blow filter
• Loosen lock on filter by pulling it down.
• Slightly turn the cover of the filter and pull it off.
• Remove the holder of filter.
2
1
1
