4.3 Placing of the compressor

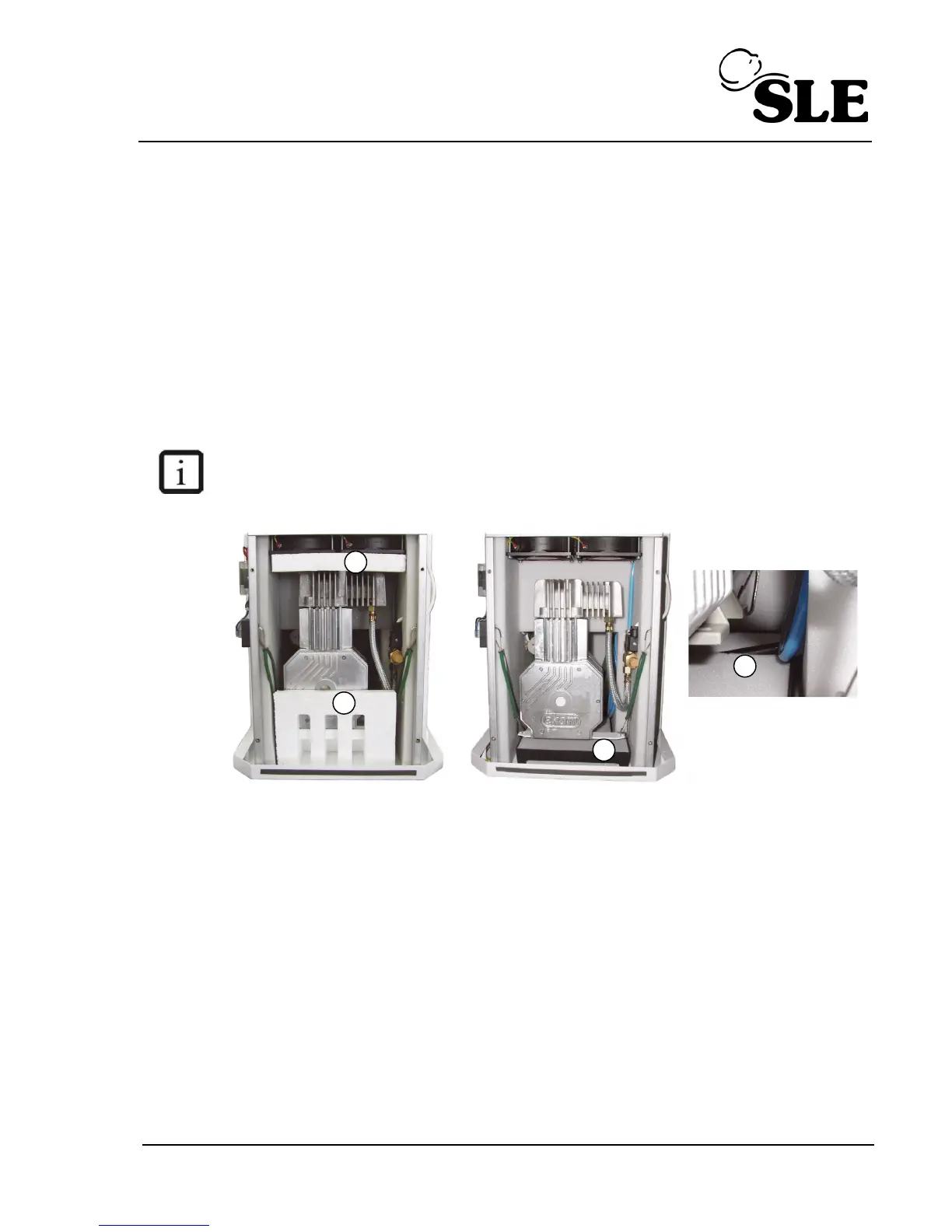

After unpacking, place the compressor upright with the castor wheels firmly on
the ground.
• Remove the front and back covers, unscrewing 6 screws on the side of
cabinet.
• Unscrew the four screws and remove the internal back cover.
• Remove all fixing elements (1) above and under the compressor.
• Insert the packaged evaporative tray (2) into the base.
• Insert the hose into the cut of the foam (3).
• Screw the internal back cover, connect the ground wire, screw the front and
back cover and insert the filter.
Please retain the fixing elements for future transportation of the compressor.
