SLE SLE4000 - Page 44

Page 44 (Model K)
9.1.1 N0288/01 blender manifold block

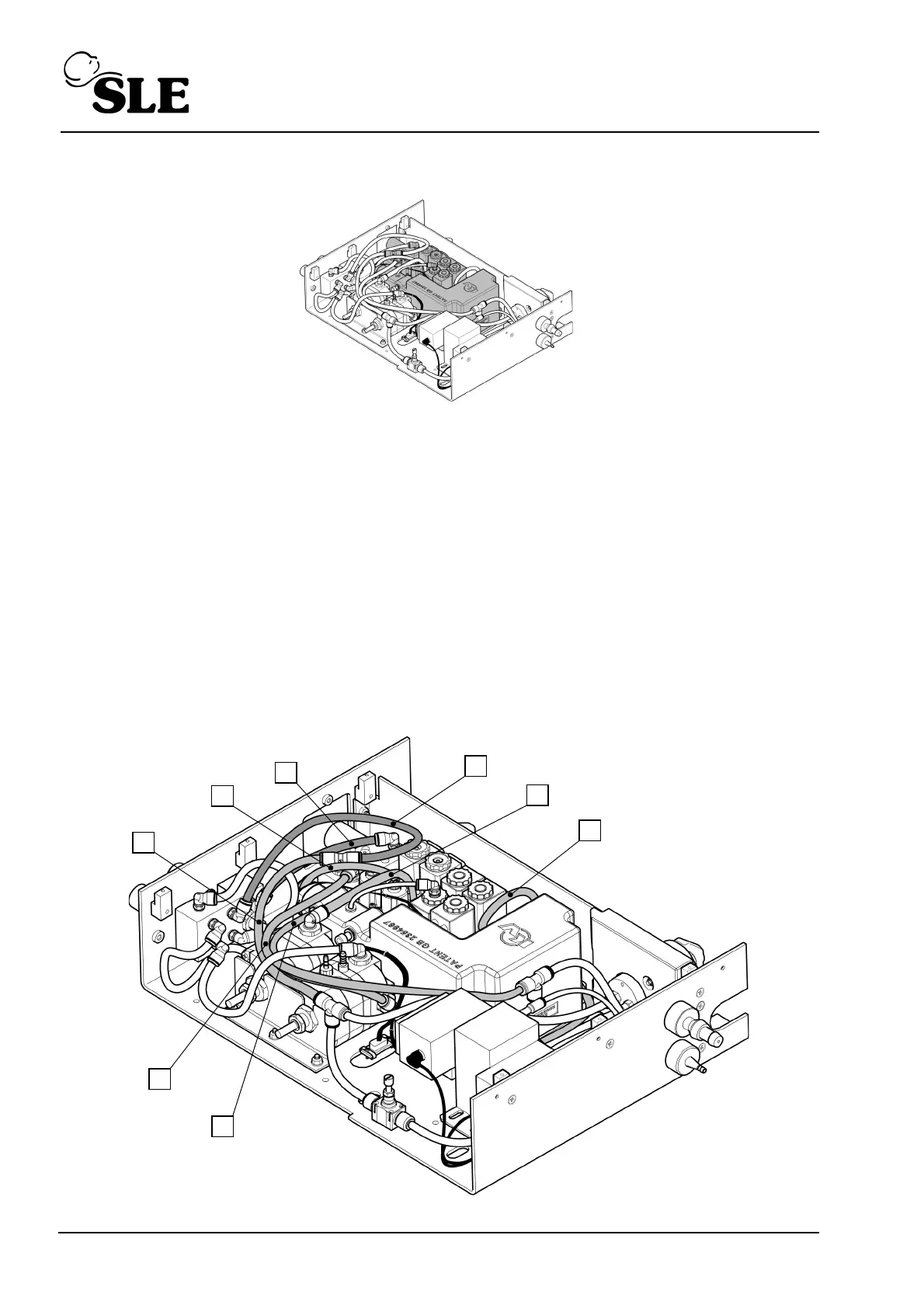

Location in pneumatic unit
Part number: N0288/01
1. Disconnect and remove the following tubes:
(A) fresh gas supply tube,
(B) fresh gas dump tube,
(C) O
2
cell sample dump tube,
(D) fresh gas to PRV1 tube,
(E) blender O
2
supply tube,
(F) forward jet supply tube,
(G) air inlet tube,
(H) proximal airway bleed tube.
B
F
C
D
H
A
E
G
