(Model K) Page 45

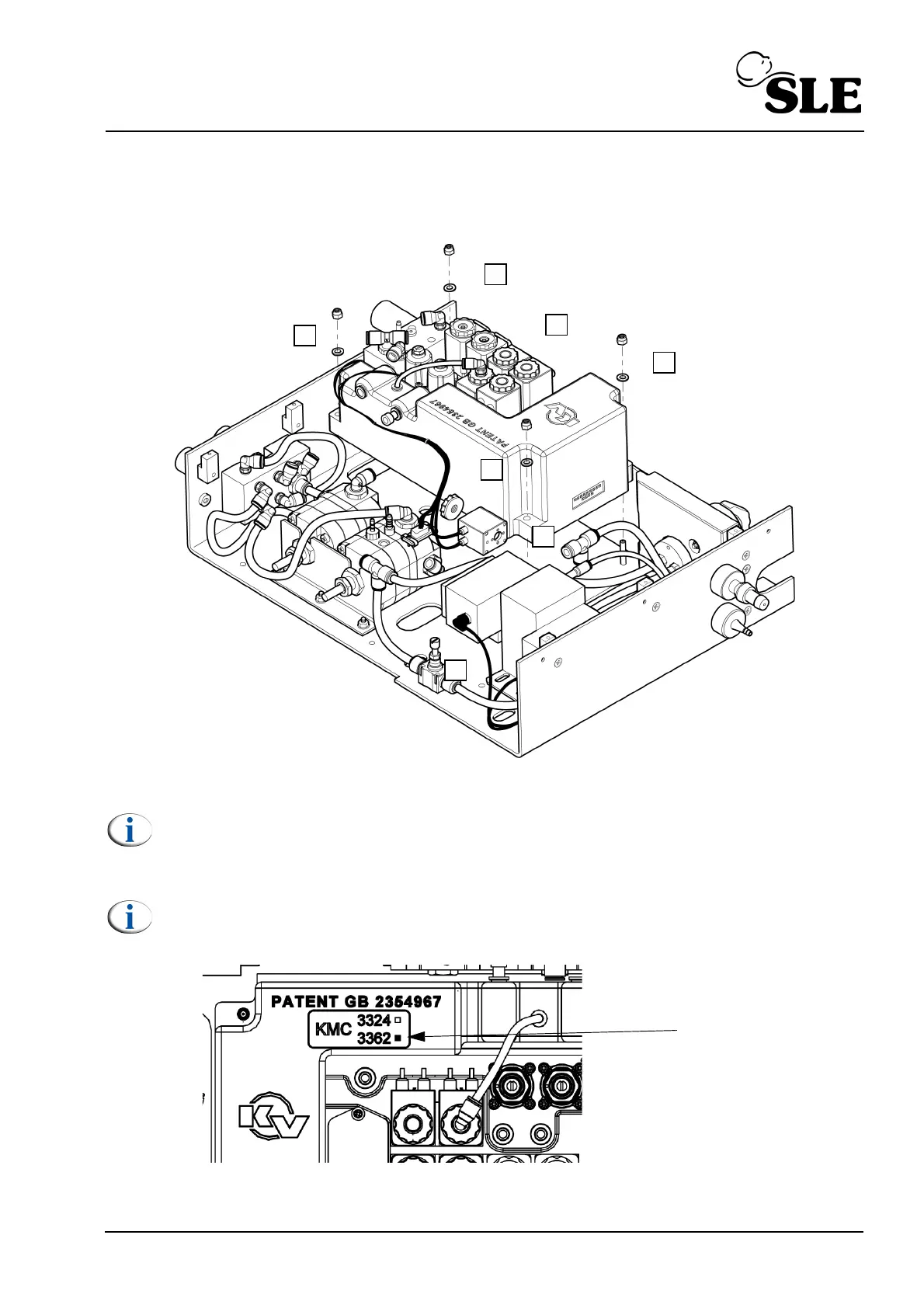

2. Remove the nuts and washers (I) to release the blender manifold assembly (J).
3. Remove the solenoid coil (K) from the solenoid base on the pressure regulator assembly
(L).
4. Lift the manifold assembly (J) off the four chassis studs.
Note: Leave the old oxygen cell fitted to the assembly. This is to stop any debris
entering the oxygen cell manifold.
4. Assembly is reversal of removal.
Note: Ensure that the replacement blender manifold is marked KMC3362, via
the red dot.
Setup: Pneumatic setup and full system calibration is required for this component.
