SMA STRING-COMBINER DC-CMB-U15-16 - Drilling Template for Mounting

17
Installation Manual
SMA Solar Technology AG
DC-CMB-IA-U15-xx-en
5 Assembly

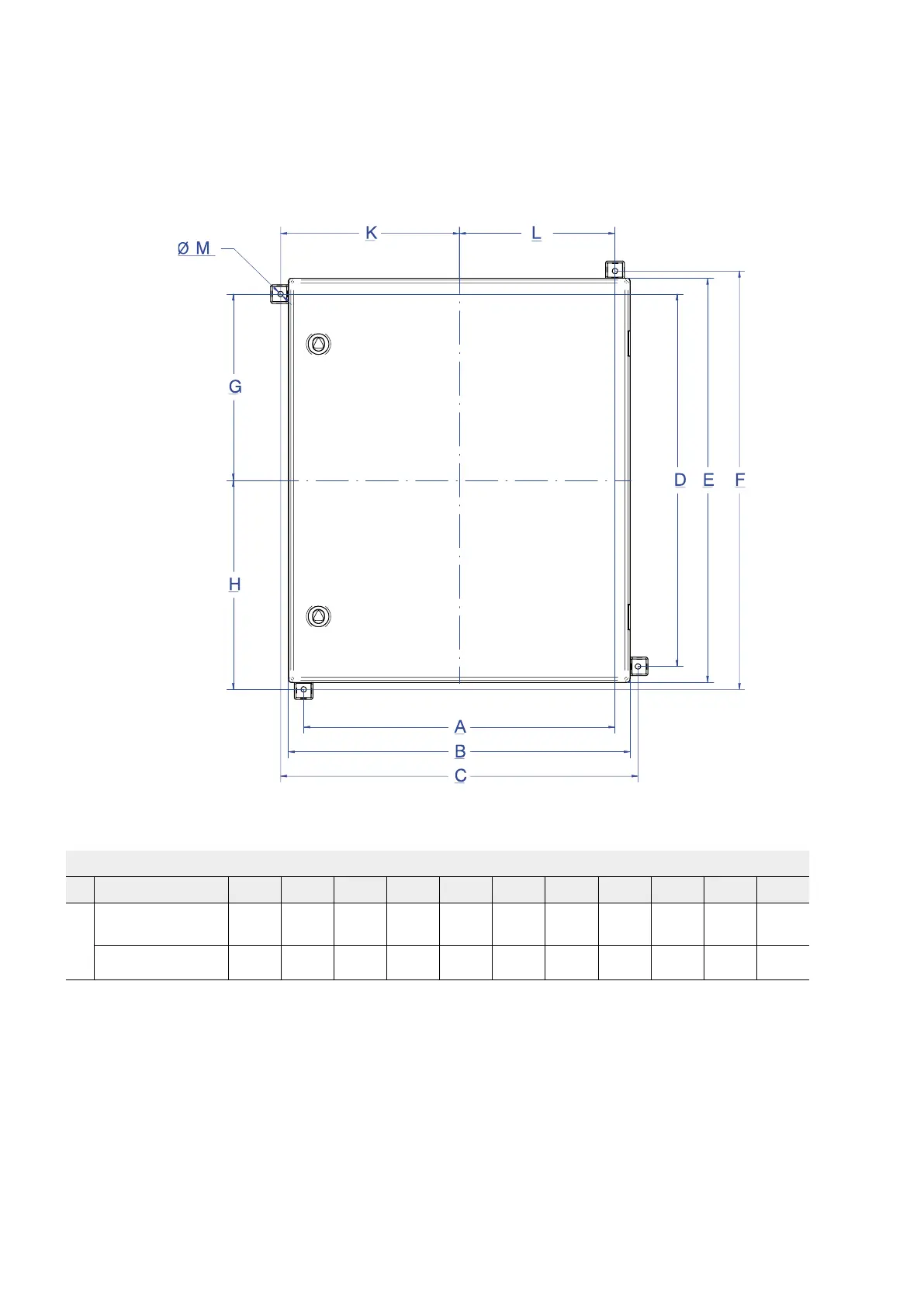

5.2 Drilling Template for Mounting
Figure 7: Dimension
Dimension (mm)
A B C D E F G H K L M
MODELS
DC-CMB-U15-16
DC-CMB-U15-24
498 550 575 599 650 675 299.5 337.5 287.5 249 8
DC-CMB-U15-32 494 618 634 696 822 836 348 418 317 247 8
