6 Electrical Connection
6.7 Assembly of the Connection
6.7.1 Two Terminal Lugs

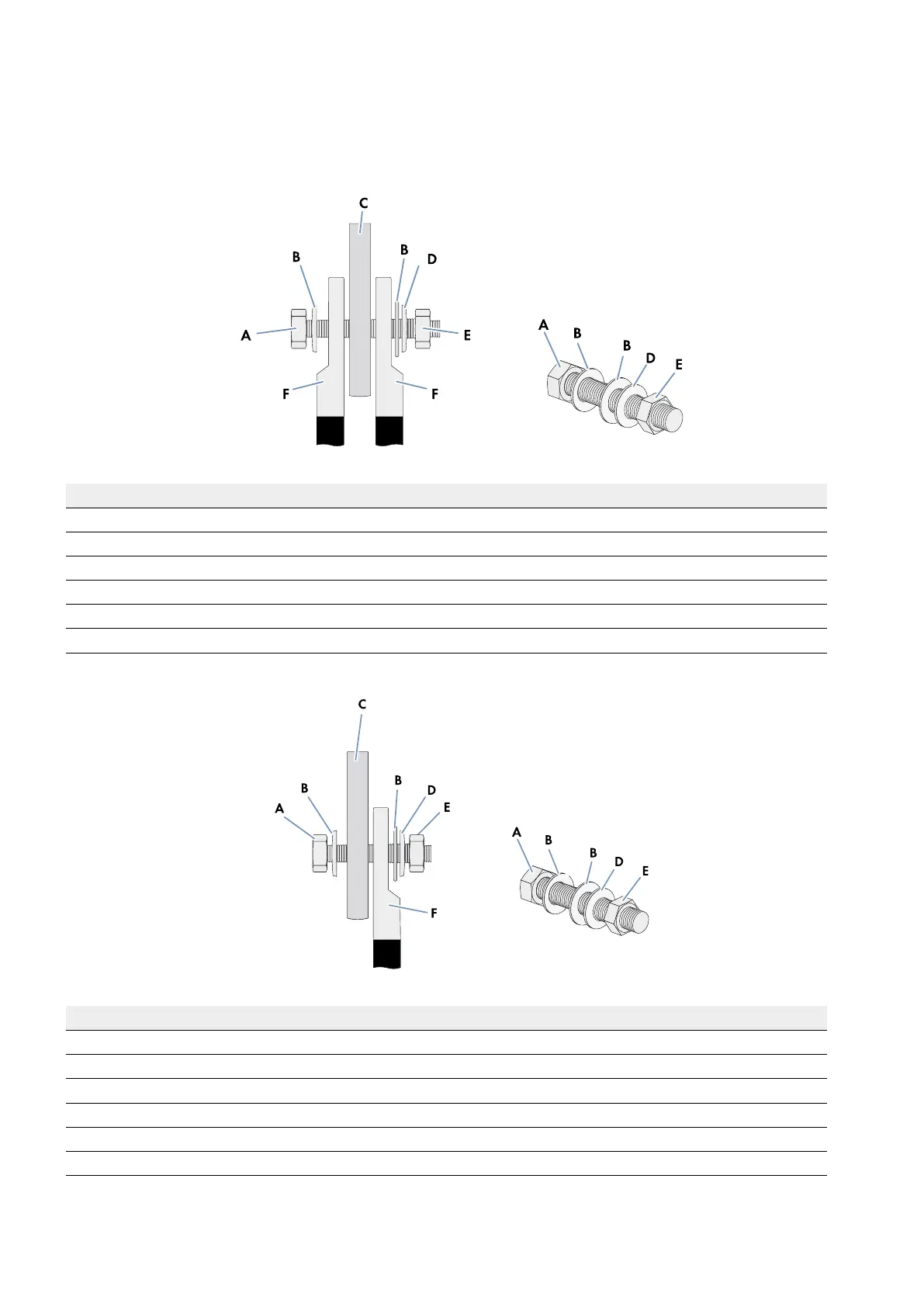

Figure 14
Position Designation
A Screw M12x35
B Washer
C Copper busbar
D Spring washer
E Nut M12
F Terminal lug
6.7.2 One Terminal Lug
Figure 15
Position Designation
A Screw M12x35
B Washer
C Copper busbar
D Spring washer
E Nut M12
F Terminal lug
