SMA STRING-COMBINER DC-CMB-U15-16 - Inserting the Cables into the Switch Cabinet DC-CMB-U15-32

23
Installation Manual
SMA Solar Technology AG
DC-CMB-IA-U15-xx-en
6 Electrical Connection
6.3.5 Inserting the Cables into the Switch Cabinet DC-CMB-U15-32

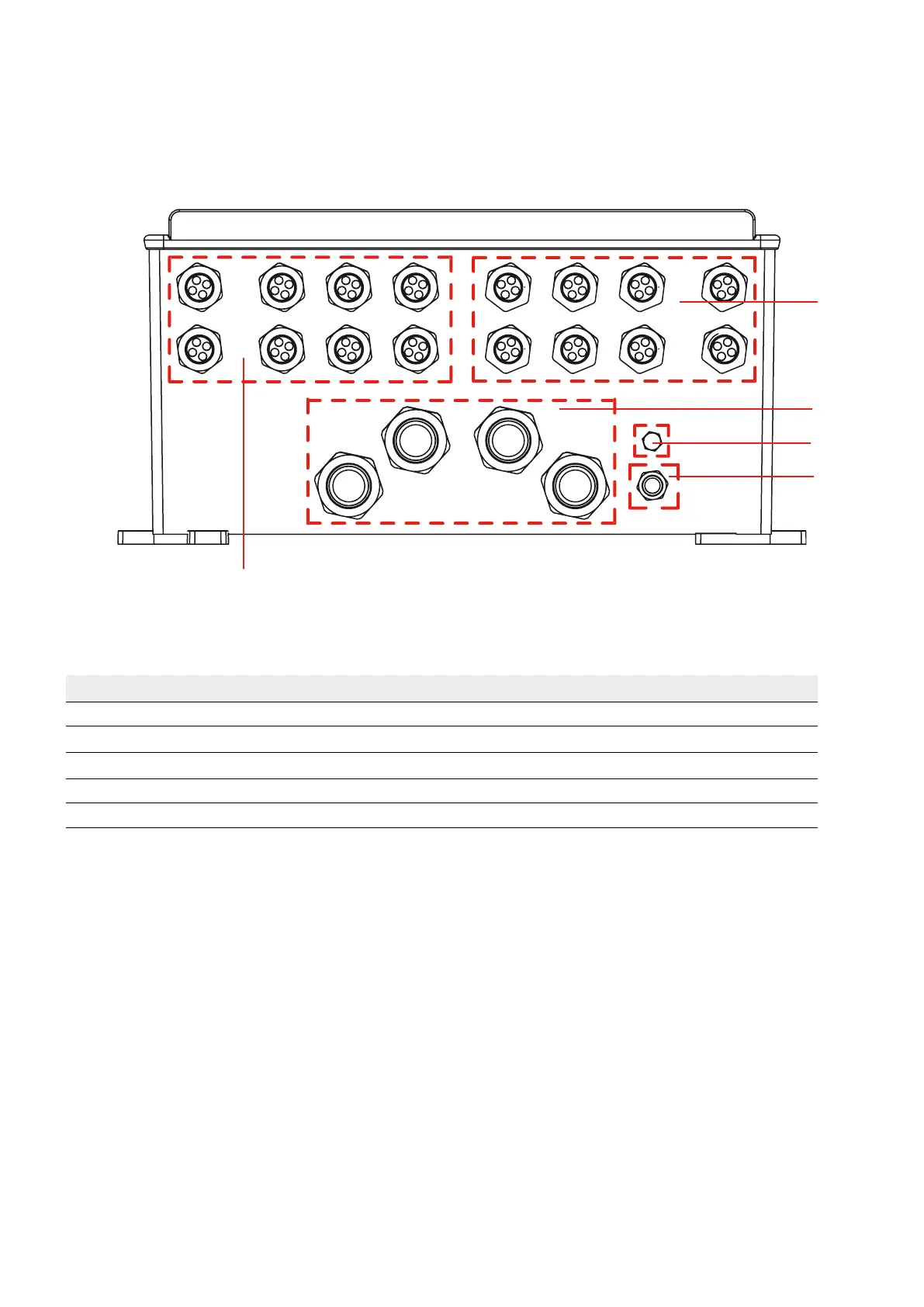

Figure 12: Bottom view of Combiner Box with cable glands (example)
Position Designation
A Cable entry for connecting the strings (positive terminal)
B
Output DC cable gland
C
Grounding cable gland
D Protective vent
E Cable entry for connecting the strings (negative terminal)
A
D
C
B
E
