SMART 450 - Rear Connection Panel; Left-Side Connection Panel

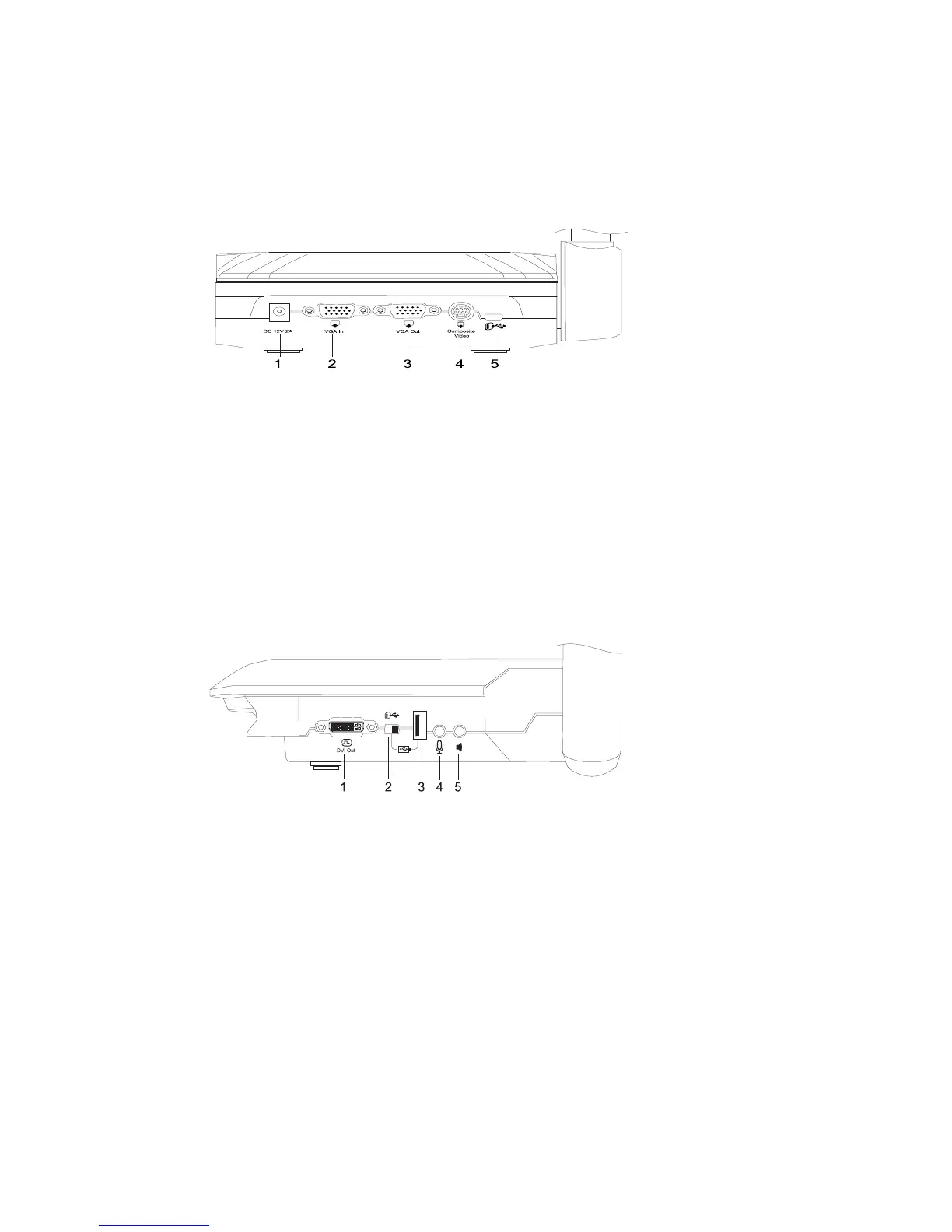

Rear connection panel
The rear connection panel has DC 12V 2A, VGA In, VGAOut, Composite Video Out and USB mini-B
connectors.
1 Connect the power cable
2 Connect a VGA output connector of a computer
3 Connect any display device with a VGA cable
4 Connect the supplied composite video adapter cable
5 Connect a USB connector of a computer
Left-side connection panel
The left-side connection panel has a DVI output, a switch for selecting either a computer or a USB
drive, and audio in and out connect.
1 Connect any display device with a DVI cable
2 USB switch
3 Connect a USB drive
4 Connect an external microphone
5 Connect speakers for video playback only
