SMART fortwo 2015 - Fuses; Electrical Fuses; Allocation

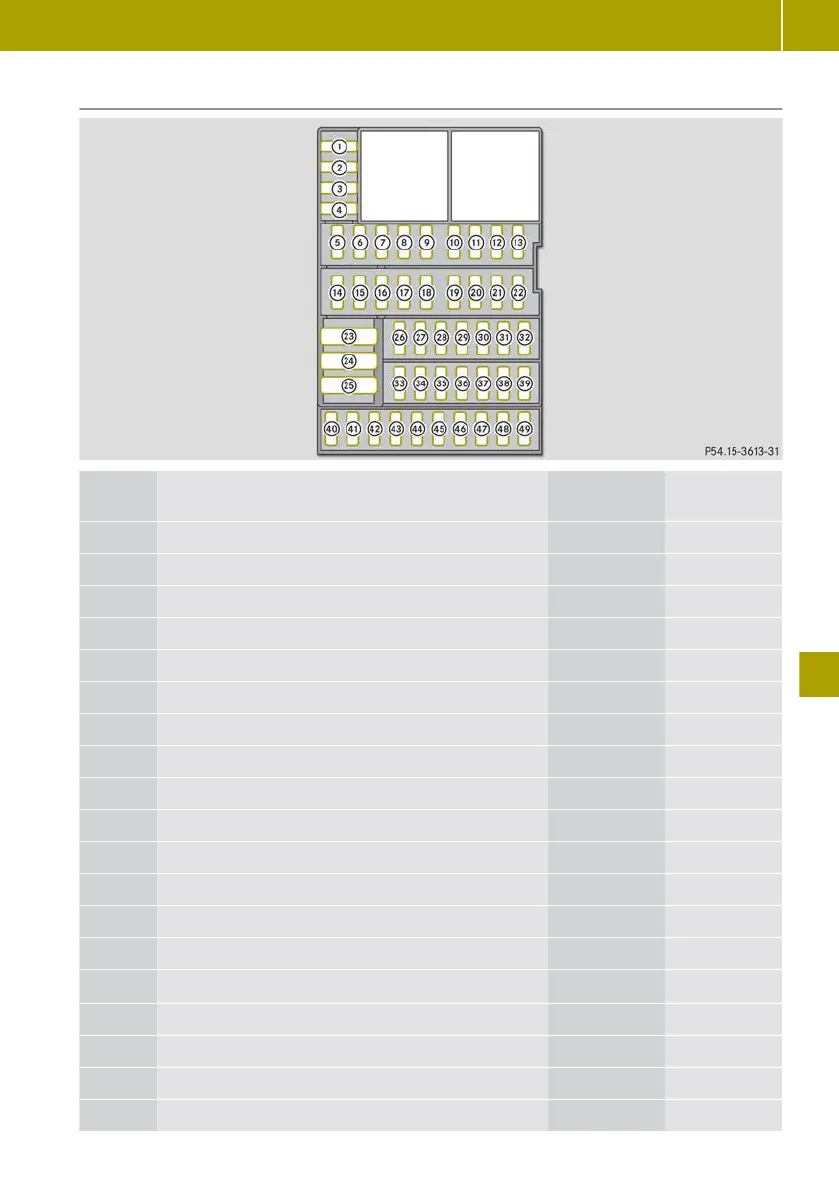

Fuse allocation
No. Consumer Current Colour cod-
ing
1 Starter motor 5 A Brown
2 Power steering control unit 5 A Brown
3 Lighting control unit 5 A Brown
4 Airbag 5 A Brown
5 ‑ ‑ ‑
6 Instrument cluster 10 A Red
7 Horn, alarm system 15 A Blue
8 Control unit power supply 10 A Red
9 Control unit power supply 10 A Red
10 Central control unit 20 A Yellow
11 Turn signals 15 A Blue
12 Central control unit 10 A Red
13 Central control unit 15 A Blue
14 Power windows (automatic reversing feature) 30 A Green
15
ESP
®
5 A Brown
16 Interior lighting 10 A Red
17 Immobiliser 3 A Violet
18 Electrical exterior mirror 5 A Brown
19 Brake lamps 10 A Red
