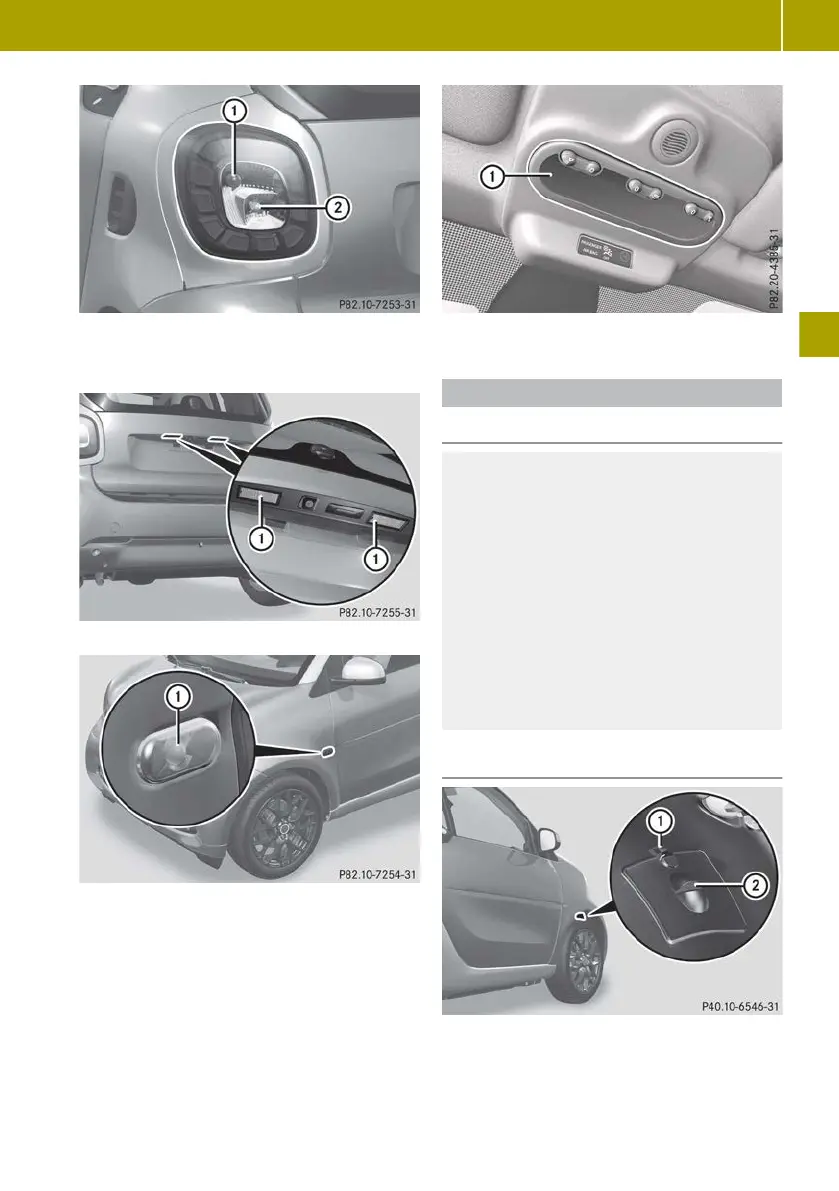

Tail lamps (vehicles with partial LEDs)
:
Turn signal lamp: PY 21 W
;
Reversing lamp: W 16 W
:
Licence plate lighting: W 5 W
:
Side turn signal lamps: WY 5 W
:
Interior lighting: W 5 W
Replacing the front bulbs
Important safety notes
G
WARNING
The radiator fan may continue to move or
suddenly move again even after the engine
is switched off. There is a risk of injury.
If you have to carry out work in the front
compartment:
R
switch off the ignition
R
remove jewellery and watches
R
never touch the rotation area of the fan
R
keep items of clothing and hair, for
example, away from the fan
Turn signals
X
To remove the cover in the front wheel
arch: switch off the lighting system.
X
Turn the front wheels inwards.
X
Press spring clip : down.
X
Slide cover ; back and remove it.
Replacing bulbs
77
>> Lights and windscreen wipers.
