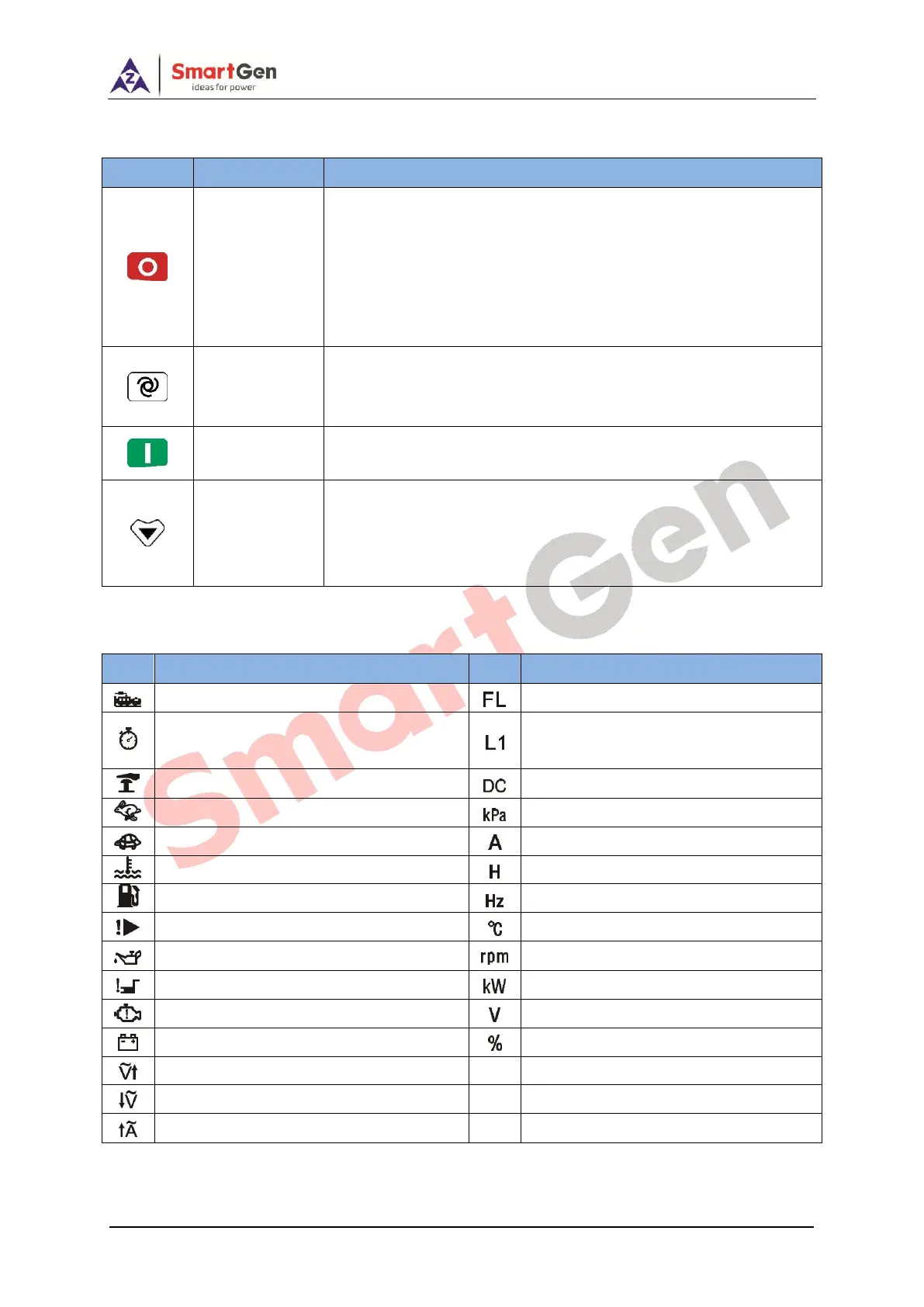

4.3. PANEL KEYS
Table 3 Key Descriptions
Key
Definition
Description
Stop/Reset
In auto/manual mode, press this button will shutdown the genset;
Reset shutdown alarms when genset in alarm status; Indicator
lights and LCD icons status can be tested when press this button
for over 3s in stop mode; Stop immediately if press this button
during stop process; Quick exist parameter setting menu if press
this button.
Auto/Increase
Pressing this button will place the module into its auto mode, and
genset is controlled by remote start signals;
In settings menu moves cursor up and increases the set value.
Start/Decrease
Pressing this button will start genset.
In settings menu moves cursor down and decreases the set value.
Page Down
Using this button you can scroll pages of the LCD monitor;
Enter settings menu if hold and press over 2s;
Move cursor and confirm setting information in parameter setting
menu.
4.4. LCD ICONS
Table 4 LCD Icons
Icon
Definition
Icon
Definition
Genset Start Indication
Fuel Level Indication
Boot time is counting (reaching crank
disconnect condition)
Generator Voltage Indication
Emergency Stop Alarm
Battery Voltage Indication
Over Speed/Over Frequency Alarm
Oil Pressure Unit
Under Speed/Under Frequency Alarm
Current With Load Unit
High Temp. Alarm
Hours Count
Low Fuel Level
Frequency Unit
Auxiliary Alarm
Temperature Unit
Low Oil Pressure
Speed Unit (revolutions per minute)
Fail to Start
Active Power Unit
Fail to Stop
Voltage Unit
Voltage Abnormal
Percentage
Over Voltage
Under Voltage
Over Current With Load
