4.4.5 Output Mode
Configure the parameters for video output signals, including pre-output mode and encoded output
mode.
Pre-output: Picture mode for local preview, including channel name, time title, channel title, recording
status, alarm status, video streaming, transparency, area coverage;
Encoded output: Picture mode for network monitoring and video file, including channel name, time title,
channel title, recording status, alarm status, video streaming, transparency, area coverage, time title and
channel title.

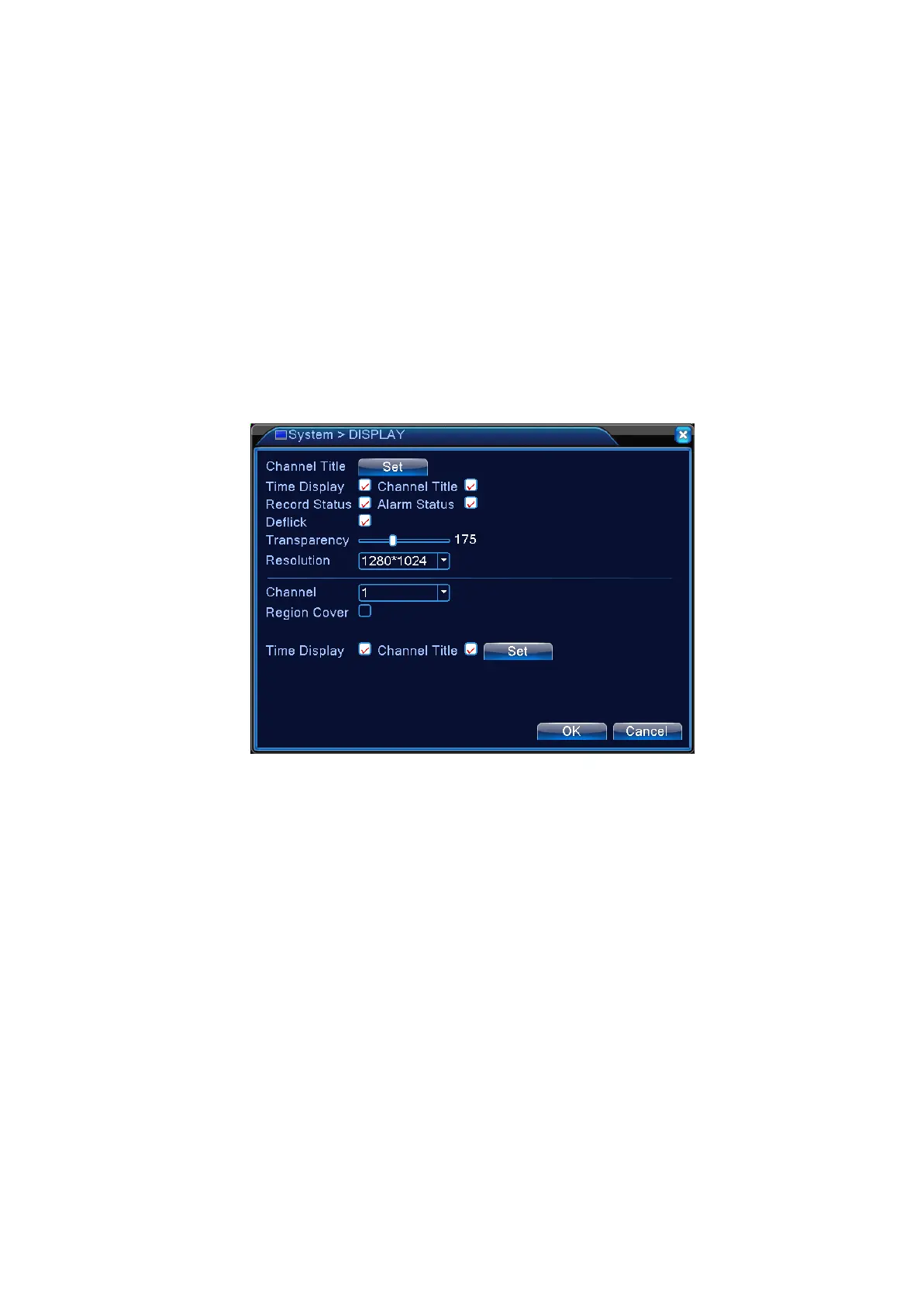

Figure 4.31 Output Mode
【Channel Title】Click channel name Change button to enter channel name menu and change
Channel Name (support up to 16 Chinese characters or 25 English alphabet letters)；
【Time Display】Highlight ■ sign to display system date/time on monitoring screen；
【Channel Title】Highlight ■ sign to display system channel number on monitoring screen；
【Record Status】Highlight ■ sign to display system recording status on monitoring screen；
【Alarm Status】Highlight ■ sign to display system alarm status on monitoring screen；
【Video Streaming Information】Highlight ■ sign to display video streaming information on the 9th
screen in 9-screen preview；
【Transparency】Select the transparency of the background image ranging from 128~255；
【Resolution】Set display resolution；
【Channel】Select channel number to set encoded output；
【Region Cover】Highlight . Select Area Coverage number button and click Set button to enter
the corresponding channel. User can use the mouse to choose coverage area of any
size (covered areas for video output are displayed as dark blocks）；
