【Function】 Ordinary serial port is used for serial debug and upgrade, as well as certain serial port
peripherals；
【Baud Rate】Select the appropriate baud rate length；
【Data Bits】Available options: 5-8；
【Stop Bits】Two options are 1 and 2；
【Parity】Includes odd parity, even parity, parity flag, none parity.
4.4.8 Auto Sequence Settings
Set screen auto sequence display. Highlight to enable the mode. Available selections include single
mode auto sequence such as single screen, 4-screen, 9-screen, and 16-screen or mixed mode auto
sequence.

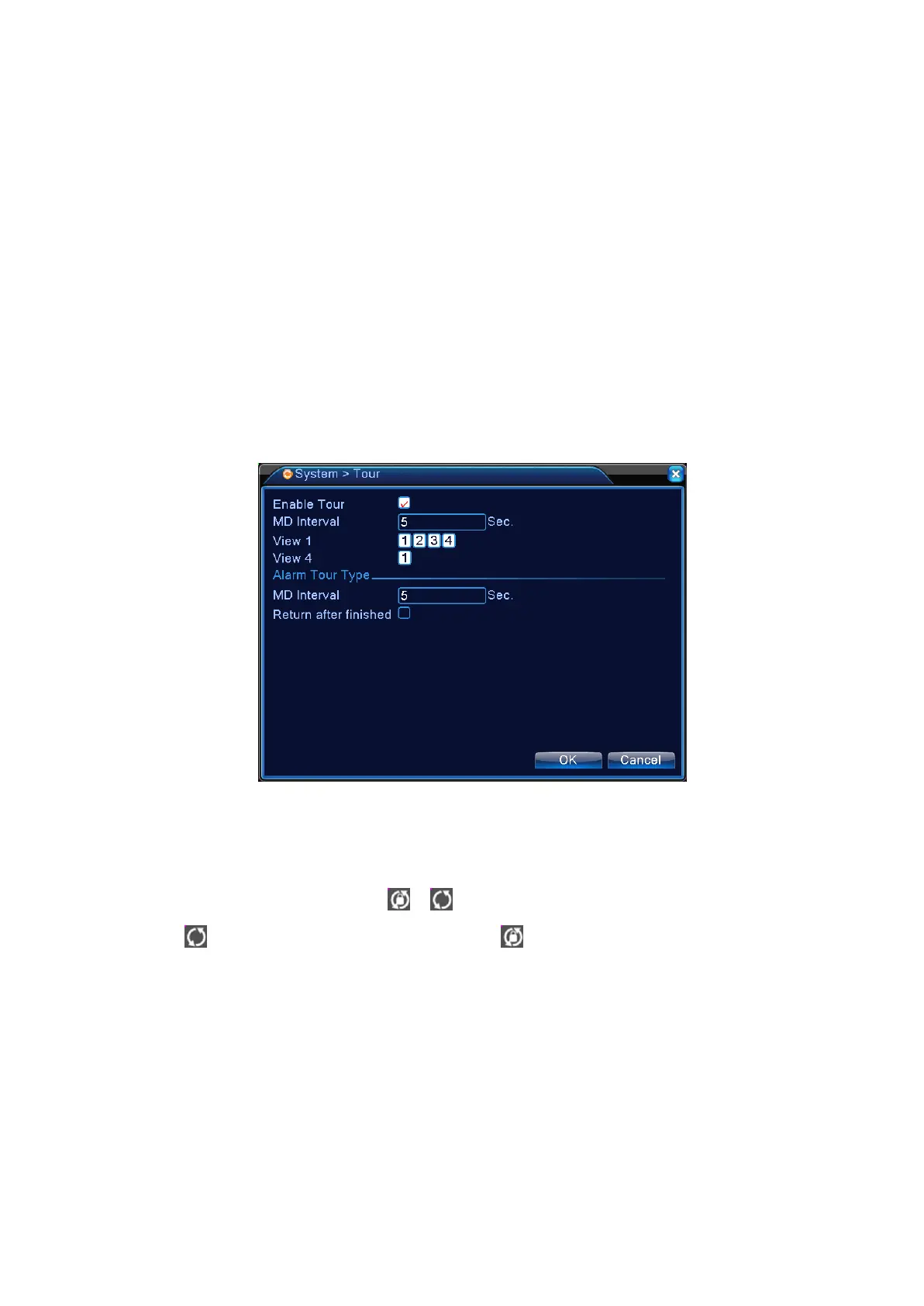

Figure 4.34 Auto Sequence Settings
【Interval】Set time interval for auto sequence screen switch. Setting range is 5-120 seconds；
【Return AfterFinnished】When alarm ends, return to multi-screen preview
Note：In preview mode, click the icons
/ on upper right corner of the page to turn on/off the auto
sequence（
indicates the auto sequence is on, and indicates off）.
4.5 Management Tools
Management Tools menu includes: Disk Management, User Management, Online Users, Output
Adjustment, Auto Maintenance, Restore Default, System Upgrade, and System Information.
4.5.1 Channel Management
*Remark
all series product support this function.
Digital manage including digital channel, channel status, and channel mode
(Remark: there is only analog mode if device is under full analog mode):
Page 50
