C
ONFIGURING
C
LIENT
TCP/IP
5-3
Setting TCP/IP to Work with the Barricade
1. Click the Start button and choose Settings, then click Control
Panel.

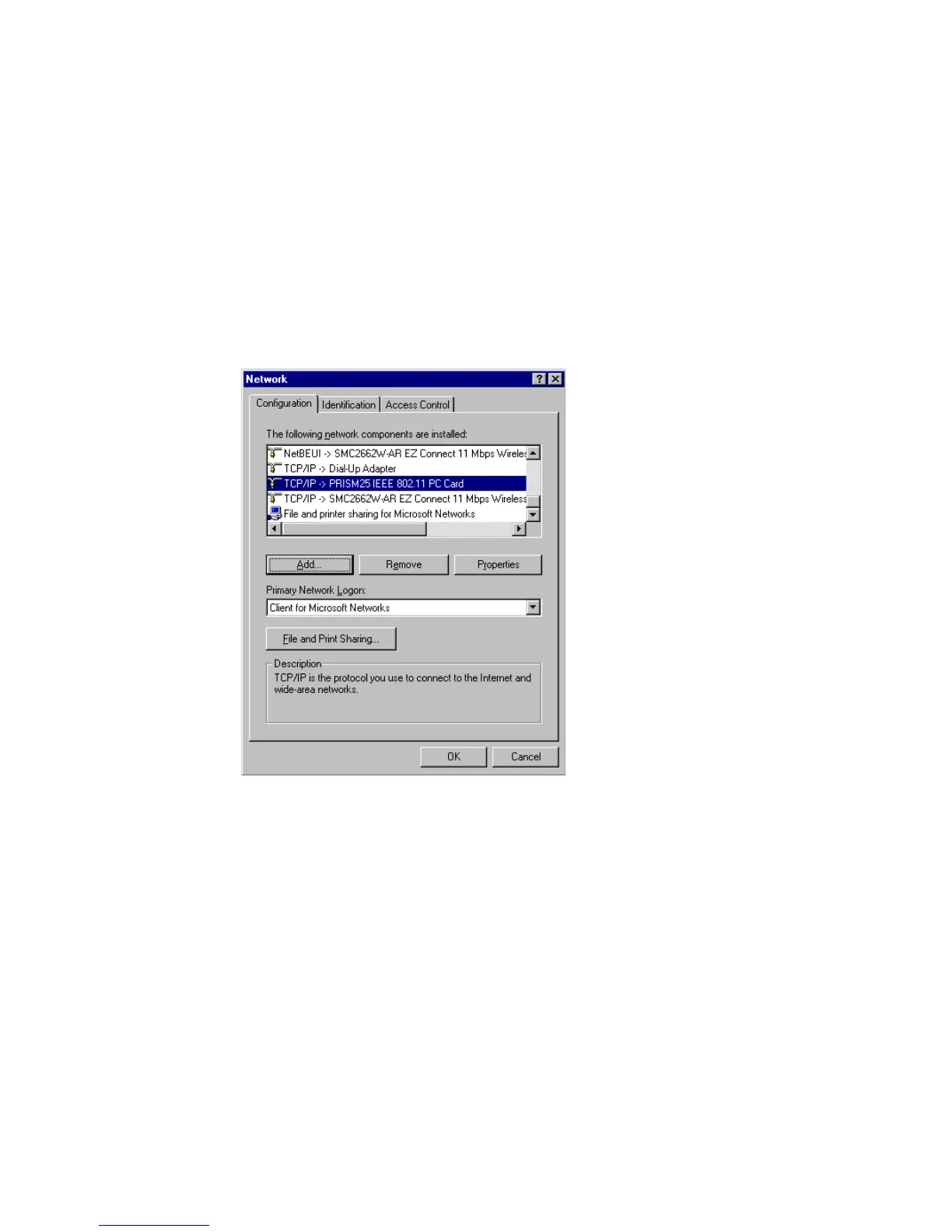

2. Double click the Network icon. Select the TCP/IP line that has
been assigned to your network card in the Configuration tab
of the Network window.
3. Click the Properties button to set the TCP/IP protocol for the
Barricade.
4. You can dynamically assign TCP/IP address settings to a client,
or you can manually configure a client with address settings to
meet your specific network requirements. (Note that the default
IP address of the Barricade is 192.168.2.1.)
To Next Page
