Chapter 2 Name of Each Section
2.2 Name of Each Section (2) HRZ Series
2-2
2.2 Name of Each Section (2)
HRZ008-L HRZ008-L1

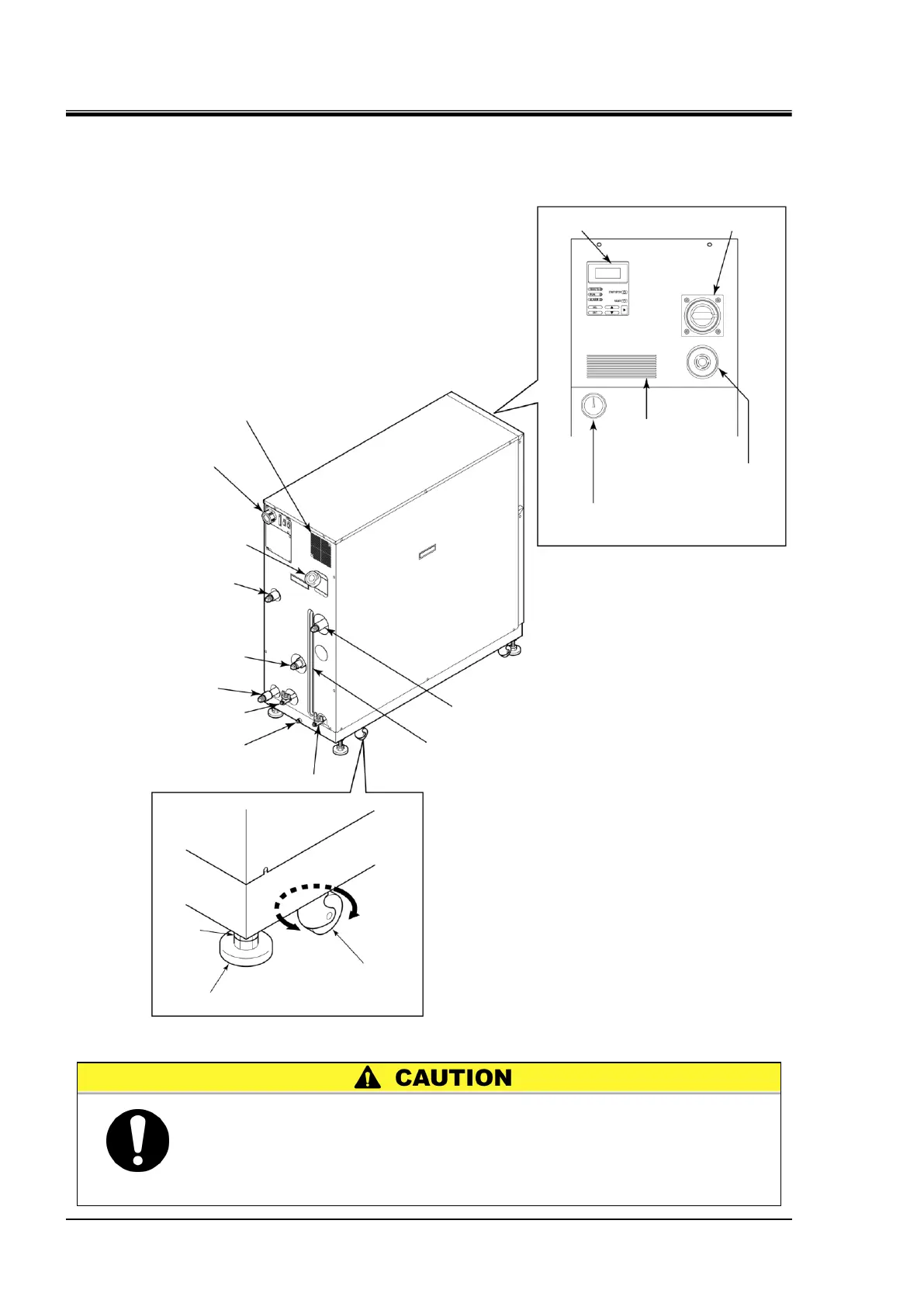

Figure 2-2 Name of Each Section (2)
When transporting the system with the casters, raise the adjustable feet
(4 pcs.) to the highest position and lock them with the nuts.
The adjustable foot at the lower position may cause damage to this
system and personal injury through contact with the floor or steps
during system transport.
Operation display panel
Refrigerant pressure gauge
Ventilating hole
(intake side)
Ventilating fan (exhaust side)
Power cable access
Circulating fluid fill port
Facility water outlet
Circulating fluid supply
Facility water inlet
Main tank drain port
Drain pan port
S
u
b
a
n
k
d
r
a
i
n
p
o
r
t
Circulating fluid return
Circulating fluid level gauge
Caster
Rotates 360°.
Nut
Main breaker
Emergency off [EMO] switch
Sub tank drain port
Adjustable foot
