Chapter 5 System Operation
HRZ Series 5.4 Examples of System Operation
5.4.2 Example 2: Communication mode is switched from “DIO
REMOTE” to “LOCAL”.

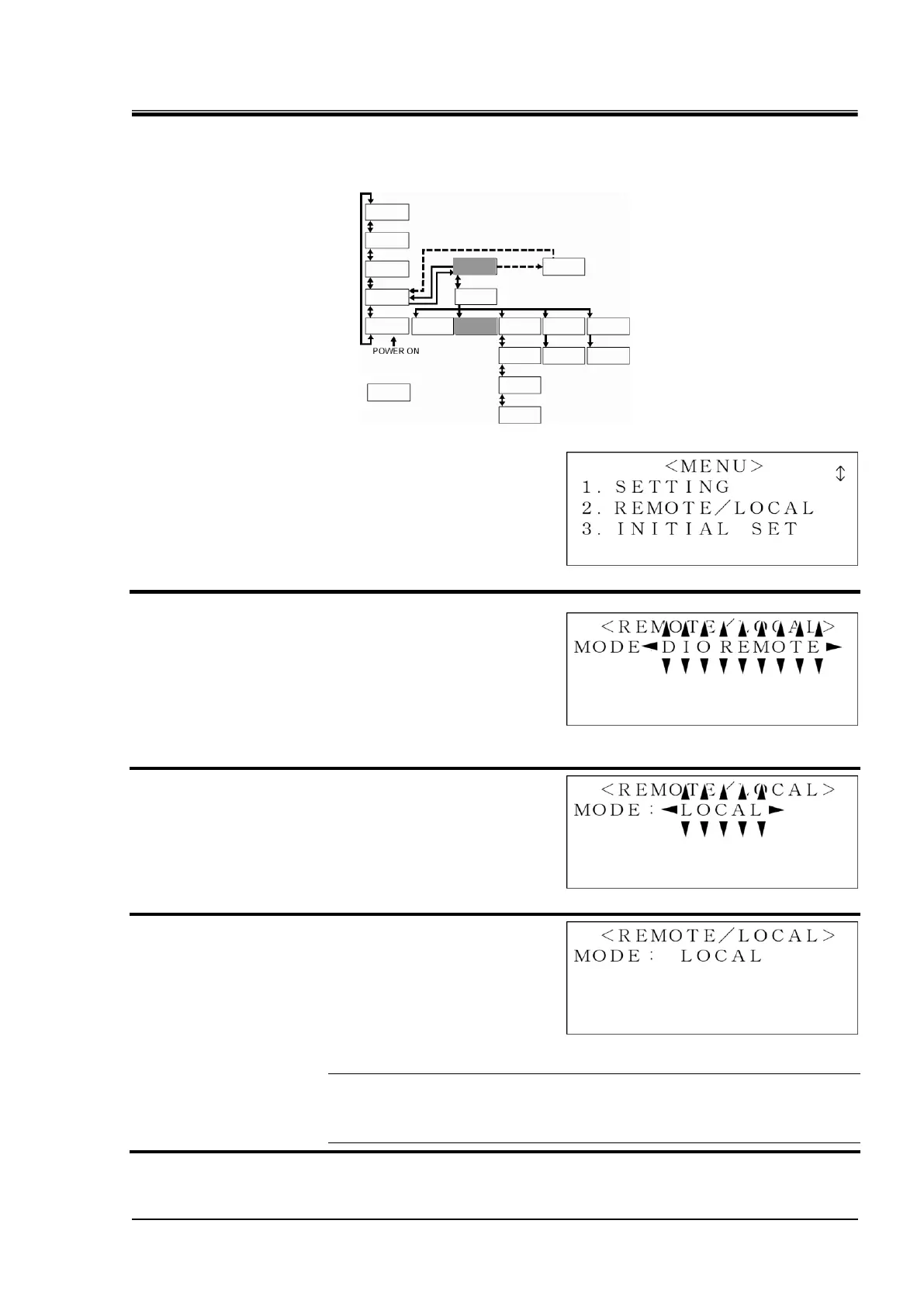

Figure 5-22 Switching of Communication Mode from “DIO REMOTE” to “LOCAL”
1. Press the [SEL] key to display the “Menu
screen 1”.
Figure 5-23 Menu Screen 1
2. With the use of the arrow keys ([▲], [▼]),
move the cursor to “2. REMOTE/LOCAL”
and press the [ENT] key.
The “Mode Selection screen” is displayed.
The name of the current mode flashes.
Figure 5-24 Mode Selection Screen: DIO REMOTE
3. Use the arrow keys ([▲], [▼]) to select
“LOCAL”.
Figure 5-25 Mode Selection Screen: LOCAL
4. Press the [ENT] key.
The mode name stop flashing, and the selection
takes effect.
Figure 5-26 Mode Selection Screen: Setting Confirmation
[Tips]
To cancel a selection, press the [SEL] key, not [ENT] key. With the press of
the [SEL] key, the cancellation takes effect and the screen is switched to the
“Menu screen 1”.
5. Press the [SEL] key to display the “Menu screen 1”.
