Chapter 5 System Operation
HRZ Series 5.3 Operation Screen
5-5

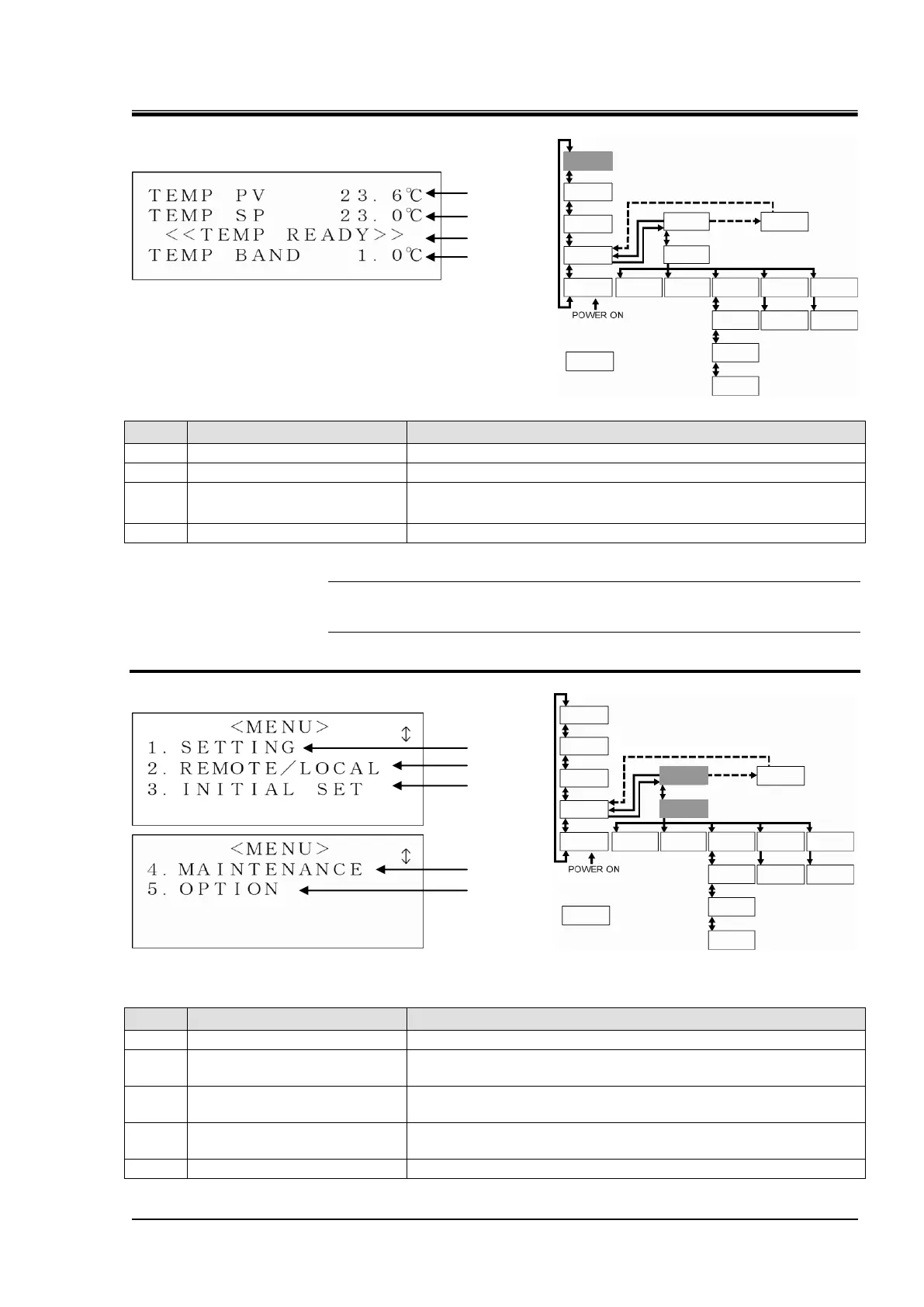

5.3.5 Status screen 4
Figure 5-7 Status Screen 4
Table 5-6 Status Screen 4
No.
Item
Descriptions
1
TEMP PV
Discharge temperature of the circulating fluid
2
TEMP SP
Set circulating fluid temperature
3
<<TEMP READY>>
Displays the BAND/READY [Displayed when set value
conditions are satisfied］
*1
4
TEMP BAND
Set value of BAND range
*1
[Tips]
See “Appendix 8.5 BAND/READ” in Chapter 8 on page 8-21 on offset
features (*1).
5.3.6 Menu screen
Figure 5-8 Menu Screen
Table 5-7 Menu Screen
No.
Item
Descriptions
1
SETTING
Swicthes to the “Setting screen” with the press of the [ENT] key.
2
REMOTE/LOCAL
Swicthes to the “Mode Selection screen” with the press of the
[ENT] key.
3
INITIAL SET
Swicthes to the “Initial Setting screen 1” with the press of the
[ENT] key.
4
MAINTENANCE
Swicthes to the “Maintenance screen 1” with the press of the
[ENT] key.
5
OPTION
Swicthes to the “Option screen” with the press of the [ENT] key.
1
2
3
4
1
2
3
4
5
