HRX-OM-I051
Chapter 3 Transporting and Installation
3.3 Procedure for Installation HRZ Series
Anti-seismic bracket is an optional part (except for HRZ008-L, HRZ008-L1), which is
required for the installation of this system (HRZ-TK002).
Preparation of anchor bolts suitable for floor material is your responsibility. M8-anchor
bolts (8 pcs.) are required for HRZ008-L and HRZ008-L1, and M12-anchor bolts (4 pcs.)
for other models. See “Appendix 8.5 BAND/READY function”
3.3 Procedure for Installation
3.3.1 Installation
System installation should be on a vibration-free stable level plane.
See “Appendix 8.2 Outer Dimensions” in Chapter 8 on page 8-14 for the
dimensions of this system.
3.3.2 Procedure for system securing (1)
HRZ001-L HRZ002-L HRZ004-L
HRZ001-L1 HRZ002-L1 HRZ004-L1
HRZ001-L2 HRZ002-L2 HRZ004-L2 HRZ008-L2
HRZ001-H HRZ002-H HRZ004-H HRZ008-H
HRZ001-H1 HRZ002-H1 HRZ004-H1 HRZ008-H1
HRZ002-W HRZ008-W HRZ002-W1 HRZ008-W1
HRZ010-WS HRZ010-W1S HRZ010-W2S
1. Transfer this system to the installation site.
2. Lock the brakes on casters (2 pcs. on the front).
3. Using a13-mm open end wrench, attach the anti-seismic brackets to the front and back.

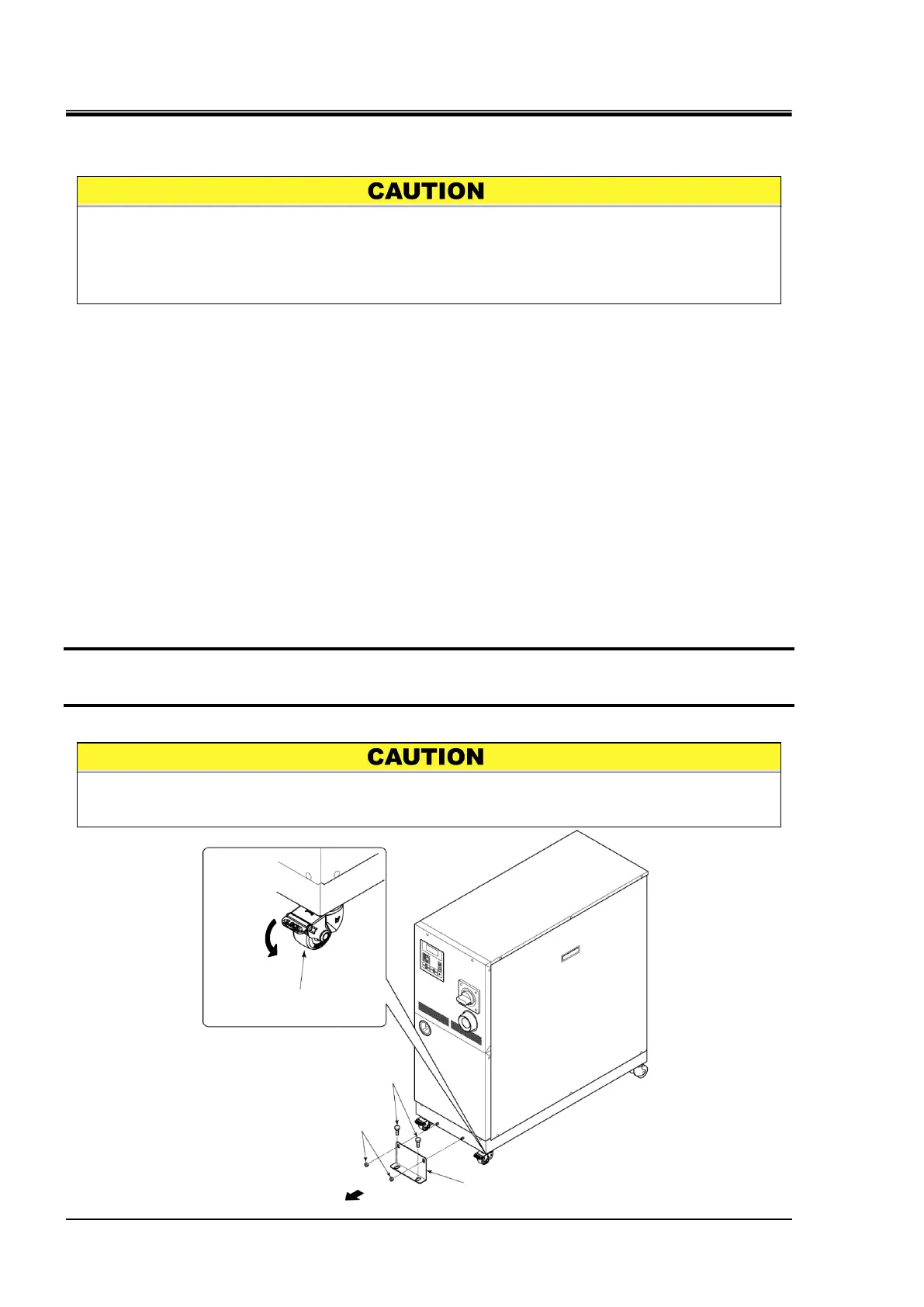

Figure 3-4 Anti-seismic Bracket Attachment
Drain pan port is assigned to the bottom on the back of this system. Exercise
caution not to damage the dain pan port when attaching the anti-seismic bracket.
Anti-seismic bracket (optional)
HRZ-TK002
M8 nut (2 pcs.)
(Accessory for anti-seismic
bracket)
Caster w/ brake
(2 pcs. on the front)
To Next Page
