SMC Networks HRZ001-L User Manual

HRX-OM-I051
Chapter 8 Appendix
8.6 Anchor Bolt Mounting Position HRZ Series
8-22
8.6 Anchor Bolt Mounting Position
8.6.1 Part 1
HRZ001-L HRZ002-L HRZ004-L
HRZ001-L1 HRZ002-L1 HRZ004-L1
HRZ001-L2 HRZ002-L2 HRZ004-L2 HRZ008-L2
HRZ001-H HRZ002-H HRZ004-H HRZ008-H
HRZ001-H1 HRZ002-H1 HRZ004-H1 HRZ008-H1
HRZ002-W HRZ008-W HRZ002-W1 HRZ008-W1
HRZ010-WS HRZ010-W1S HRZ010-W2S
Lock the brakes on casters (2 pcs. on the front), and attach the anti-seismic bracket
(optional: HRZ-TK002) to secure this system.

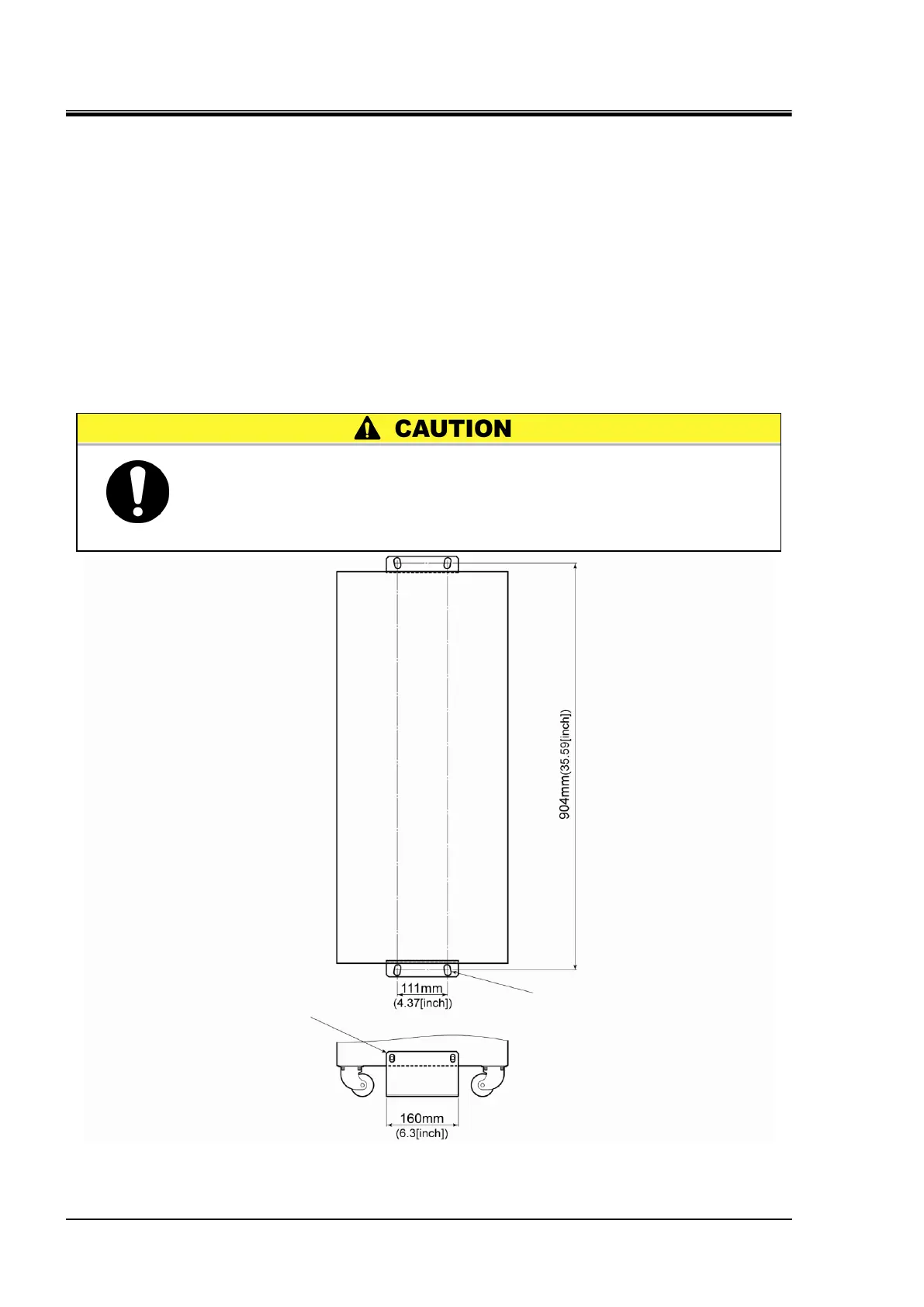

Figure 8-11 Anchor Bolt Mounting Position
Front
Anti-seismic bracket (optional)
Anchor bolt (4-Ø14)
Top
 Anti-seismic bracket is an optional accessory, which is required for the
installation of this system (HRZ-TK002).
 It is your responsibility to prepare anchor bolts suitable for your floor
material.
M12-anchor bolts (4 pcs.) are required.
