Chapter 5 System Operation
HRZ Series 5.3 Operation Screen
5-7
5.3.8 Mode Selection screen

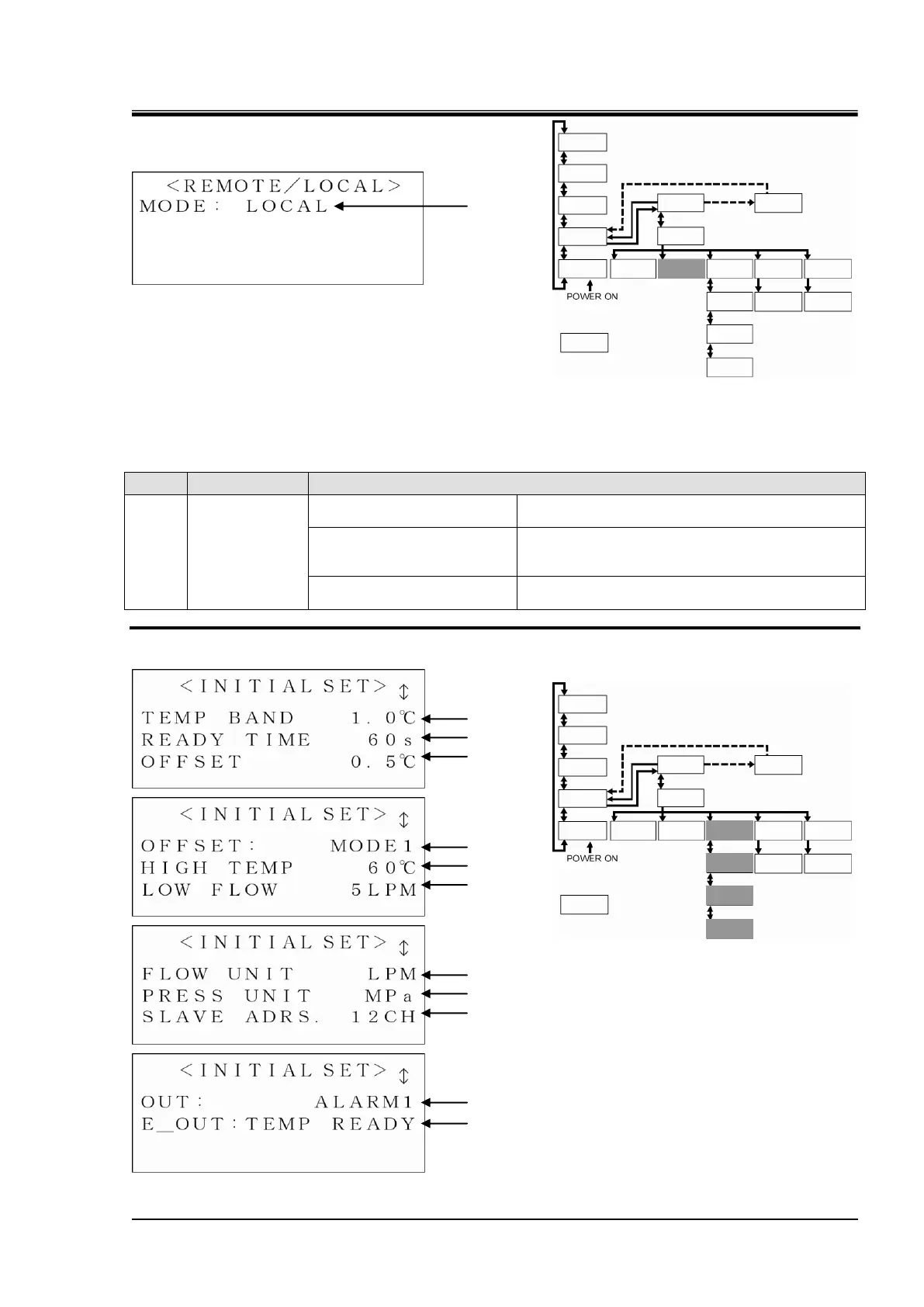

Figure 5-10 Mode Selection Screen
This screen enables the selection of the communication mode. The procedures for system start/stop and TEMP SP
value setting may vary with the communication mode.
Other operations and settings are available only from the operation display panel.
Table 5-9 Mode Selection Screen
No.
Item
Setting
1
MODE
LOCAL
System start/stop and TEMP SP value setting are
available only from the operation display panel.
DIO REMOTE
System start/stop is allowed only through contact
signal. TEMP SP value setting is available only from
the operation display panel.
SER REMOTE
System start/stop and TEMP SP value setting are
available only through serial RS-485 communication.
5.3.9 Initial Setting screen
Figure 5-11 Initial Setting Screen
1
1
2
3
4
5
6
7
8
9
10
11
