Chapter 8 Appendix
HRZ Series 8.6 Anchor Bolt Mounting Position
8-23
8.6.2 Part 2
HRZ008-L HRZ008-L1
Adjust and secure the adjuster foot of this system to secure the anti-seismic
bracket.

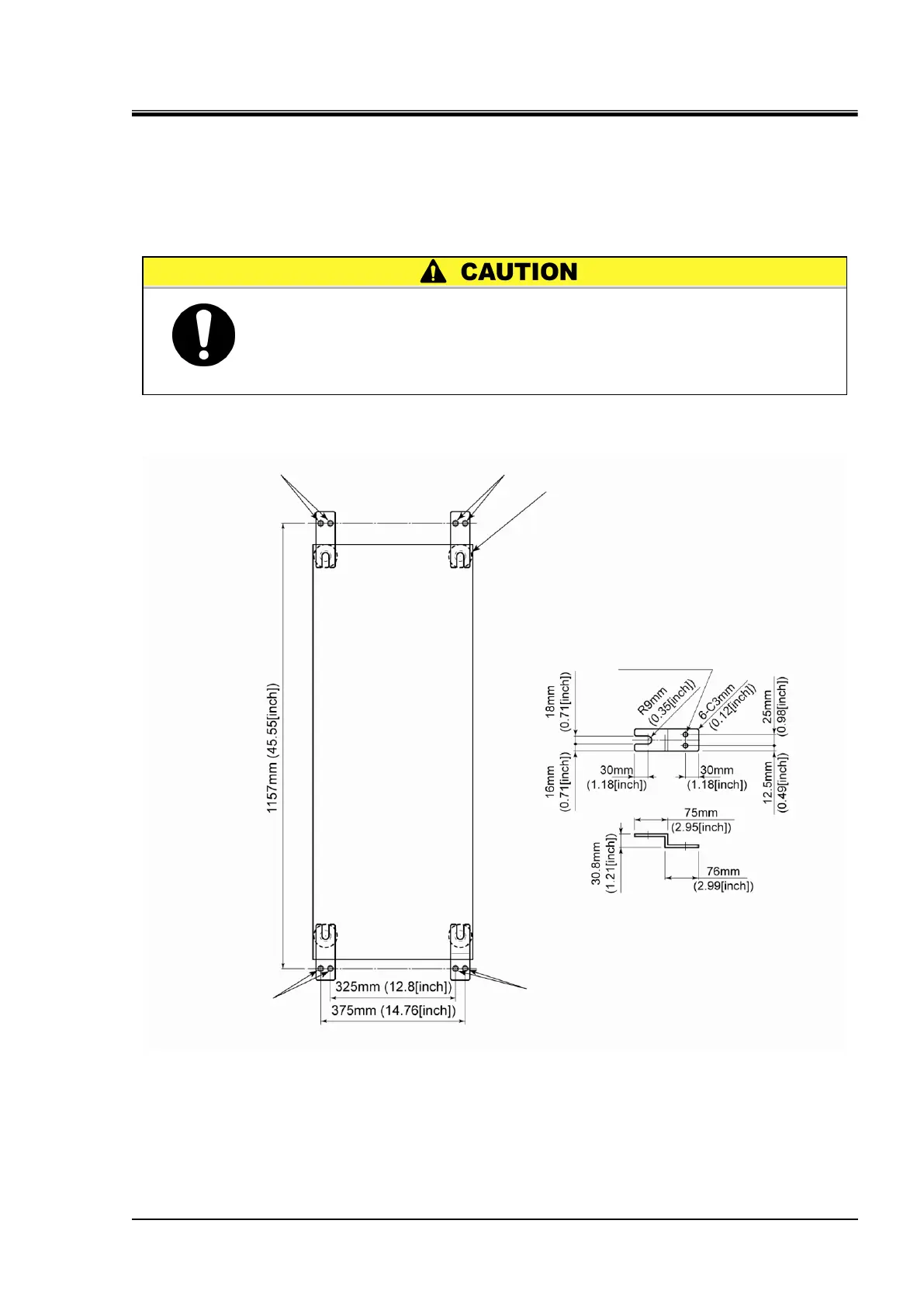

Figure 8-12 Anchor Bolt Mounting Position
Anchor bolt
Anchor bolt
Adjustable foot
Top
Anchor bolt
Anchor bolt
2-Ø9 notch
Anti-seismic bracket (accessory)
 Anti-seismic bracket is an accessory, which is required for the installation
of this system.
 It is your responsibility to prepare anchor bolts suitable for your floor
material.
M8-anchor bolts (8 pcs.) are required.
