Chapter 3 Transporting and Installation
HRZ Series 3.3 Procedure for Installation
3-11
M
a
i
F
r
Screw
Breaker cover
Breaker
Front panel
Screw
Front
Main breaker OFF
OFF
3.3.5 Procedures for wiring installation
1. Turn OFF the power breaker on customer side (primary side), and then use the assigned
procedures to peform lockout/tagout.
[Tips]
Connection of the power cable with this system must be established first.
Do not connect the cable with the factory side at this point.
2. Turn OFF the main breaker of this system.
3. Undo the screws (2 pcs.) to remove the front panel.
Be sure to use a Phillips screwdriver.
4. Undo the screws (2 pcs.) to remove the breaker cover.
Be sure to use a Phillips screwdriver.
[Tips]
Make sure the breaker is at the ‘OFF’ position.
Otherwise, the removal of the front panel is not possible.
Be sure to turn OFF the factory side (primary side) power before
connection to this system.
Use the assigned procedure to peform lockout/tagout (Page 1-10).

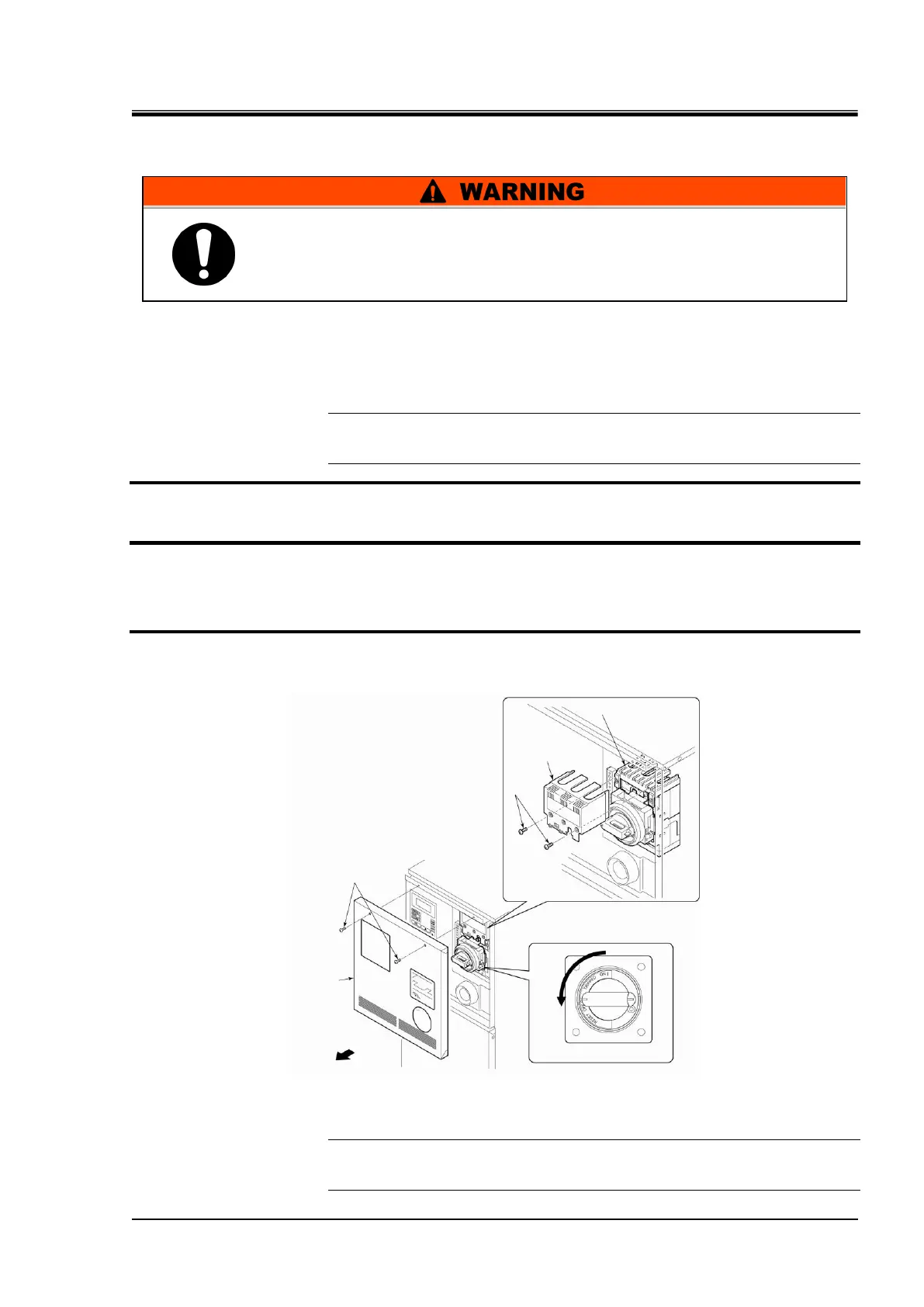

Figure 3-9 Main Breaker OFF and Removal of Front Panel/Breaker Cover
