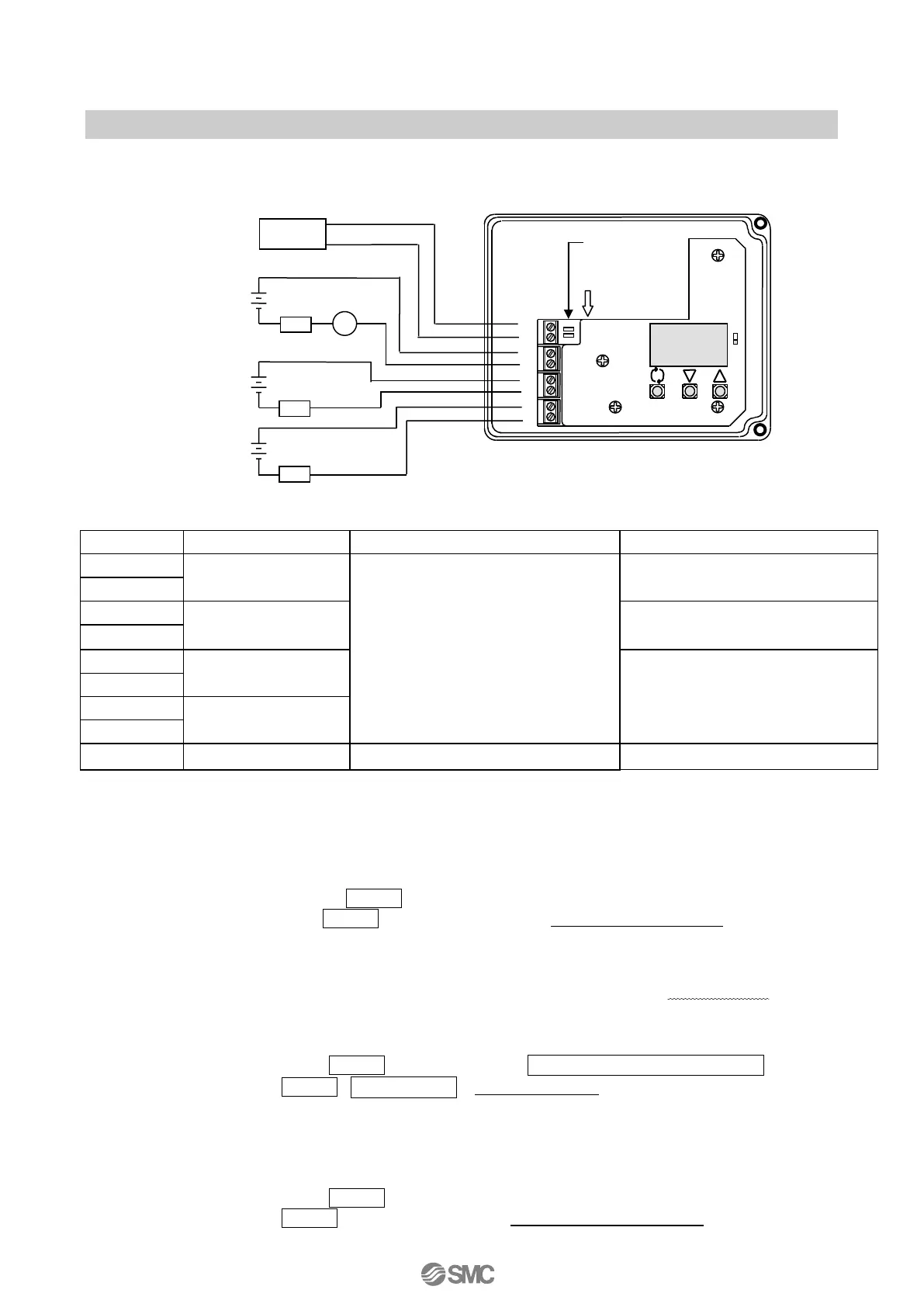

2: Calculate the maximum load resistance compatible with analog output from the specifications table (Table
2) and following equation (Common for both non-explosion protected specification and intrinsic safety
type of explosion protected construction specification).
<Ex.: Analog output>
Power supply voltage of 24V DC,
Load resistance ＝ (24V DC－10V DC) / 24mA DC = 583Ω (Up to 0 to 583Ω)
3: Alarm output for non-explosion protected specification requires 10mADC or more to operate the main
circuit of the internal switch, and it should be 40mADC or less to protect the internal resistance circuit.
Therefore, use a power supply voltage and load resistance with a load current of 10 to 40mADC when the
output is on.
<Ex.: Alarm output 1>
Power supply voltage 24V DC and load resistance 1kΩ (+ internal resistance 350Ω),
Load current = 24V DC / (1kΩ + 350Ω) = Approx. 18mA DC
4: Determination of load resistance of alarm output for intrinsic safety type of explosion protected
construction specification.
<Ex.: Alarm output 1>
Power supply voltage 24V DC,
Load current = 24V DC – 5V DC / 3.15mA DC = 6080Ω (Up to 0 to 6.08kΩ)
