SMC Networks IP8001 Series User Manual

No.IP8S-OM00009
28

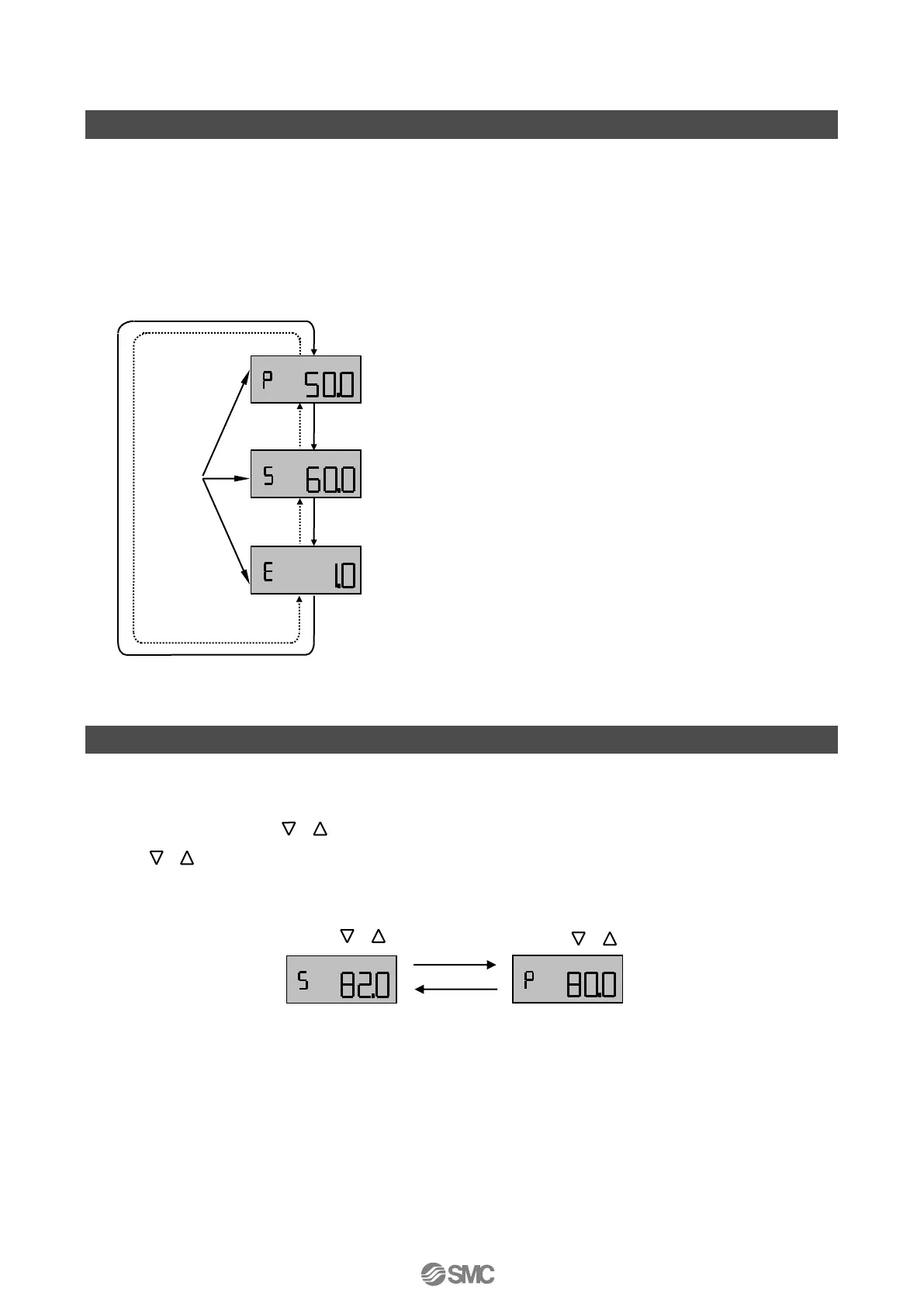

Auto Mode Operation
■Auto Mode
Use an auto mode if controlling an actuator by an input current as a smart positioner.
■Display Switching Method at Auto Mode
LCD display can be switched as follows according to Fig. 20 with the auto mode
*1
.
Manual Mode Operation
As it is shown in Fig. 21, the opening of an actuator can be voluntarily controlled by using the UP
button and Down button ( ) in manual mode. While pressing the UP button or the DOWN
button ( ), the display shows an input value (the target setting value for the actuator). When
the button is released, the display shows the position value of the actuator (actual actuator’s
opening) at that time.
or
or
Input value (%)
Position value (%)
or
Push
or
Release
UP button: Increases an input value by 0.1% per push
DOWN button: Decreases an input value by 0.1% per push
When each button is pressed for a while, an input value is continuously
increased/ decreased by 1.0% for 3sec. After the 3sec., the input value will be
increased/ decreased continuously by 2.0%.
Fig. 21
1: Position value (P value) and input
value’s (S value) indication range
is as follows.
P value : -100 to 200
S value : -50 to 150
Fig. 20
Position value (%)
Indication
flashing
Input value (%)
Deviation value (%)
▽ button
△ button
▽ button
△ button
△ button
▽ button
