Setting Parameters
■Parameter Code
(1) When an input current is entered for the first time, only the parameter mode can be selected.
According to “■Initial Adjustment”, calibrate the positioner.
(2) After (1), the auto mode is displayed first when an input current is entered.

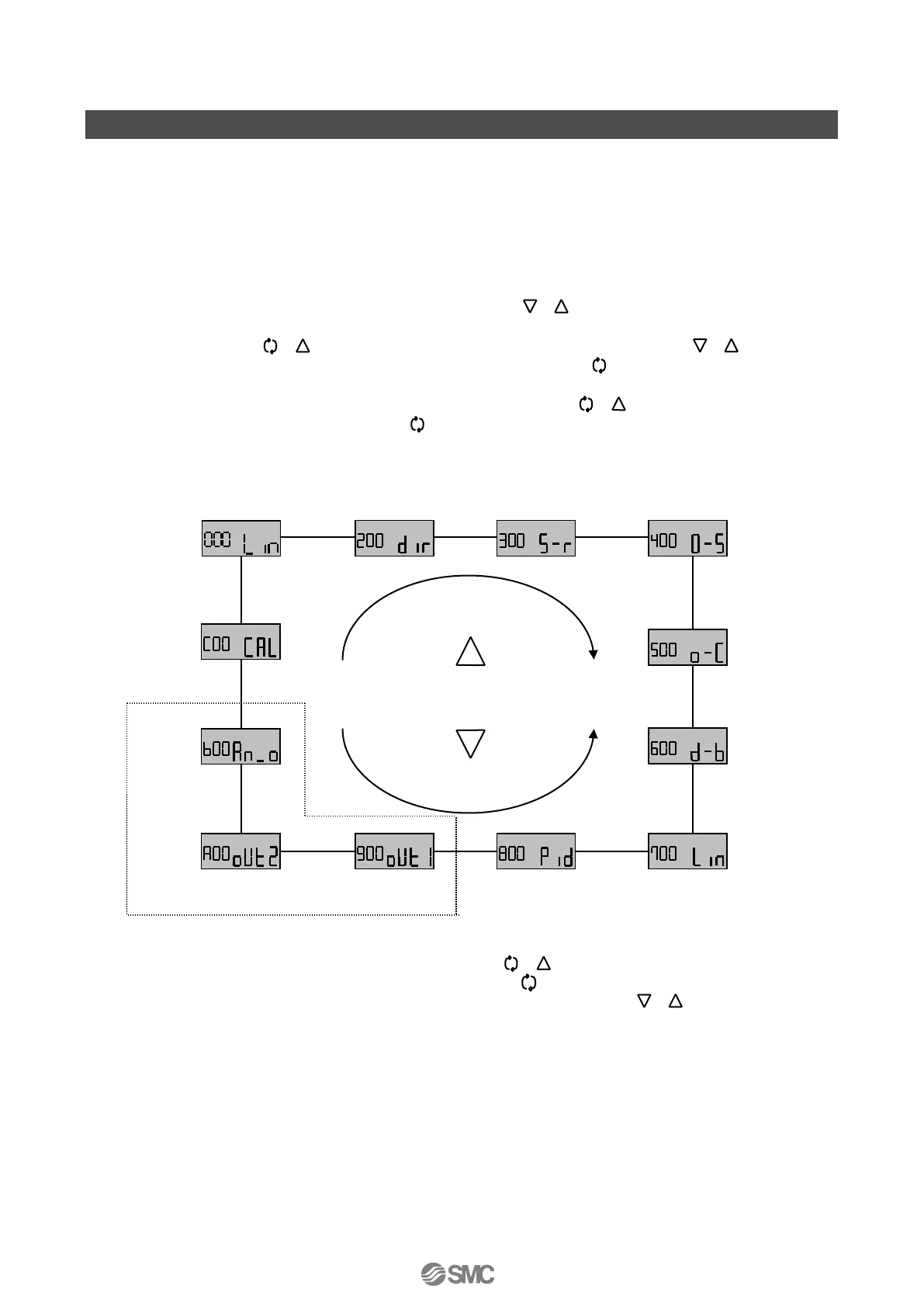

(3) The parameter code is shown in Fig. 22. The standard type and HART communication type
has 8 setting items. The output function type and ATEX type has 11 setting items. Select the
parameters in order with the UP / DOWN button ( ).
(4) Parameters stop with parameter codes flashing, and the codes can be changed by pressing
the set button ( ) for 1sec. or more. Push the UP / DOWN button ( ) to modify a
value. After the value is decided, push the mode button ( ) to go back to the parameter
code flashing status
*1
.
(5) To enter the lower hierarchy, hold down the set button ( ) for 1sec. or longer. To go
back, hold down the mode button ( ) for 1sec. or longer, to display a sub menu.
(6) See the next page, “■Parameter Code Detail” for detail of parameter codes.
1: See “■How to Change Values” for modifying a value.
2: The parameter surrounded by a broken line in Fig. 22 will not be shown for the standard type (IP8001-0*0)
or the product with HART communication (IP8001-0*3).
Set button ( ): to change a code
Mode button ( ): to set the code
UP button and DOWN button ( ): to select parameter
To Next Page
