SMC Networks IP8001 Series User Manual

No.IP8S-OM00009
18

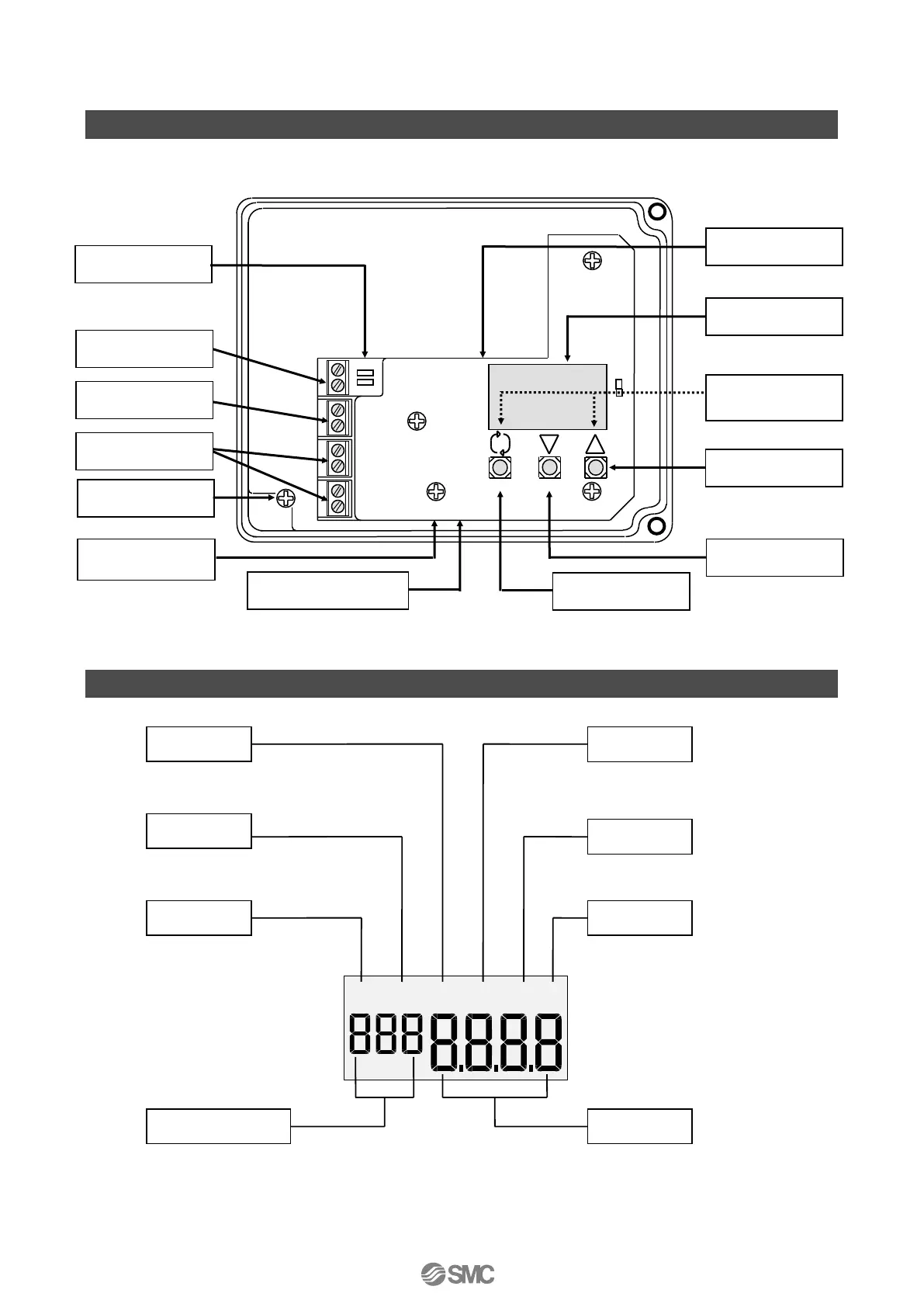

Description of Components
Fig. 13 shows a description of each component.
Contents of LCD Display
●
Parameter
Manual
Lights up in parameter mode.
Lights up in manual mode.
Auto
Lights up in auto mode.
Alarm 1
Lights up when alarm 1 output
is turned on.
Alarm 2
Lights up when alarm 2 output is
turned on.
Communication
Flashes during communication.
Current position
Shows a character for current position
and each parameter.
Parameter code
Shows a character for each parameter.
AUTO
MANU
PARM
ALM1
ALM2
Fig. 13
UP button
DOWN button
Board cover
Potentiometer terminal
Torque motor
terminal
E
１
２
３
４
５
６
７
８
Ground terminal
HART terminal
LCD display
Mode button
Input current
terminal
Analog output
terminal
Alarm output
terminal
(Hold down together)
Set button
Fig. 14
