Procedure
LCD display
4
<Hereafter, only when (on) is set>
For lower limit setting with (310),
hold down the set button ( )
for 1sec. or longer. After value
starts flashing, change value within
the range of 0.0 to 80.0%. After
changing, hold down the mode
button ( ) for 1sec. or longer to set
the value.
5
Press the UP or DOWN button
( ) to set the upper limit within
the range of 40.0 to 125.0% with
(320) as setting lower limit with in
clause 4 above. After changing,
hold down the mode button ( ) for
1sec. or longer to set the value.
6
Hold down the mode button ( ) for
1sec. or longer. Hold down again
for 1sec. or longer after interval.
＋
or
Upper limit setting（％）
or
or
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
Lower limit setting（％）

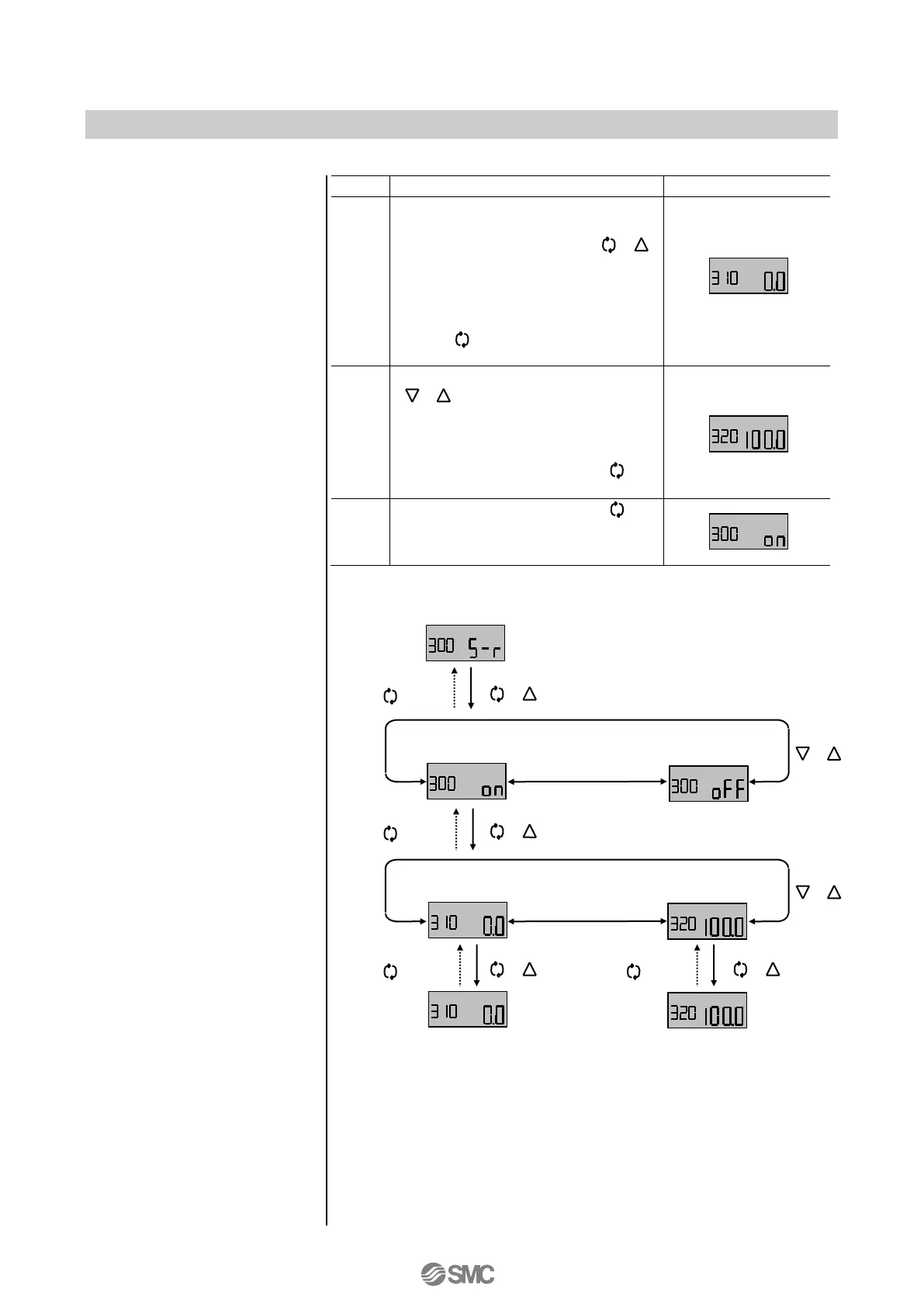

Fig. 36
