SMC Networks IP8001 Series User Manual

No.IP8S-OM00009
6

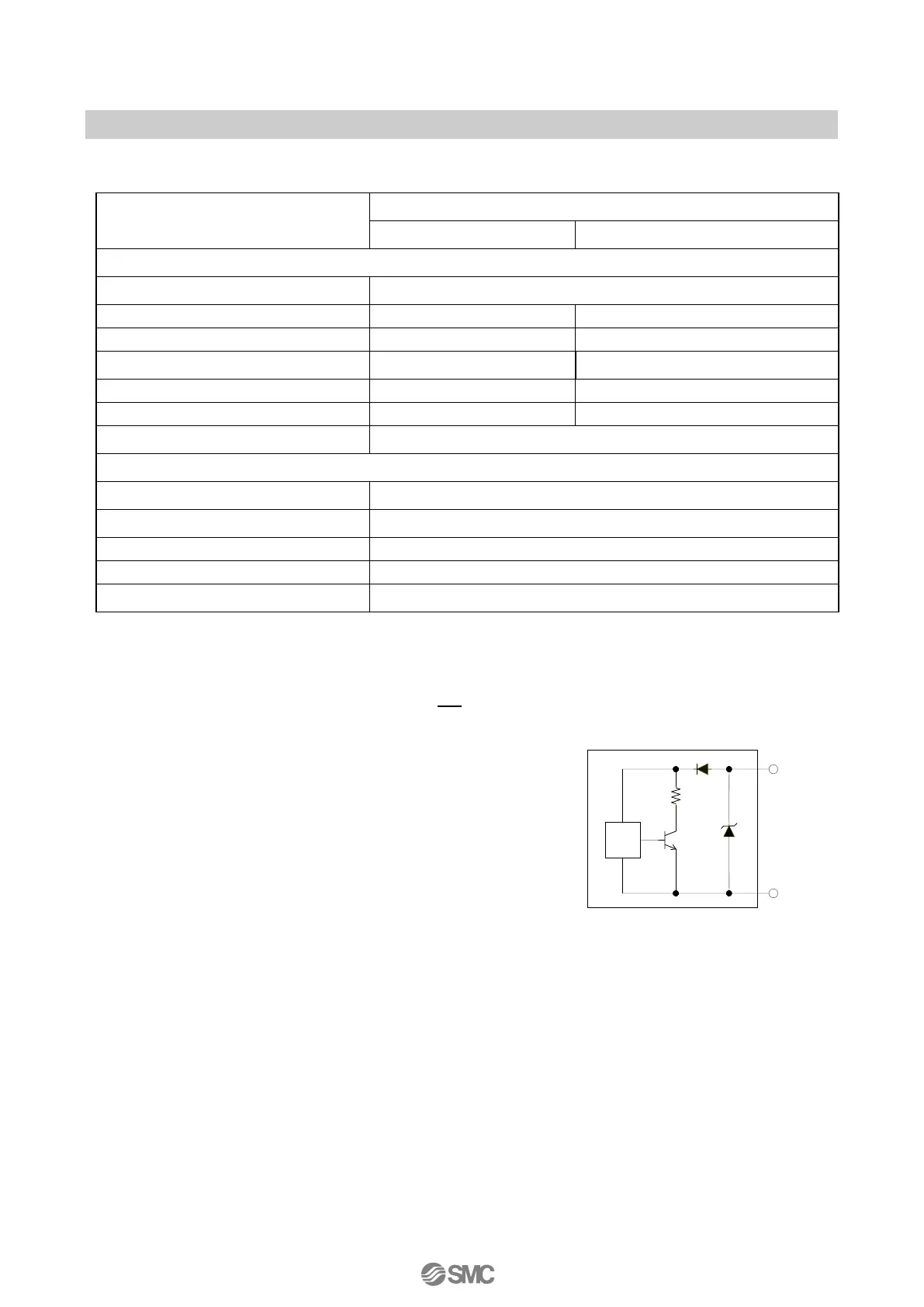

Table 2. Specifications of options
Item
Model
IP8001-0＊2
52-IP8001-0＊4
Alarm output1, 2
*9
Wiring method
2 wire system
Corresponding standard
-
DIN19234/NAMUR Standard
Power supply voltage
10～28VDC
5～28VDC
Load current
10～40mADC
*10
(Constant Current)
Signal status High (Not Active)
R=350Ω±10％
≧2.1mADC
Signal status Low (Active)
*11
0.5mADC or less
≦1.2mADC
Response time
50msec or less
Analog output
*12
,
*13
Wiring method
2 wire system
Supply source voltage
10～28V DC
Output current
4～20mADC
Load resistance
0～750Ω
Accuracy
±0.5%F.S. or less
*14
1: 1/2 split range is available as split range setting (parameter code: 300).
2: <Ex.> When applying an input current of 80mA DC, an input power supply voltage of 12.5V DC or less can
prevent damage to the positioner.
Max. supply power = 80mA DC×12.5V = 1W
3: Although the installation and adjustment of feedback lever angle is adjustable between +/-5 degree to
+/-15 degree, +/- 5 degree is recommended to avoid the reduction of linearity due to geometrical error.
4: Linearity is a characteristic checked without loads using our
inspection machine. The positioner cannot work independently
and is used as a part of loop including actuating equipment
such as a valve, actuator and DCS. Therefore, it should be
noted that the described characteristic values may vary
depending on the loop conditions.
5: (ANR) shows standard air in accordance with JIS B0120.
6: The visibility of LCD display may be reduced at lower
temperature. This does not affect the positioner operation.
7: Voltage between terminals depends on temperature change.
8: Intrinsic safety type of explosion protected construction can be selected from “How to Order”. If the
explosion protected construction specification is not selected, the product will not have the explosion
protected construction (preparing).
9: When no input current has been applied, an alarm is output. Fig. 1 shows an internal alarm circuit of the
IP8001-0*2 (Non explosion protected construction).
10: 10mADC or more load current is needed to operate the main circuit of the internal switch, and it should
be 40mADC or less to protect the internal resistance circuit. Therefore, use a power supply voltage and
load resistance with a load current of 10 to 40mADC when the output is on.
11: The current consumption to drive a main circuit of an internal switch is included.
12: Connect a load resistance with consideration given to the minimum power supply voltage (refer to
“■Electrical wiring”).
13: If input current is cut while analog output source voltage is supplied, analog output current before the cut
is maintained.
14: Analog output accuracy to position value (P value) in the LCD display.
Fig.1
OUT(+)
OUT(-)
Main
circuit
switch
