SMC Networks ISA3 Series User Manual

3 Installation
-40-
No.PS※※-OMW0009-A

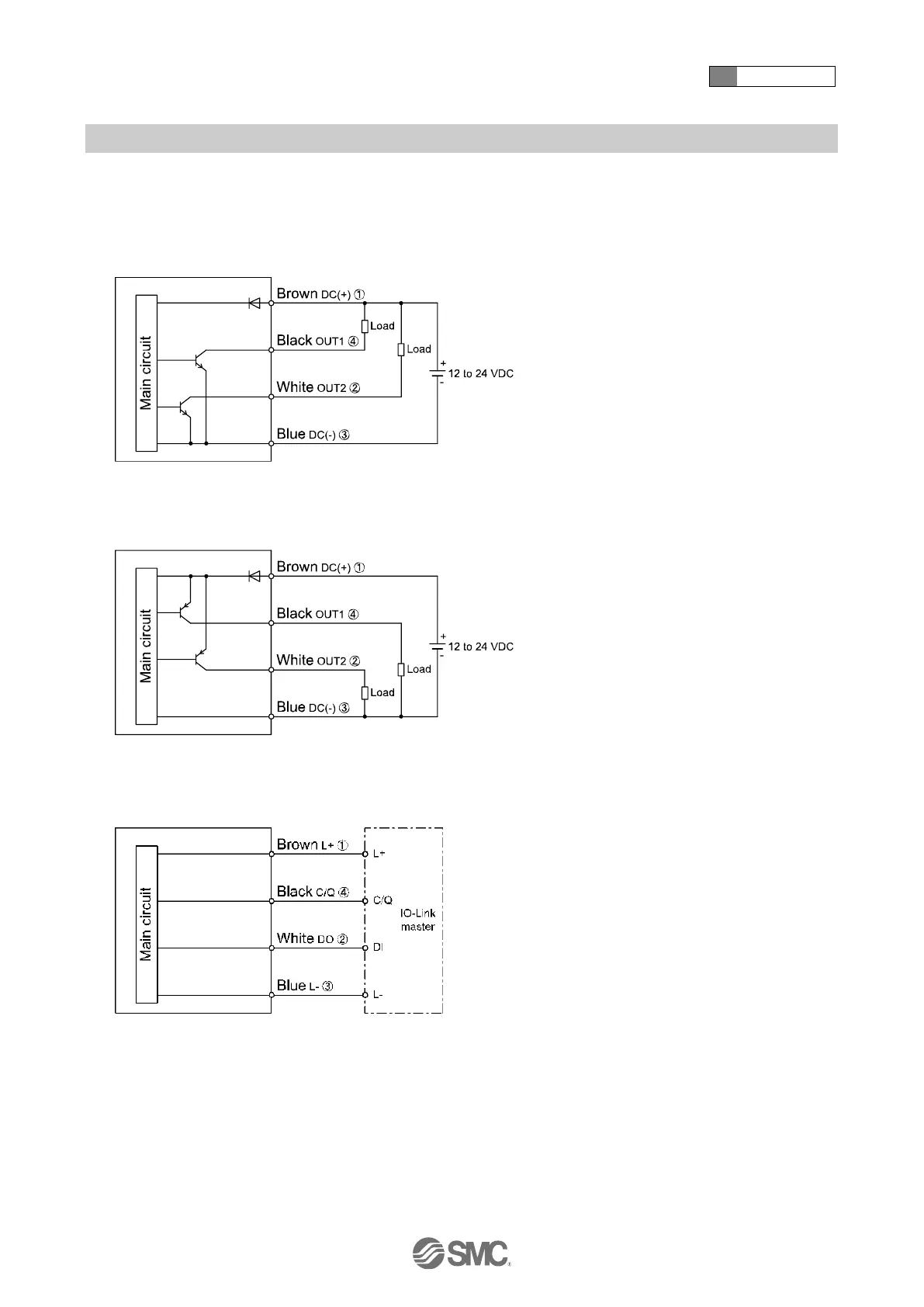

○Internal circuit and wiring examples (for cable with connector)
Wire the product according to the circuit diagram below.
•Used as switch output device
Setting of NPN open collector 2 outputs
Setting of PNP open collector 2 outputs
•Used as IO-Link device
: Numbers in the figures show the connector pin layout.
◆Refer to the VX2 series Operation Manual for wiring details of the VX2 series (2 port
solenoid valve).
