4 How to use
-77-
No.PS※※-OMW0009-A

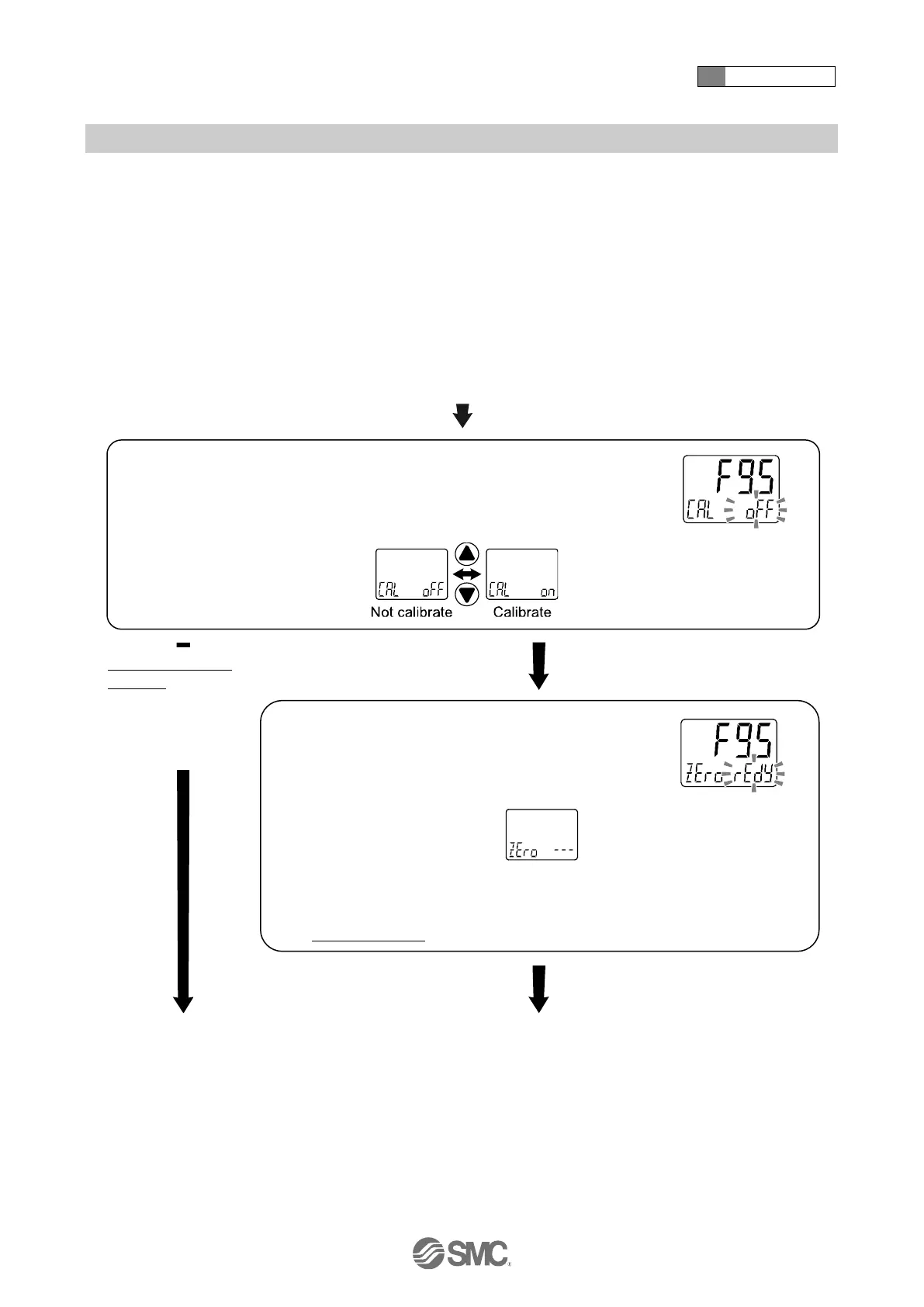

■[F95] calibration function
This function adjusts each display value (detection distance (guideline), SUP port pressure and OUT port
pressure.
It adjusts the display value on the supply pressure side and detection pressure side, and corrects the display
value.
It performs zero-clear of the display pressure, and subtle adjustment of the display value and detection
distance (guideline).
It is possible to adjust the display pressure zero when zero-clear is applied to the pressure display (no air is
supplied: released to atmosphere).
<Operation>
Press the UP or DOWN button in function selection mode to display [F95].
Press the SET button. Move on to calibration function setting.
Calibration function setting
Press the UP or DOWN button to select calibrate or not calibrate.
Press the SET button to set.
Step1: Zero-clear of pressure display
Release the SUP port side pressure and OUT port
side pressure to atmosphere.
Press the SET button to conduct zero-clear.
: If the measured pressure is outside of the default value by 7% FS or more, ER3 is
displayed. Return to the zero-clear setting.
: If the mode is switched to the calibration mode by mistake, press the UP and DOWN buttons
for more than 1 second. The screen will move back to the calibration selection mode.
Press the SET button to set.
[oFF] (Unused) is
selected
Press the SET
button to return to
function selection
mode.
Move on to subtle adjustment of the OUT
port side pressure display value.
Move on to zero-clear of pressure
display.
To Next Page
