■Pressure switch for vacuum
Name
Function

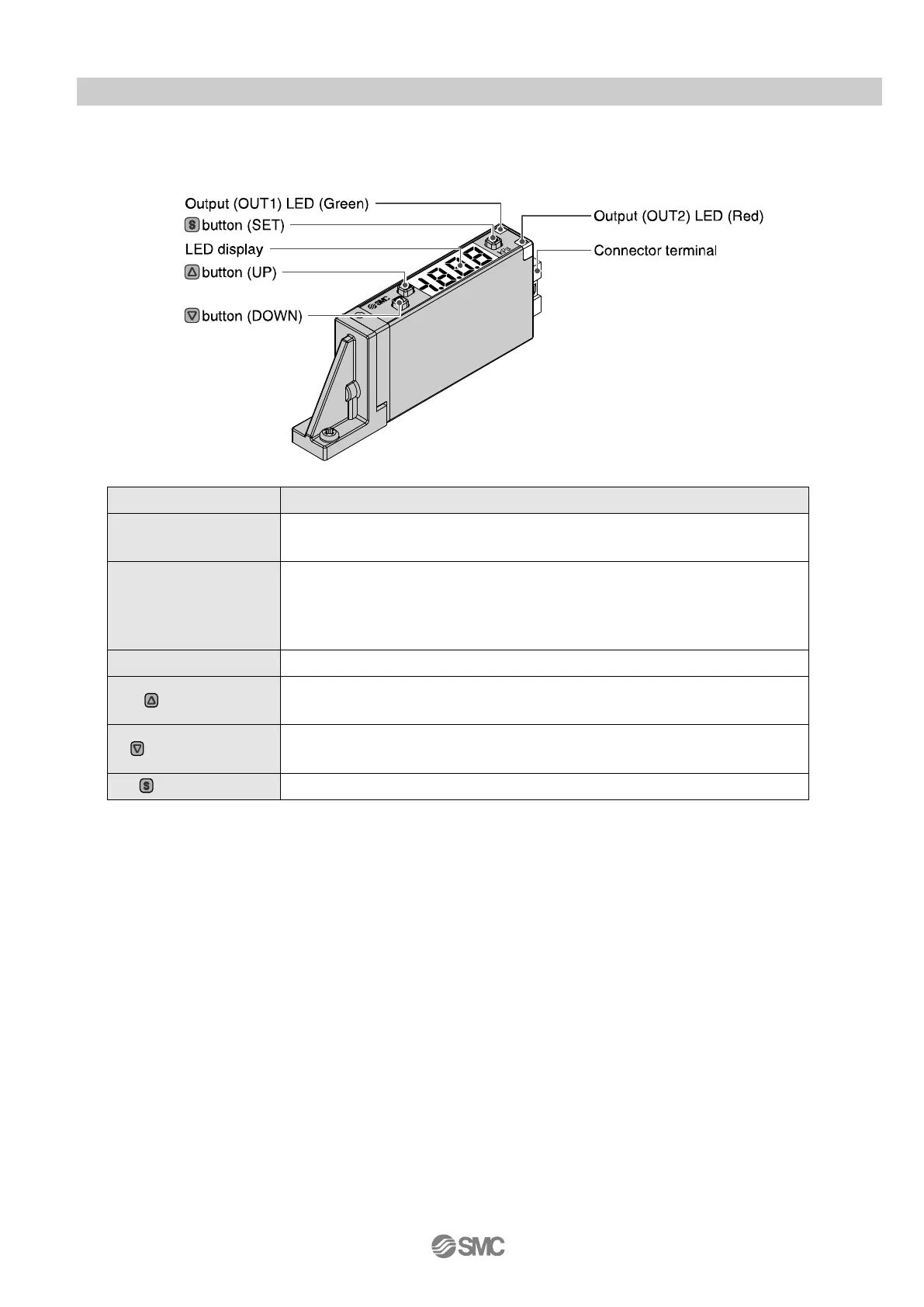

Output (OUT1) LED
(Green)
LED (Green) is ON when the switch output (OUT1) is ON.
Output (OUT2) LED
(Red)
Pressure switch for vacuum:
LED (Red) is ON when the switch output (OUT2) is ON.
Pressure switch for vacuum with energy saving function:
LED (Red) is ON when the pilot valve for supply valve is energized.
LED display
Displays the current status of pressure, setting mode and error code.
button (UP)
Selects a mode and increases ON/OFF set value.
Press this button to change to the peak display mode.
button (DOWN)
Selects a mode and decreases ON/OFF set value.
Press this button to change to the bottom display mode.
button (SET)
Press this button to change to another mode and to set a value.
