SMC Networks ZK2 Series User Manual

-39-
No. ZK2-OM00201
(4) Port plug assembly (5) Port plug assembly
(Purchasing order is available in units of 1 piece.) (Purchasing order is available in units of 1 piece.)
VVQZ2000 - CP ZK2 - MP1C6 - A
(6) One-touch fitting assembly
(Purchasing order is available in units of 10 pieces.)
VVQ1000 - 51A - C8
(7) Sound absorbing material
(2 pcs. per set)
ZK2 - SE2 - 1 - A

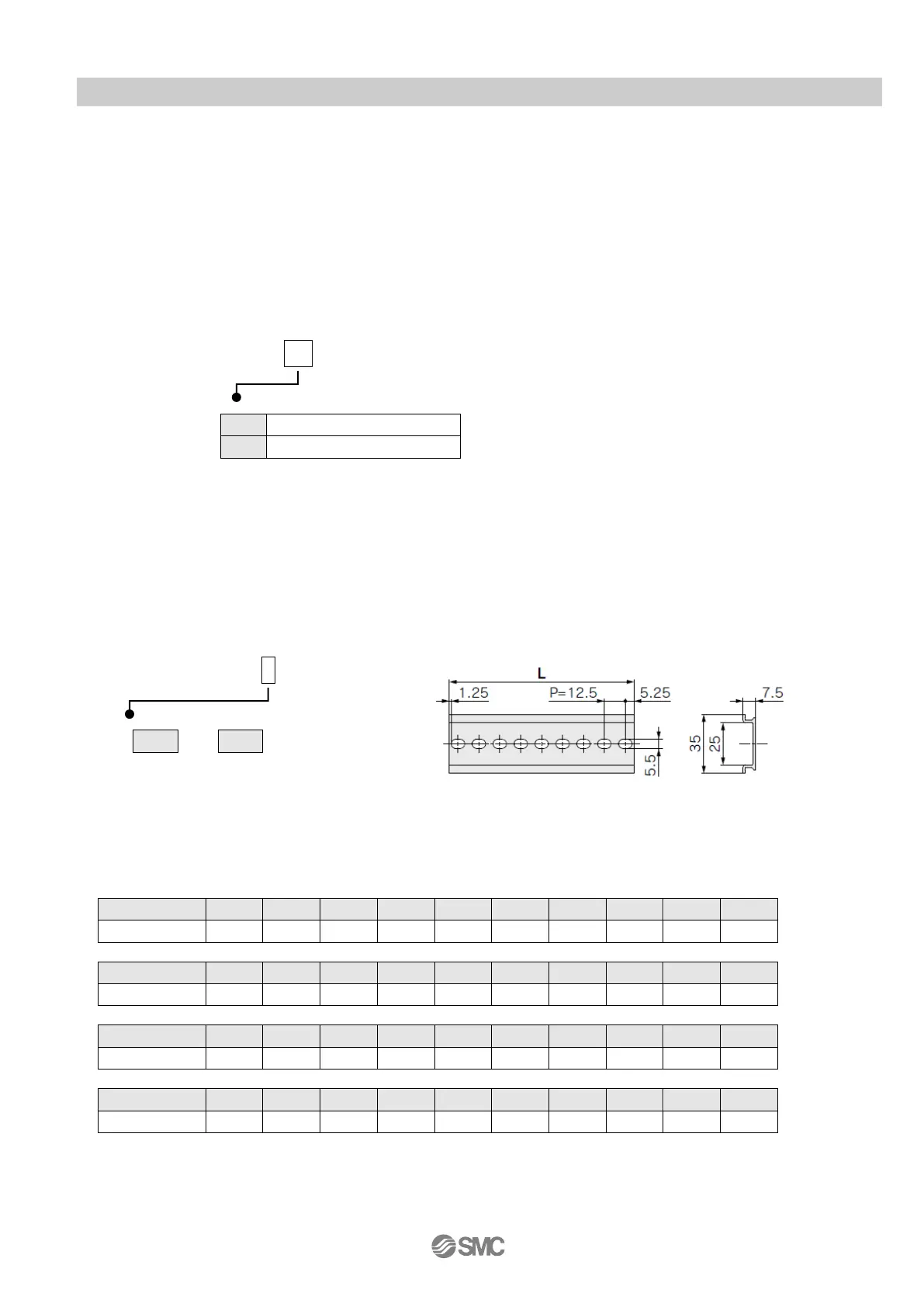

(8) DIN rail
AXT100 - DR - 5
L = 12.5 x # + 10.5 (#: Length symbols 1 to 40)
One-touch fitting size
C8
ø8 One-touch fitting
N9
ø5/16” One-touch fitting
Length symbols
1
to
40
L Dimension
(When selecting the number, refer to “L6” in dimension table in the Best Pneumatics No.4 catalog on pages 88 to 90.)
No.
1
2
3
4
5
6
7
8
9
10
L Dimension
23
35.5
48
60.5
73
85.5
98
110.5
123
135.5
No.
11
12
13
14
15
16
17
18
19
20
L Dimension
148
160.5
173
185.5
198
210.5
223
235.5
248
260.5
No.
21
22
23
24
25
26
27
28
29
30
L Dimension
273
285.5
298
310.5
323
335.5
348
360.5
373
385.5
No.
31
32
33
34
35
36
37
38
39
40
L Dimension
398
410.5
423
435.5
448
460.5
473
485.5
498
510.5
