-62-
No. ZK2-OM00201

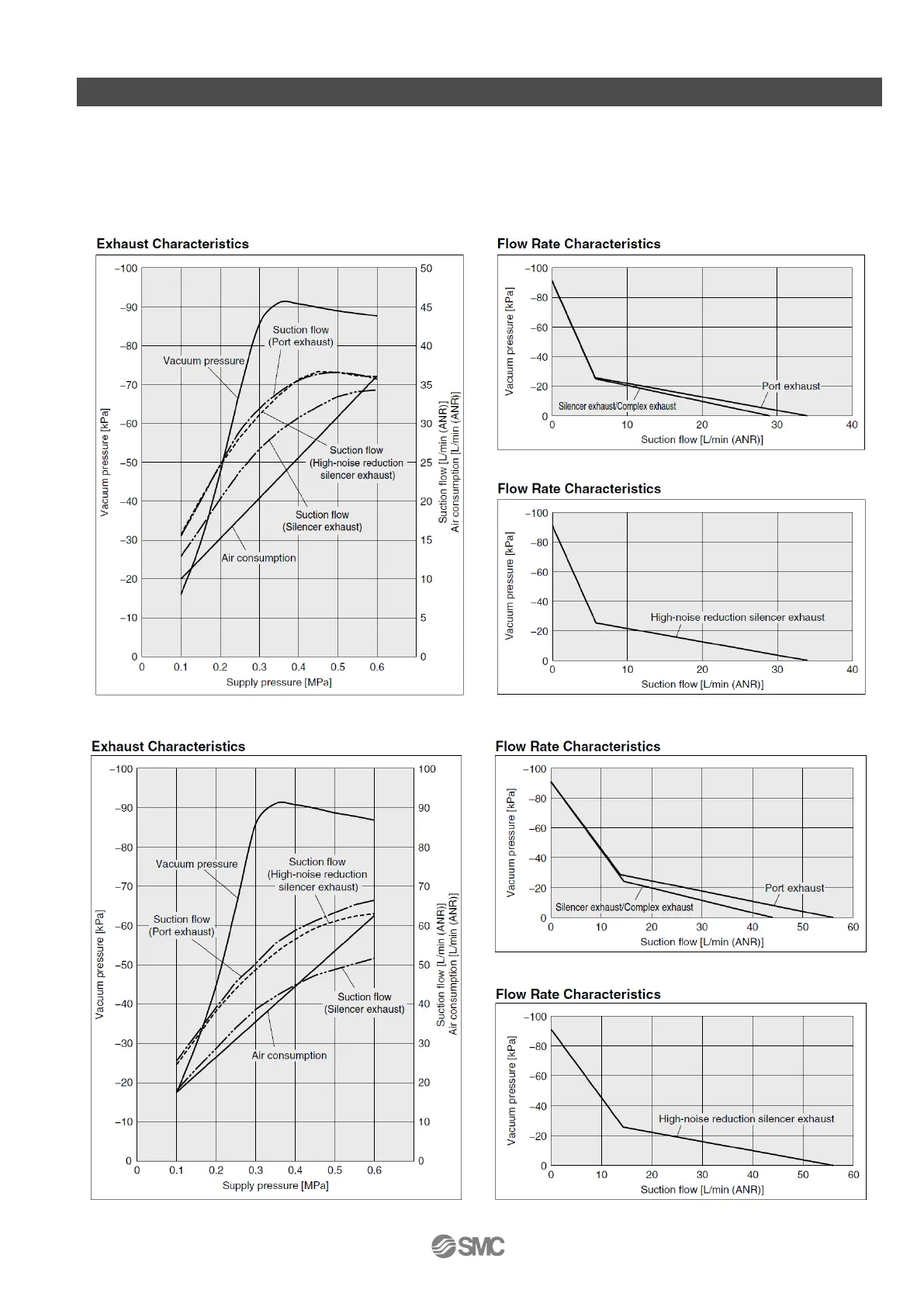

11. Exhaust/Flow Rate Characteristics
11.1. Ejector Exhaust Characteristics/Flow Rate Characteristics
The flow rate characteristics correspond to the standard supply pressure.
■ZK2□07
■ZK2□10
