SMC Networks ZK2 Series - Page 62

-61-
No. ZK2-OM00201

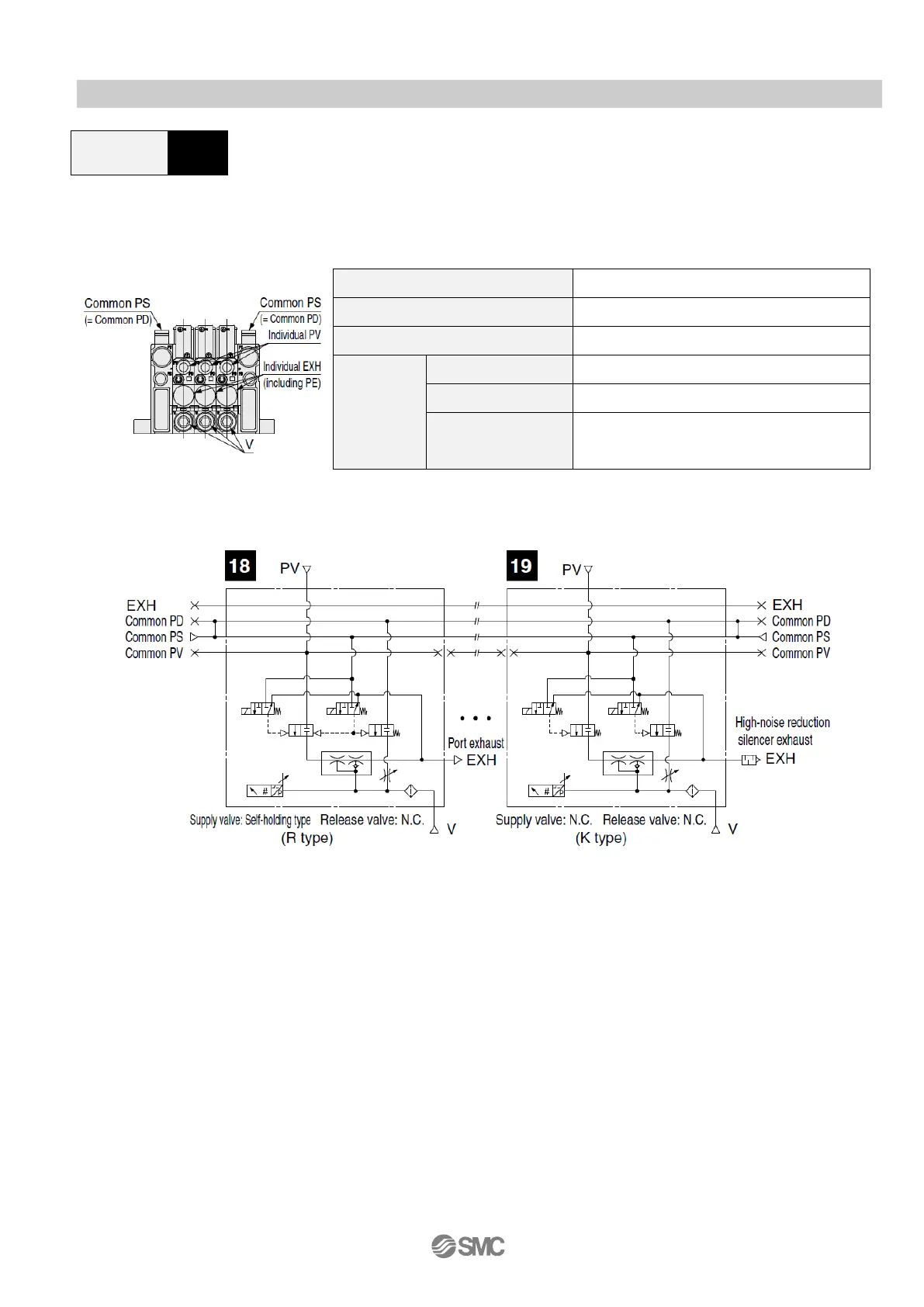

Single unit: ZK2H□□□□□-□-L
Manifold: ZZK2□□-A2□-L
Port
Layout No.
19
System
Ejector
Body type
Manifold
Exhaust type
High-noise reduction silencer exhaust
Application
and
purpose
Vacuum pressure
PV pressure can be changed per station.
Exhaust
Released in operating environment
Release pressure
Same pressure for common PS pressure
and common PD pressure.
Port combination: Individual PV  Common PS = Common PD
