SMC Networks ZK2 Series User Manual

-40-
No. ZK2-OM00201

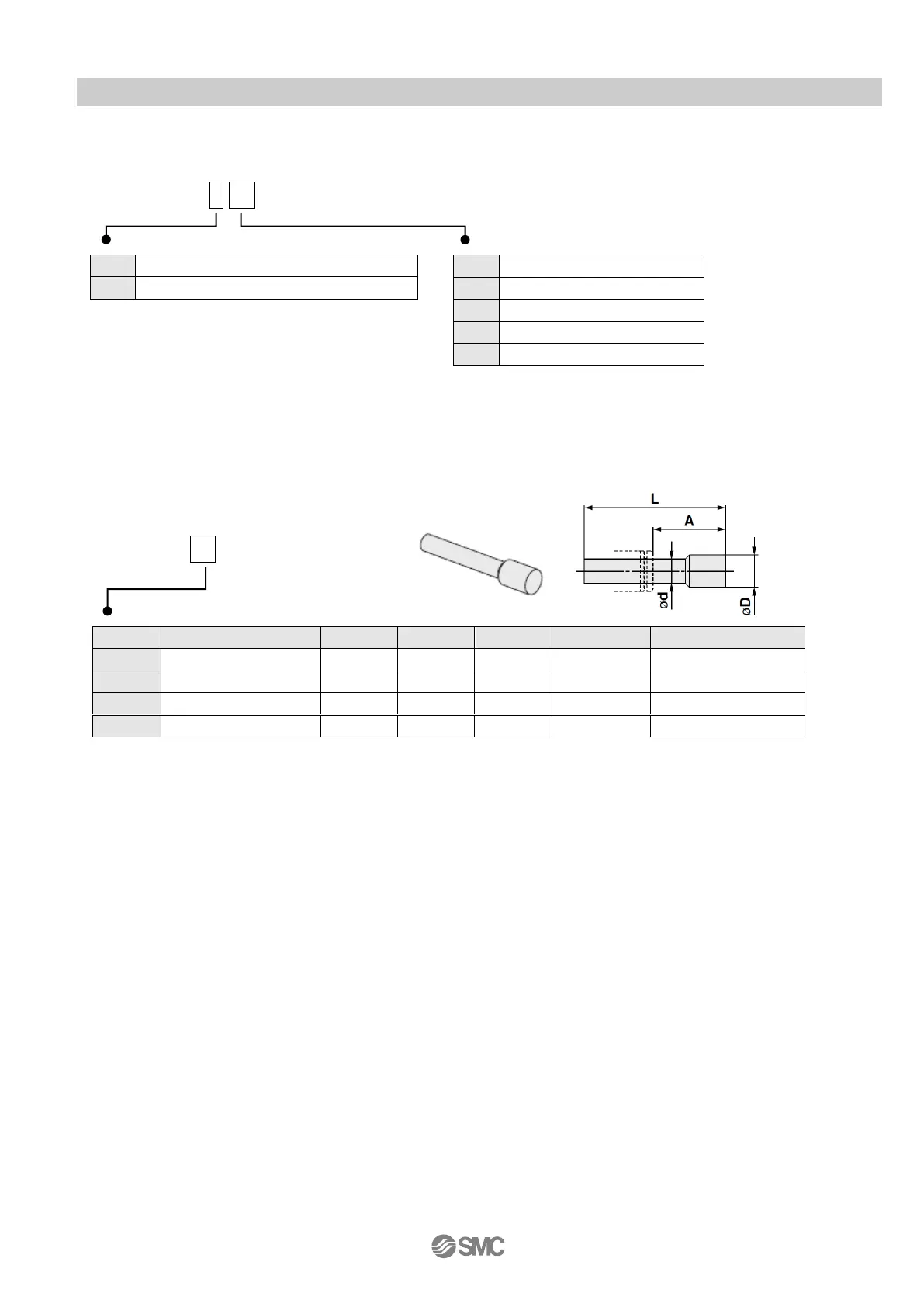

(9) Connector housing assembly
ZK2 - CH 2 04 - A
*Plug (For One-touch fitting)
(Purchasing order is available in units of 10 pieces.)
Mounted onto ports which are not used (PV, PS, PD, etc.)
KQ2P - 06
Connector type
1
D-sub connector (25 pins)
2
Flat ribbon cable connector (26 pins)
Applicable stations
02
For 2 stations manifold
04
For 4 stations manifold
06
For 6 stations manifold
08
For 8 stations manifold
10
For 10 stations manifold
Model and Dimensions
Symbol
Applicable size ød
A
L
øD
Weight (g)
Note
06
ø6
18
35
8
1
White
08
ø8
20.5
39
10
2
White
07
ø1/4”
18
35
8.5
1
Orange
09
ø5/16”
20.5
39
10
2
Orange
