-35-
No. ZK2-OM00201

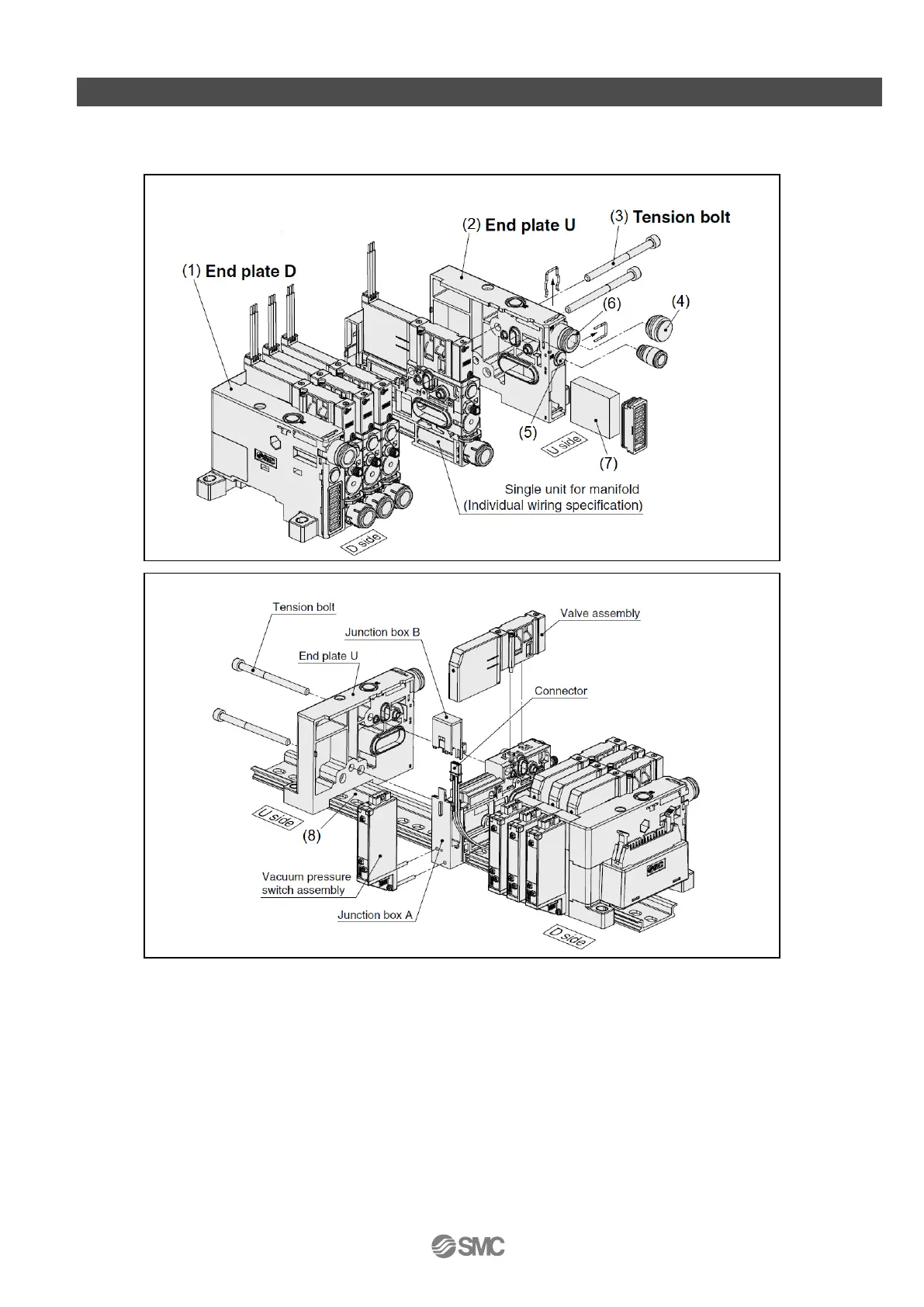

7. Exploded View of Manifold/Replacement Parts
7.1. Exploded View of Manifold
Individual wiring
Common wiring
7.2. How to Increase Manifold Stations
7.2.1 Individual wiring specifications
1) Remove two tension bolts.
2) Remove the end plate U. (Be careful not to drop the gasket.)
3) Mount a single unit to the end surface of U side. (Do not let the gasket get caught.)
4) Mount the end plate U with the appropriate length of tension bolts for the number of stations required.
(Tightening torque: 0.75 Nm)
