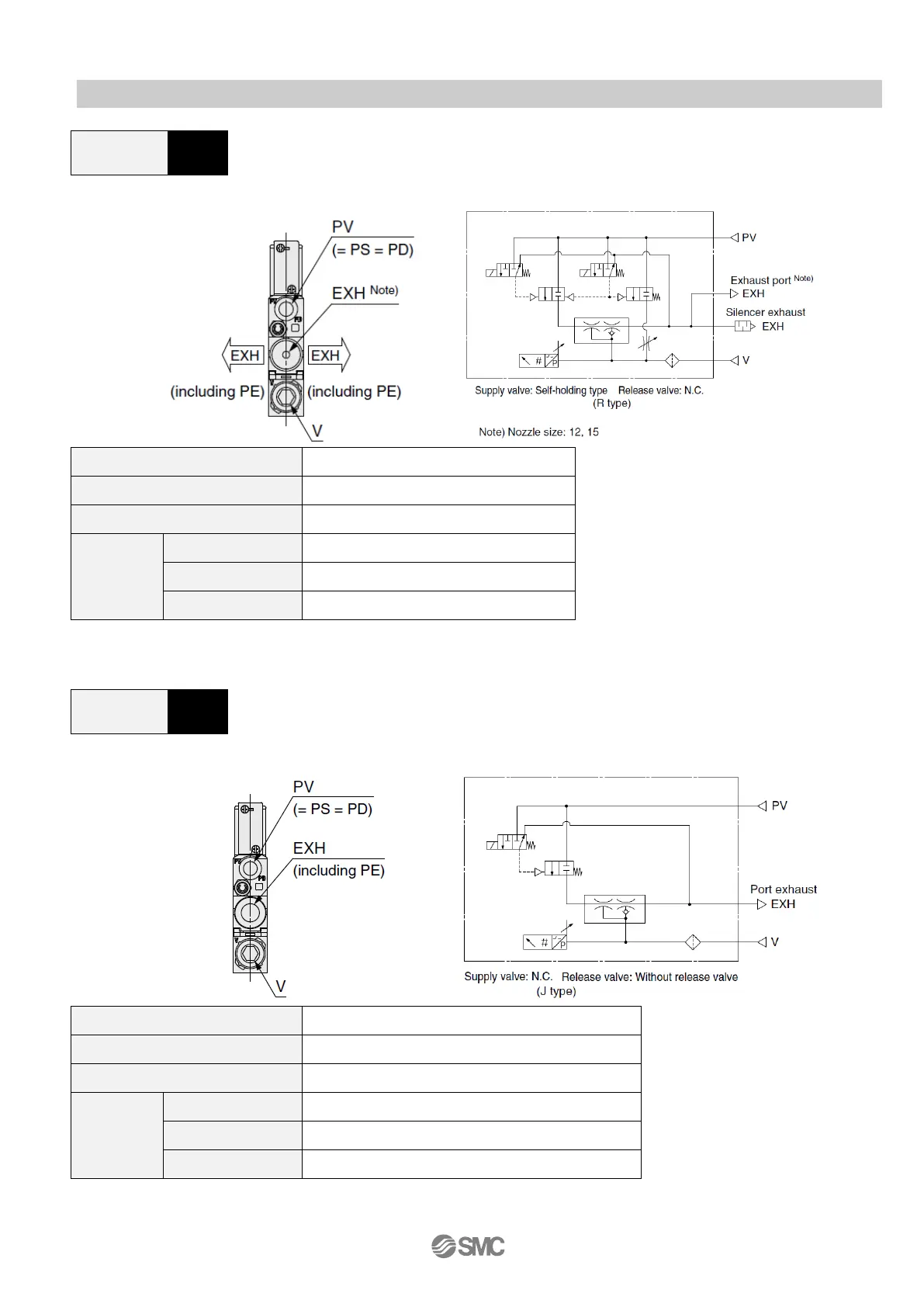

SMC Networks ZK2 Series - Port Layout No. 3; Port Layout No. 4

-53-
No. ZK2-OM00201
Single unit: ZK2A□□□□□□-□
Single unit: ZK2B□□□□□□-□
Port
Layout No.
3
Port
Layout No.
4
Port combination: PV = PS = PD
System
Ejector
Body type
Single unit
Exhaust type
Silencer exhaust
Application
and
purpose
Vacuum pressure
-
Exhaust
Released in operating environment
Release pressure
Same pressure as PV
Port combination: PV = PS = PD
System
Ejector
Body type
Single unit
Exhaust type
Port exhaust
Application
and
purpose
Vacuum pressure
-
Exhaust
After piping, individual exhaust is necessary.
Release pressure
Same pressure as PV
