Use and maintenance manual FP560 - FP560A - FP870A
17
Attention! Mount the two wheels A equipped with brakes at the front of the machine.

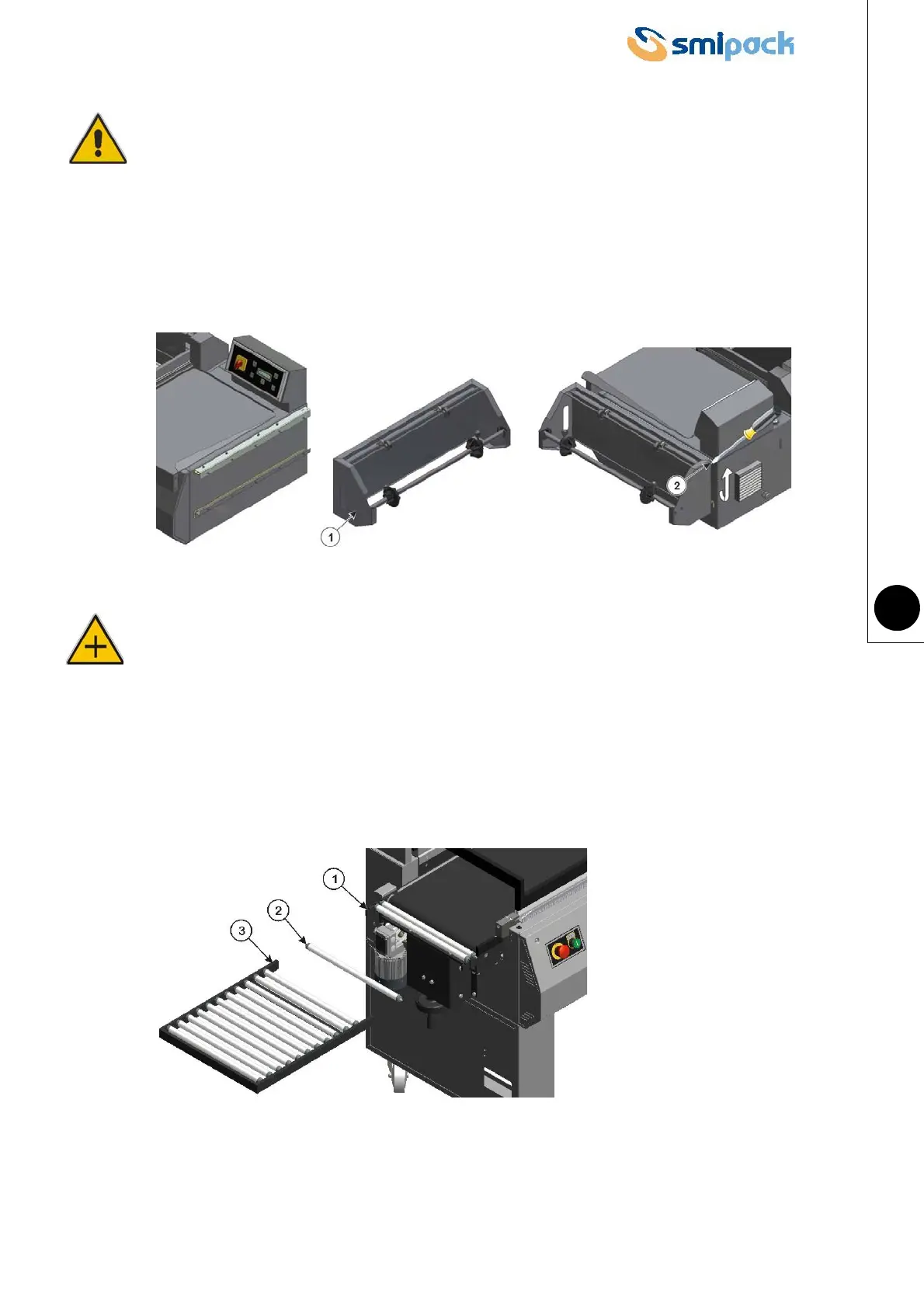

2) ASSEMBLY OF THE REEL HOLDER
• Put the reel holder support (1) in the relative guides.
• Use a screwdriver at point 2.
3) INSTALLATION OF THE ROLLER CONVEYOR
a) For models FP560 and FP560A :
• Insert the roller conveyor in the couplings 1 of the conveyor belt, securing it with the roller
2 in the relevant holes 3.
• During assembly and disassembly avoid pushing the roller conveyor sideways in order not
to damage its couplings.
b) For model FP870A :
• With screws 1 attach the roller conveyor to the pre-drilled holes on the machine as shown
in the figure.
