Use and maintenance manual FP560 - FP560A - FP870A
19
b) MOUNTING THE FILM SCRAP TRANSMISSION ROLLERS

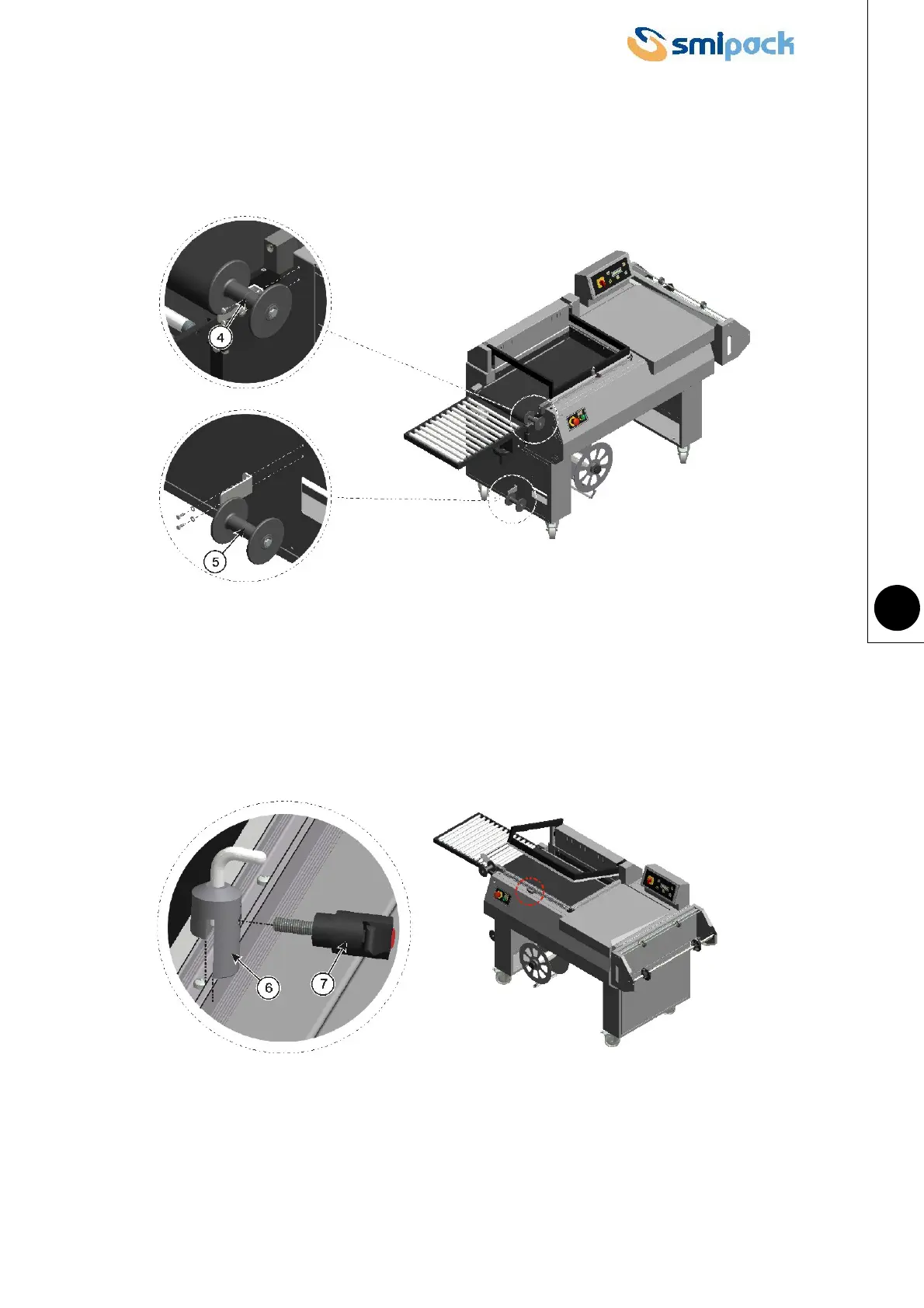

• Mount the two film scrap tensioning rollers 4 and 5 in the relevant pre-drilled holes on the
machine as indicated in the figure.
c) MOUNTING THE SCRAP GUIDE DEVICE
• Fit the device 6 which allows to guide the film scrap in the position shown in the figure and
secure it by tightening the knob 7.
d) ACTIVATING THE SCRAP COLLECTION DEVICE
• Connect the device electrically to the relevant socket 10 on the back of the machine. To
activate device operation press the switch indicated in the figure.
