9
Service

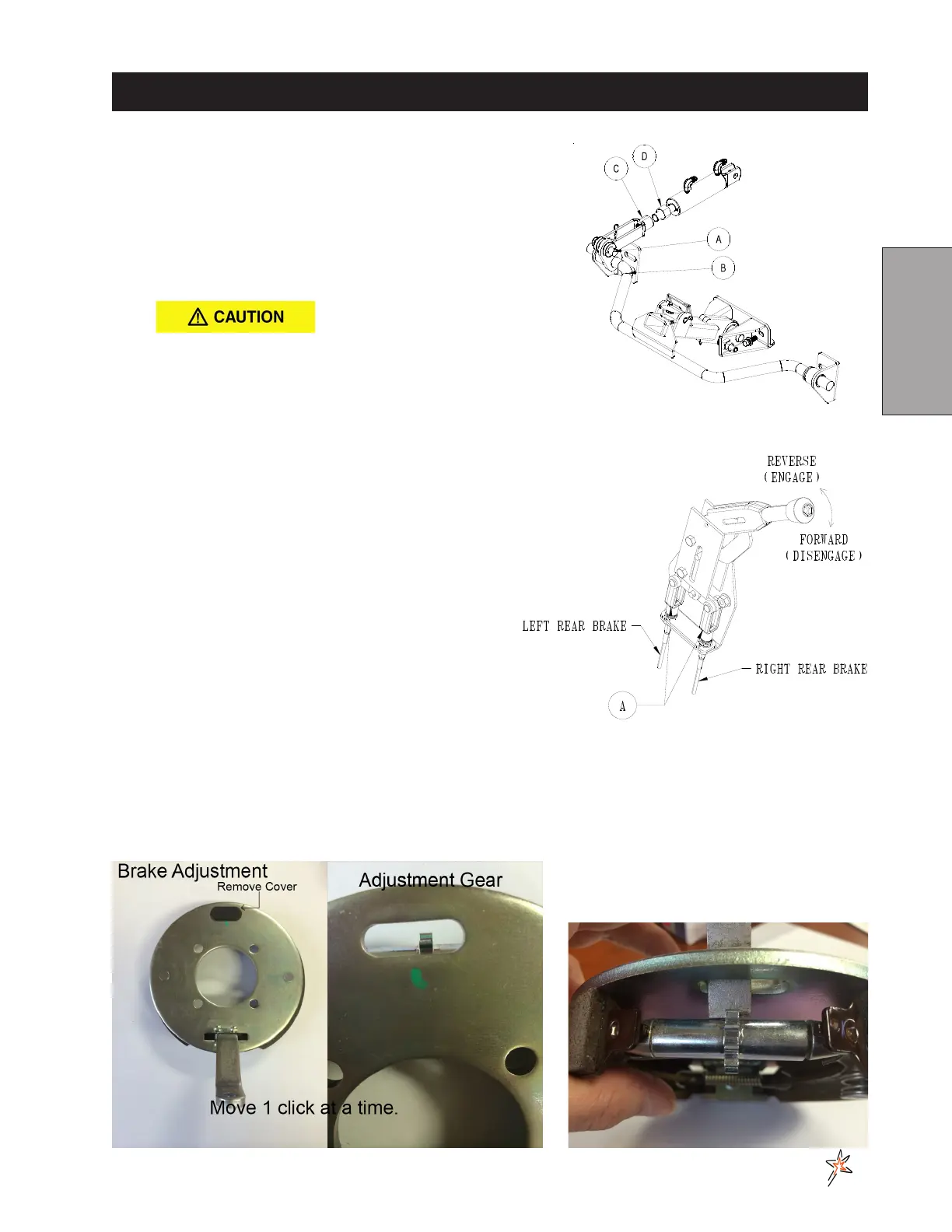

ADJUSTMENTS
RAKE LIFT CYLINDER
Completely lower Rake Lift� Remove the clevis pin (A)� Twist lift
linkage (C) so clevis pin end of cylinder extension lines up with
holes in attachment lift arm (B)� Replace clevis and cotter pins�
Tighten Jam Nut (D)� Raise and lower Rake Lift to check for
proper clearance�
quick hitch and will not move in full up position�
When the rear rake attachment is lowered while the ma-
chine is in forward motion, the forward speed of the ma-
chine will slow drastically� Operator should be prepared for
a rapid change in speed�
PARK BRAKE
The park brake is located on the left hand side of the
machine and operates both rear wheels� Pull lever back
to engage and push forward to disengage�
To adjust, turn the knob on the end of the handle�
DRUM BRAKE ADJUSTMENT
The brake can be adjusted through the access hole in
the backing plate� Remove the rubber plug from the
backing plate� Using a drum brake adjusting tool, or a
towards the axle shaft to expand the shoes,one click at a
time� Expand the shoes until slight contact is made with
the drum� It is highly recommended that you adjust 1 click at a time� Rotate the drum back and forth to insure
is used it will seat in� Test after each adjustment�
