B-17
Center Attachment

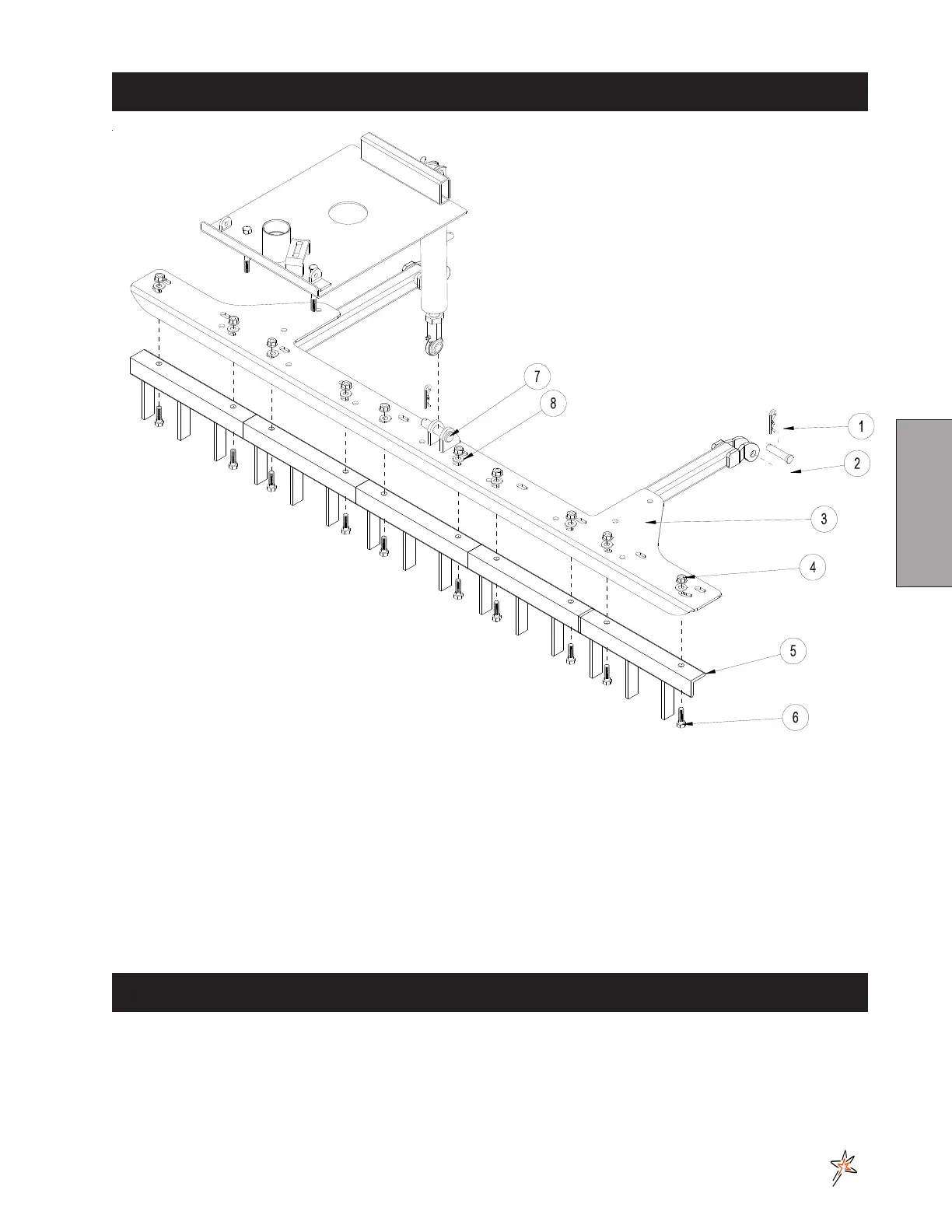

45-006 SAND CULTIVATOR DRAWING
REF# PART# DESCRIPTION QTY
1 HHP-18 Bridge Pin,
1
/
8
3
2 HCP-12-200 Clevis Pin,
1
/
2
x 2 2
3 45-184 Center Lift Bar 1
4 HNTL-38-16 Lock Nut,
3
/
8
- 16 10
5 42-038 Tine Segment 5
6 HB-38-16-100 Hex Bolt,
3
/
8
- 16 x 1 10
7 HCP-58-250 Clevis Pin,
5
/
8
x 2
1
/
2
1
INSTALLATION INSTRUCTIONS
1� Tine segments (Ref 5) should be bolted to the center lift bar (Ref 3)� Use the
3
/
8
- 16 x 1
bolt (Ref 6)
and lock nut (Ref 4)�
2� Attach the center lift bar to main frame using (Ref 1 and 2) clevis pin and bridge pin�
3� Lift center lift bar up or extend cylinder so rod end lines up with the holes on the center of the attach-
ment lift� Use clevis pin and bridge pin (Ref 7 and 1) to fasten
cylinder to sand cultivator�
4� Turn machine on and test for proper operation�
