Smithco 45-204-C - 45-390 Light Kit

56
Accessories

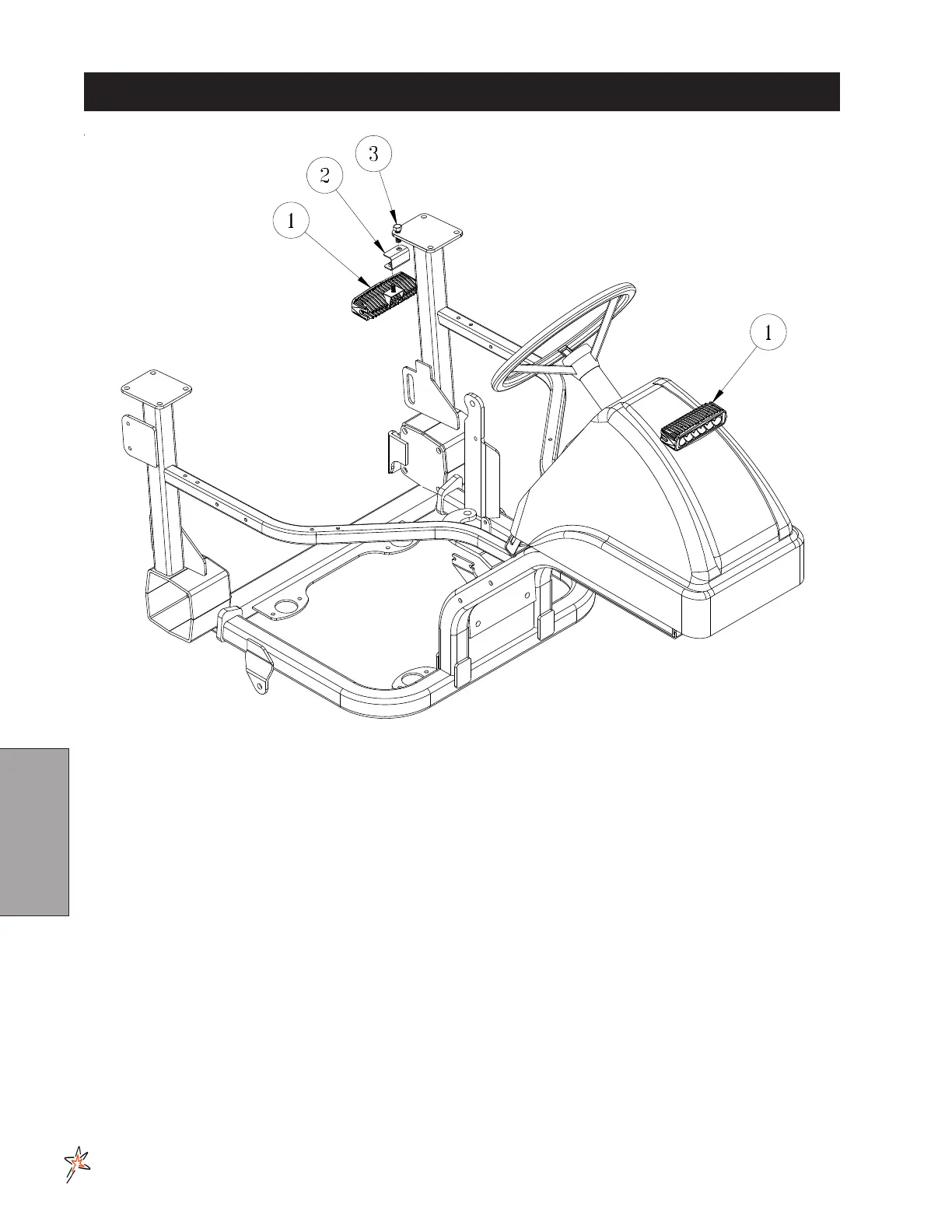

45-390 LIGHT KIT
REF# PART# DESCRIPTION QUANTITY
1 10-732 LED Light 2
45-393 Wire Harness 1
2 45-389 Rear Light Bracket 1
3 HB-716-14-125 Hex Bolt,
7
/
16
- 14 x 1
1
/
4
1
HNTL-716-14 Lock Nut,
7
/
16
- 14 1
1� Remove the nosecone from the machine�
2� Drill a Ø5/16" hole, centered and 3" down from the top of the nosecone� Drill another Ø5/16" hole 3/4"
further down�
3� Install Light Wire Harness on frame with sealed connector at left rear� Connect to main harness and
secure using included cable ties�
4� Run the wires through the lower hole� Bolt the light in the top hole� Connect to Light Wire Harness�
Replace nosecone�
5� Use the included
7
/
16
- 14 Hex Bolt and Lock Nut to mount the Rear Light Bracket to the underside of the
Roll Bar mounting plate�
6� Mount the Light to the Light Bracket� Connect wires to Light Wire Harness
7� Test lights�
