Smithco 45-204-C - 45-014 Weed Cultivator

B-16
Center Attachment

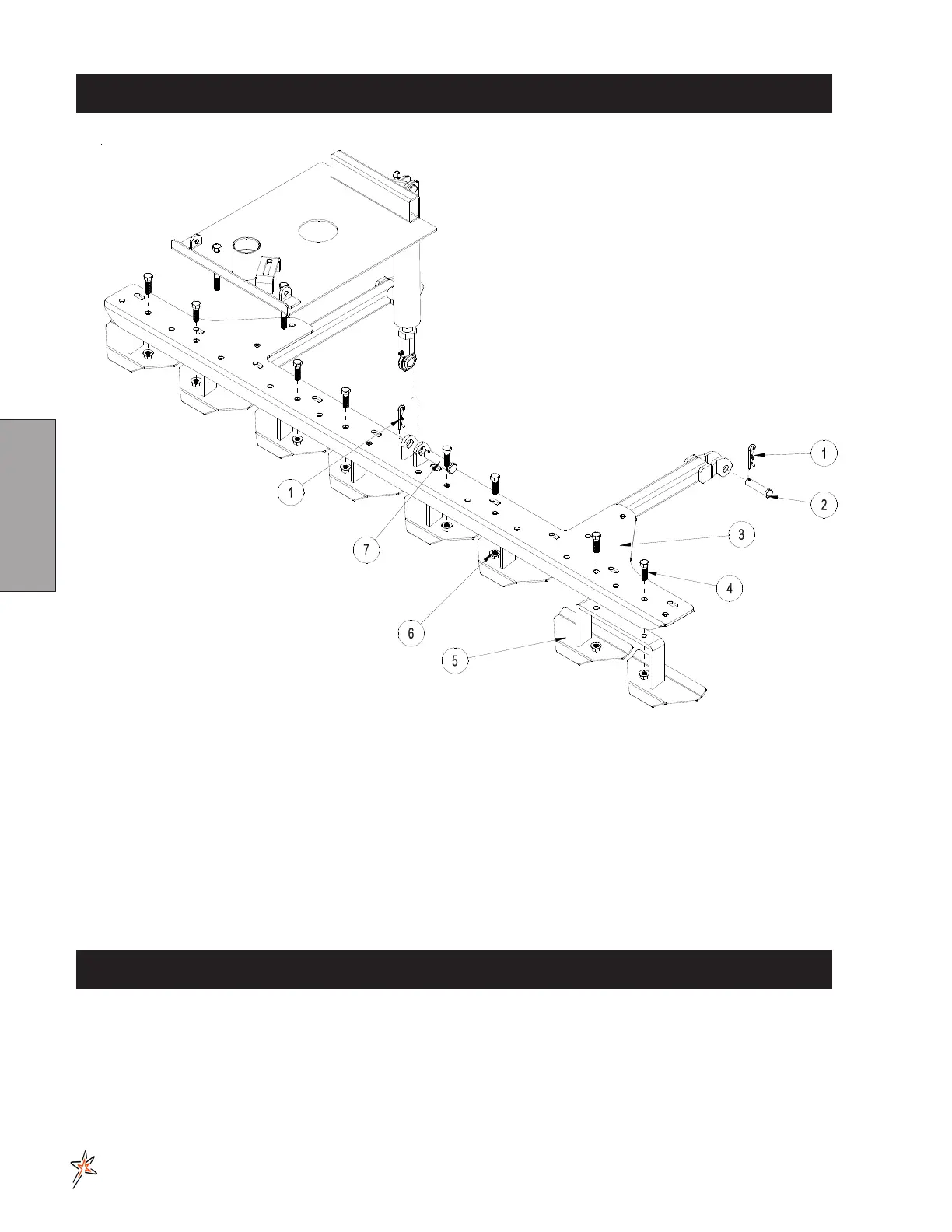

45-014 WEED CULTIVATOR
REF# PART # DESCRIPTION QUANTITY
1 HHP-18 Bridge Pin,
1
/
8
3
2 HCP-12-200 Clevis Pin,
1
/
2
x 2 2
3 45-185 Center Bar Lift 1
4 HB-38-16-125 Hex Bolt,
3
/
8
- 16 x 1
1
/
4
8
5 13-096 Blade Assembly 4
6 HNFL-38-16 Flange Whiz-Loc Nut,
3
/
8
- 16 8
7 HCP-58-250 Clevis Pin,
5
/
8
x 2
1
/
2
1I
INSTALLATION INSTRUCTIONS
1� Blade assemblies (Ref 5) should be bolted to the center lift bar (Ref 3)� Use the
3
/
8
- 16 x 1
1
/
4
bolt (Ref
4) and Flange Whiz-Loc nut (Ref 6)�
2� Attach the center lift bar to main frame using (Ref 1 and 2) clevis pin and bridge pin�
3� Lift center lift bar up or extend cylinder so rod end lines up with the holes on the center of the attach-
ment lift� Use clevis pin and bridge pin (Ref 7 and 1) to fasten cylinder to sand cultivator�
4� Turn machine on and test for proper operation�
