B-18
Center Attachment

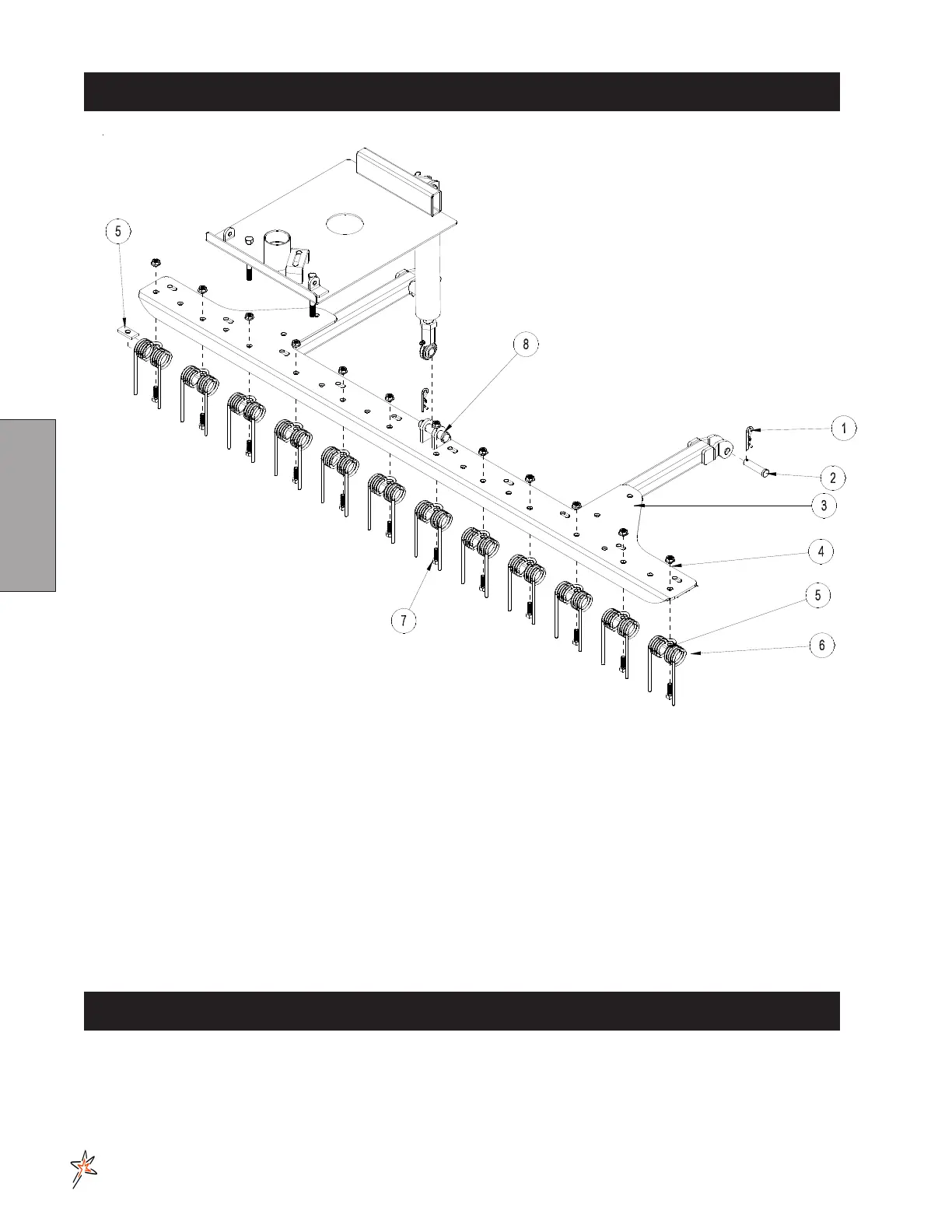

45-008 SAND CULTIVATOR WITH SPRING TINES
REF# PART# DESCRIPTION QUANTITY
1 HHP-18 Bridge Pin,
1
/
8
3
2 HCP-12-200 Clevis Pin, ½ x 2 2
3 45-185 Center Lift Bar 1
4 HNTL-516-18 Nylon Lock Nut,
5
/
16
- 18 12
5 42-177 Spring Holder 12
6 42-122 Rake Spring 12
7 HB-516-18-100 Hex Bolt,
5
/
16
- 18 x 1 12
8 HCP-58-250 Clevis Pin,
5
/
8
x 2½ 1
INSTALLATION INSTRUCTIONS
1� Springs (Ref 6) should be bolted to the center lift bar (Ref 3) with the spring holder (Ref 5) between
center lift bar and the spring� Bolt in place with
5
/
16
- 18 x 1 bolt (Ref 7) and lock nut (Ref 4)�
2� Attach the center lift bar to main frame using (Ref 1 and 2) clevis pin and bridge pin�
3� Lift center lift bar up or extend cylinder so rod end lines up with the holes on the center of the attach-
ment lift� Use clevis pin and bridge pin (Ref 8 and 1) to fasten
cylinder to sand cultivator�
4� Turn machine on and test for proper operation�
